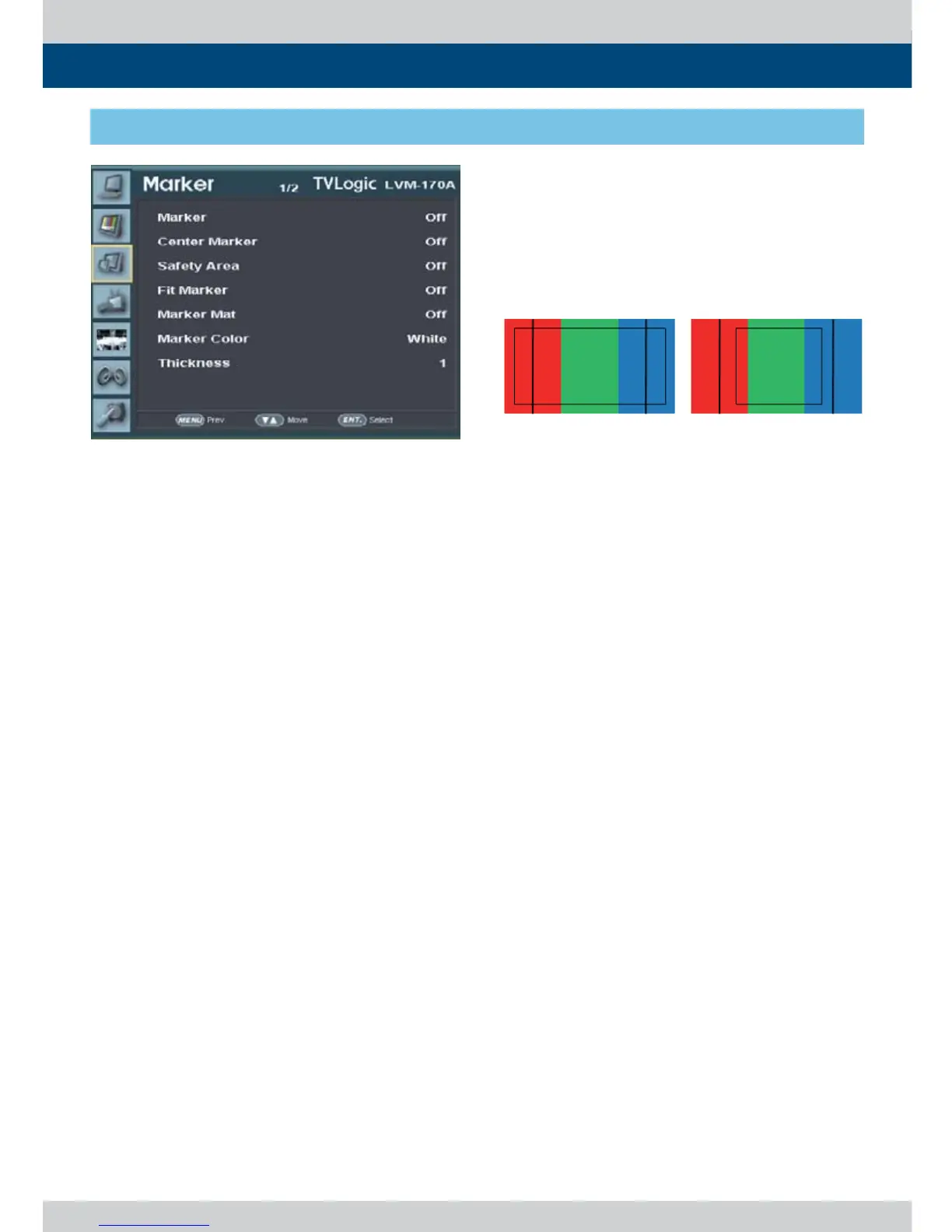

[3] MARKER
● Marker
- The item selects the marker type when the
MARKER is displayed on the screen.
- Marker may only be activated by pressing
the MARKER button on the front of the
monitor.
- Available marker types are OFF, 16:9, 4:3, 4:3
ON AIR, 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 &
4:3 and USER.
● Center Marker
- The item displays the CENTER MARKER on
the screen.
- The function operates only after activating
the MARKER function by pressing the
MARKER button on the front of the monitor.
● Safety Area
- The item controls the size of the SAFETY
AREA.
- Available types are 80%, 85%, 88%, 90%,
93%, 100%, EBU ACTION 16:9, EBU GRAPHIC
16:9, EBU ACTION 14:9, EBU GRAPHIC 14:9,
EBU ACTION 4:3, EBU GRAPHIC 4:3.
- The function operates only after activating
the MARKER function by pressing the
MARKER button on the front of the monitor.
5. Menu Operations
● Fit Marker
- The item activates the FIT MARKER function.
- With FIT MARKER On the safety area is
displayed relative to the marker in use.
With FIT MARKER O the safety area is
displayed relative to the incoming source.
- FIT MARKER acts as below:
● Marker Mat
- The item darkens the area of the outside of
MARKER.
- The degrees of darkness are between O ~ 7.
- Larger value means darker the marker mat is.
● Marer Color
- The item controls the color of the MARKER
lines.
- Available colors are white, gray, black, red,
green and blue.
● Marker Thickness
- The item controls the thickness of the
MARKER lines.
- The degrees of thickness are between 1 ~ 7.
● MARKER : 4:3
● SAFETY AREA : 90%
● FIT MARKER : OFF
● MARKER : 4:3
● SAFETY AREA : 90%
● FIT MARKER : ON

TVLogic LVM-170A Specifications

General

Brand	TVLogic
Model	LVM-170A
Category	Monitor
Language	English
