6. For locating and reassembling the rear wheel
easily, engage the gear. This will arrest the free
movement of the drum sprocket.
7. Reverse the procedure for reassembly.
Once the split pins are removed, replace them with new
ones.
REAR WHEEL REMOVAL AND REASSEMBLY -
DRUM TYPE

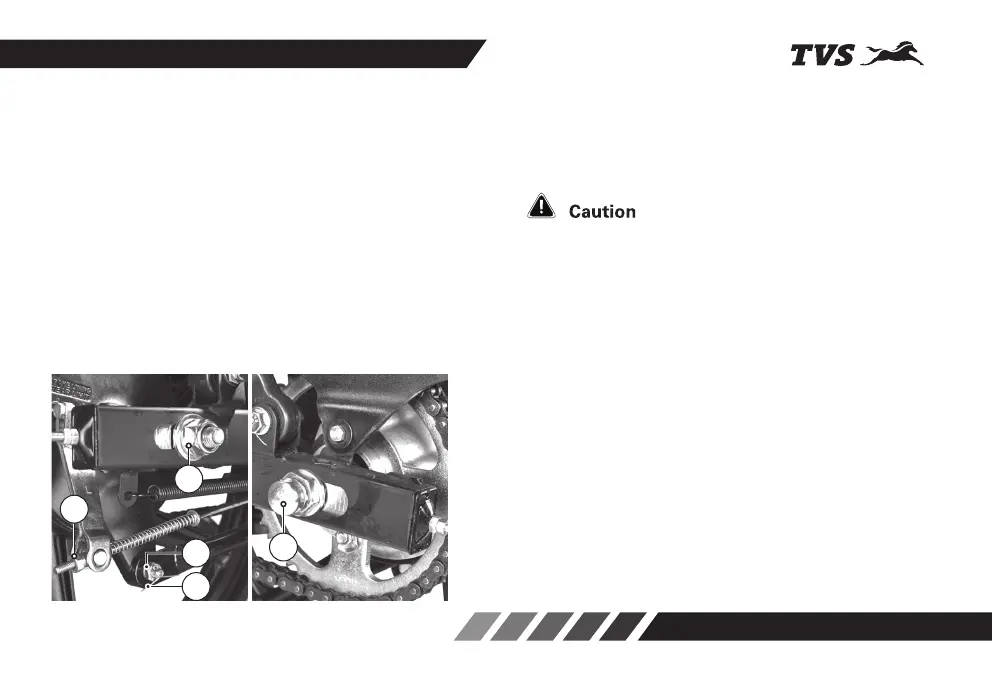

1. Remove the rear brake adjuster nut (1) and
disconnect the brake rod.
2. Remove the split pin (2) and the nut (3) from the
torque link mounting with the brake panel and
disconnect the torque link.
3. Remove the axle nut (4).
4. Pull out the axle (5) and take out the spacer bush
from the rear wheel assembly.
5. Tilt the vehicle to the left and take out the wheel
assembly along with brake panel. Separate the
brake panel from the wheel.
5
1
4
2
3
