Rebar Scanner A60+
34
column etc.) or the top rebar (for plate and wall of grid pattern rebar)
to determine the position of main rebar or top rebar. Then move the
certain distance horizontally to carry out another scanning as figure
5.1 shows. Points scanned twice are connected together by means of
straight line. Notice: If scanning line is just above the stirrups or lower
rebar as figure 5.2 shows, the condition that rebar is not found or rebar
position is not determined accurately will occur possibly. The
phenomenon is determination deviation of rebar position is larger
during repeating scanning. At this time, this scanning line should be
shifted the distance of two rebar diameters for scanning again.

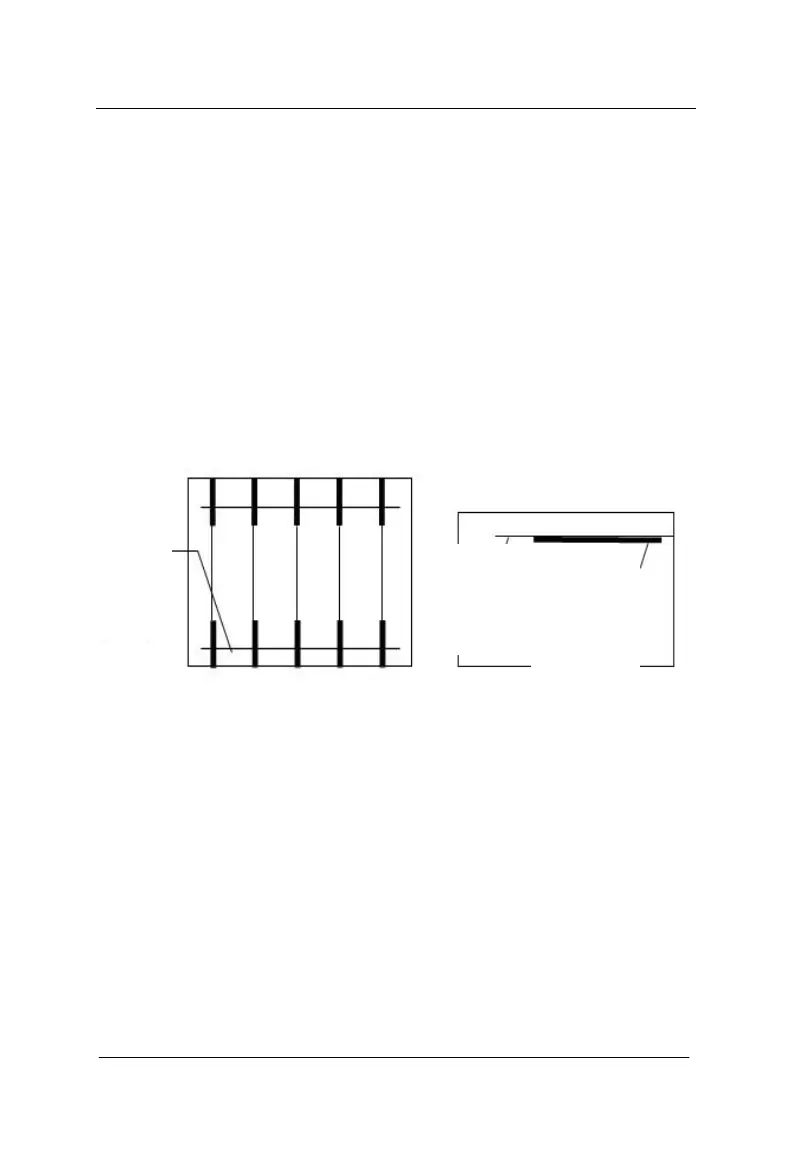

Figure 5-1 Figures 5-2
Step 4 Determine the position of stirrups (or lower rebar)
Carry out scanning along the direction that is vertical to stirrups
(or lower rebar) in the middle position of determined two pieces of
rebar to determine the position of stirrups (or lower rebar). Then select
the middle position of another two pieces of rebar to scan it as figure
5.3 shows. Points scanned twice are connected together by means of
straight line.
Scanning
line
Scanning
line
Stirrups or
lower rebar
