6.3 List of Microphones
Designation Inspired by
Dynamic 57 Dynamic microphone Shure™ SM57
Dynamic 421 Dynamic microphone Sennheiser™ MD421
Knightfall Condenser microphone Blue™ Dragonfly
Condenser 87 Condenser microphone Neumann™ U87
Ribbon160 Ribbon microphone Beyerdynamic™ M160N
Ribbon121 Ribbon microphone Royer™ R121
Bass 20 Dynamic microphonee Electrovoice™ RE20
Bass 5 Dynamic microphone Shure™ Beta52

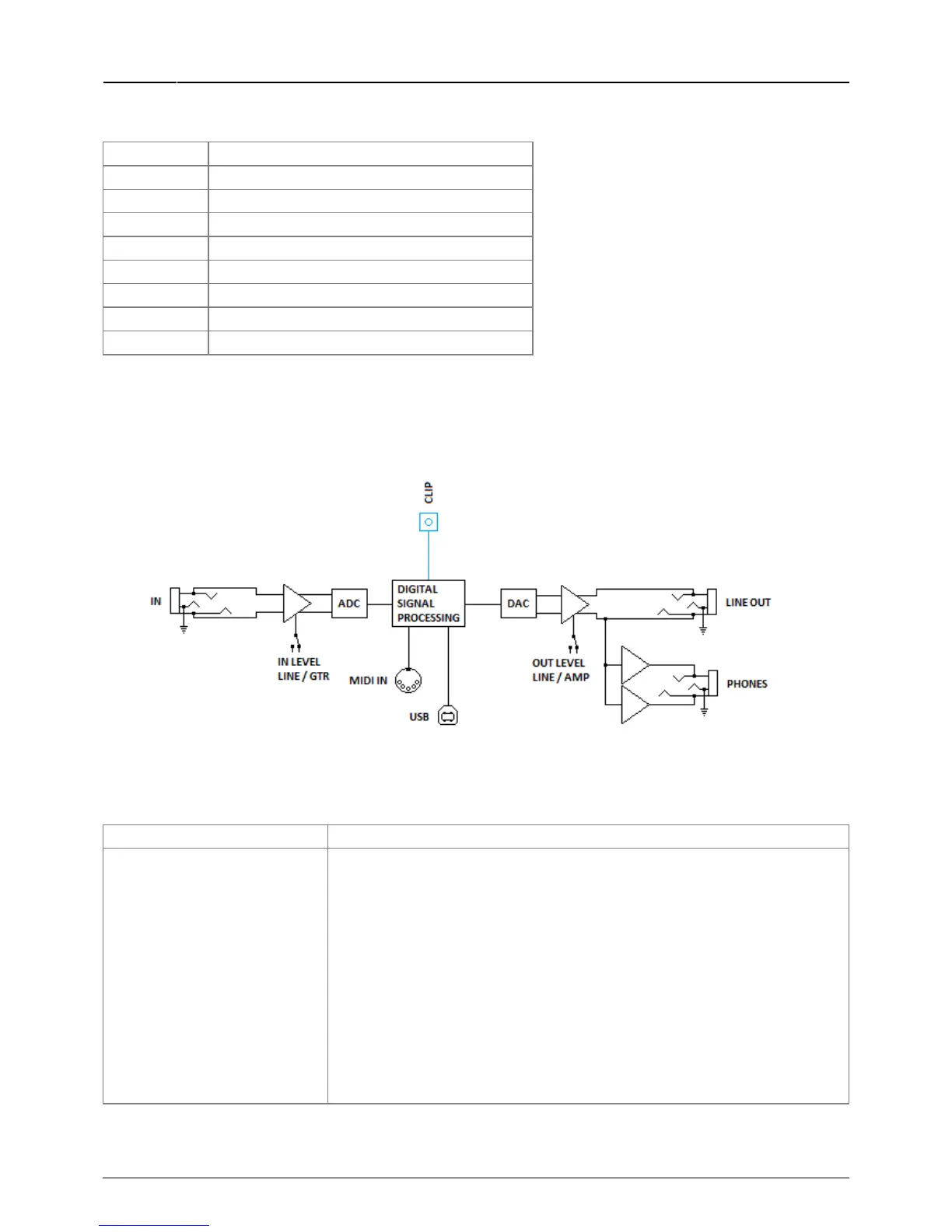

6.4 Block diagram
6.5 Technical Data
Designation Characteristics
GTR/LINE Input
Jack 6.35mm (1/4”) balanced (TRS, Tip/Ring/Sleeve). We recommend
the use of a TS jack cable if the output of the product you plug into the
Torpedo C.A.B. is unbalanced.
IN LEVEL switch sets level and impedance of the input.
GTR:
• Maximum input level: 4.7 dBu
• Impedance: 100 KOhms
LINE:
• Maximum input level: 10.3 dBu
• Impedance: 10 KOhms
