5.5 Technical Data

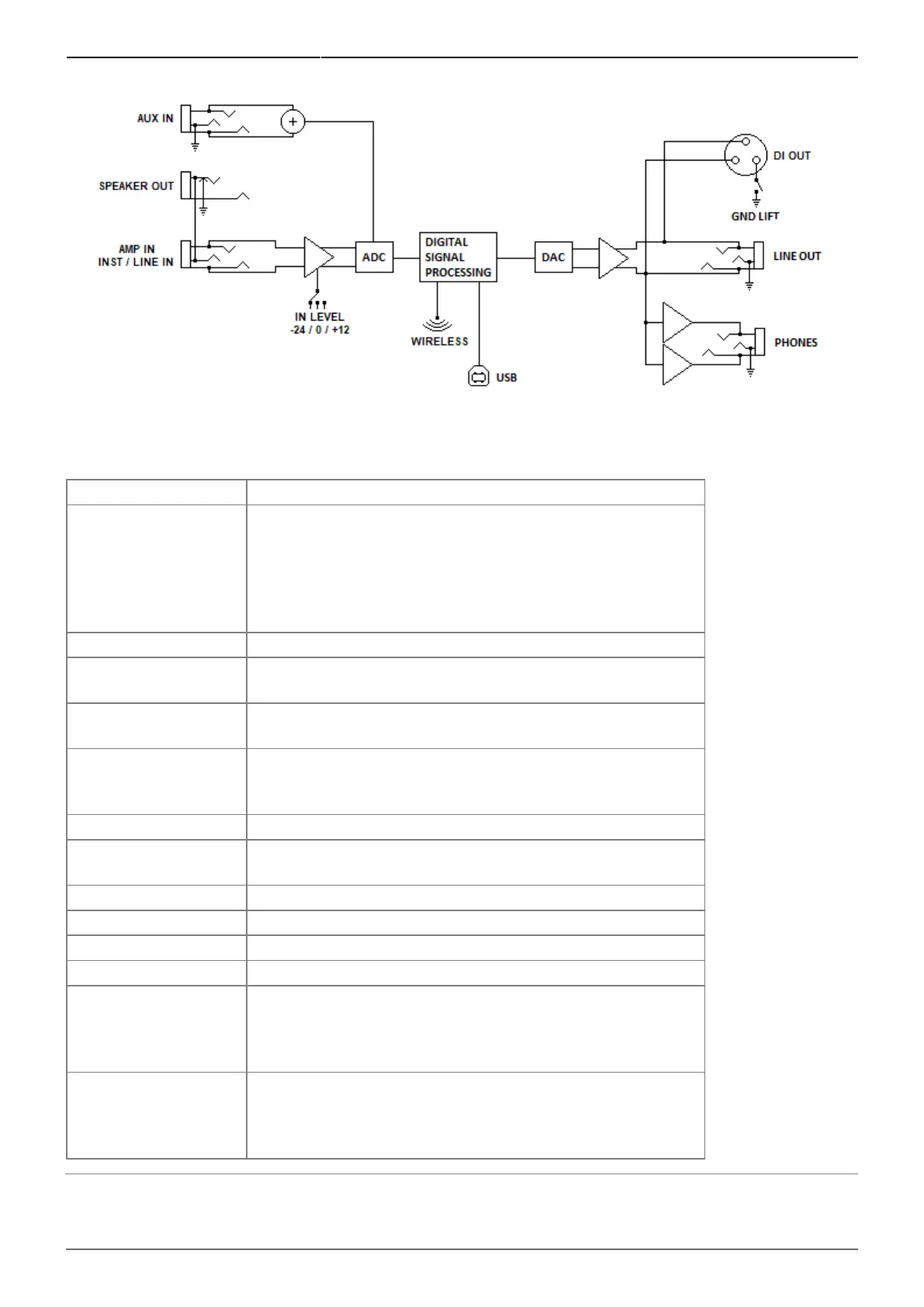

Designation Characteristics
AMP / INST / LINE IN
6.35mm (1/4 in) Jack balanced (TRS, Tip/Ring/Sleeve)
IN LEVEL switch affects input sensitivity and impedance:
+12dB: Max level: 4 dBu, Impedance: 1 MOhms
0dB: Max level: 16 dBu, Impedance: 57 kOhms
-24dB: Max level: 40 dBu, Impedance: 47 KOhms
AUX IN 3.5 mm (miniature) Jack stereo (TRS), downmixed to mono
SPEAKER OUT
6.35mm (1/4 in) Jack unbalanced (TS)
Unprocessed, unbuffered, directly connected to AMP IN
LINE OUT
6.35mm (1/4 in) Jack balanced (TRS)
Max level: 10 dBu, Impedance : 300 Ohms
DI OUT
XLR balanced
Max level: 10 dBu, Impedance: 300 Ohms
Protected against +48V phantom power
Headphones Output 3.5 mm (miniature) Jack stereo (TRS)
ADC/DAC
Sampling frequency: 96 kHz
Resolution: 24 bits
Frequency response 30 Hz - 19 kHz
Min Latency 2.2 ms (LINE IN to LINE OUT)
THD+N ratio 0.03% (IN LEVEL 0dB, sine wave 1kHz 4dBu)
SNR 91dB
Power supply
Mains power adaptor DC Jack 2.1mm, negative center
Input voltage: 12V DC
Power: approx. 2 W
Current draw: 140mA typical, 200mA max
Dimensions
Width: 100mm including connectors
Depth: 121mm
Height: 60mm including knobs
Weight: 450 g
