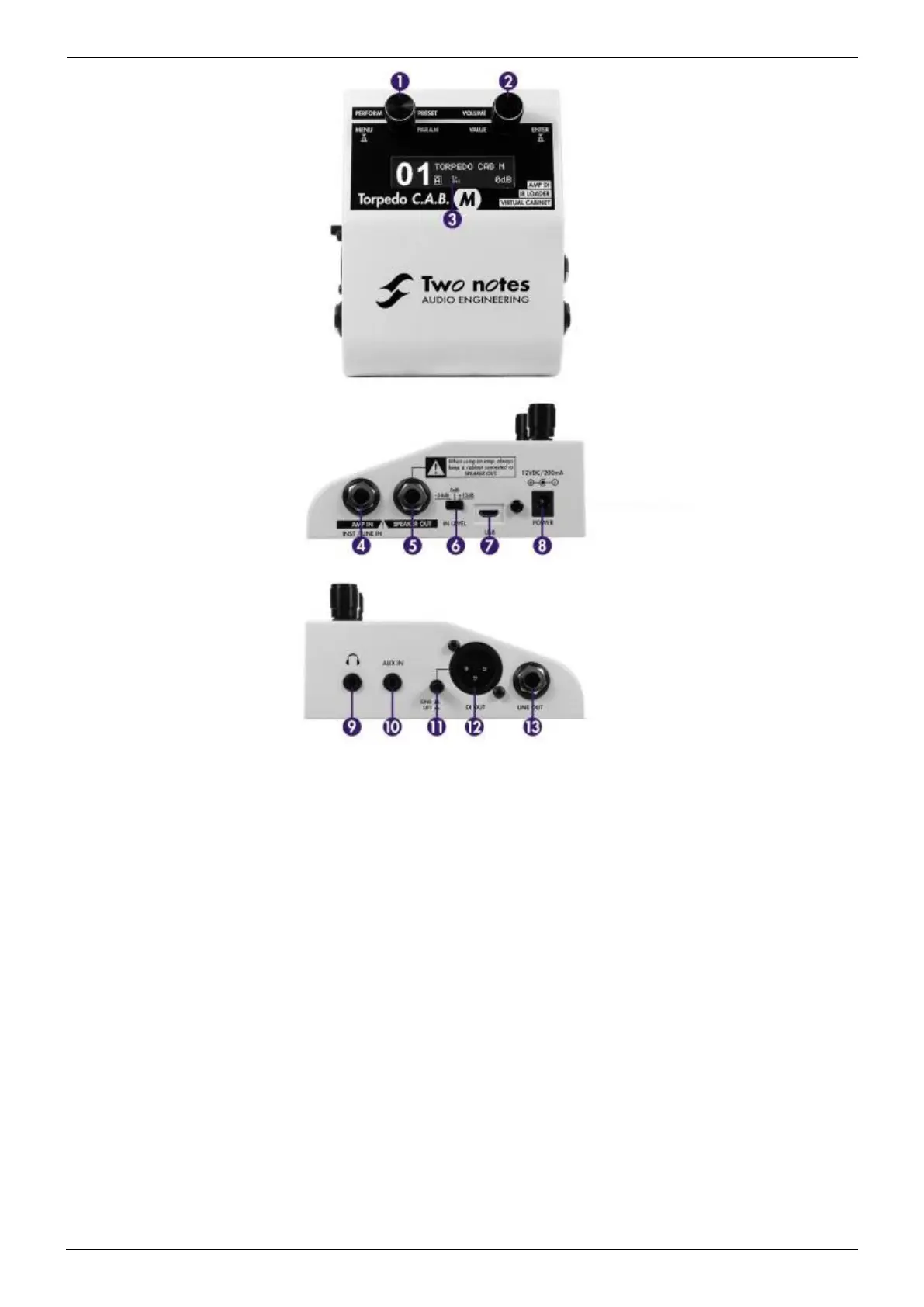

1- Parameter/Preset Encoder
2- Value/Volume Encoder
3- OLED display screen
4- Amp/Instrument/Line input
5- Speaker Output (Warning! When an amp is connected to the AMP input, the related cabinet has to
be connected to the Speaker Output of the pedal!)
6- Input level selector
7- USB for Remote application
8- Mains power adapter connector
9- Headphones output
10- Auxiliary input
11- Ground lift switch
12- Balanced XLR DI output
13- Balanced TRS jack output
