Two Notes Torpedo Captor - Block Diagram

2017/10/27 04:35 19/21 Torpedo Captor User's Manual
User's manuals - http://wiki.two-notes.com/
Designation Inspired by
Tanger Fat
PPC412HP© 4×12 Orange® with Celestion® Heritage G12H (55Hz) and Celestion©
G12M Heritage Greenback
Burn It Brunetti® Dual Cab XL 2×12 half back with Eminence® The Governor
Recto Over Mesa Rectifier 4 x12 Cabinet. Equipped with a Celestion® Vintage 30
BigBabyK100 Zilla® FatBaby, 1×12 Closed Back, 8 Ohms. Equipped with a Celestion® G12K-100
StudioZG12H
Zilla® Studio Pro, 2×12 Closed Back. Equipped with a 16ohm Vintage 30 and G12H
Creamback 75
BrownyBack
4×12 perfect for the Eddie Van Halen “Brown Sound”, equiped with Celestion®
Greenbacks
Brit 1935
Marshall® 4×12, dating from 1971. Equiped with the original Celestion® “Rola”
speakers
Fried30
Friedman® 4×12 Vntage equiped with Celestion® G12M25 and V30. Close Mic’ing
done infront of the v30’s
Ferret Suhr® Badger 2×12” OB equiped with Warehouse® Veteran30
BoGreen Bogner® 4×12 equiped with Greenbacks G12M25 Reissue at 16ohms
BASS cabinets
Fridge 9 Ampeg® V.9 - 9×10“
New York Markbass® 4×6” equiped with 4×6″ Neodymium speakers custom made by B&C®
WGrandBlvd Ampeg® B15N 1×15” CB equiped with Jensen® C15N, Vintage Ceramic Speaker
Fat Mama Ampeg® SVT-410HE 4×10 equiped with Eminence® Speakers
6.3 List of Microphones (available through Wall of Sound)
Designation Inspired by
Dynamic 57 Dynamic microphone Shure™ SM57
Dynamic 421 Dynamic microphone Sennheiser™ MD421
Knightfall Condenser microphone Blue™ Dragonfly
Condenser 87 Condenser microphone Neumann™ U87
Ribbon160 Ribbon microphone Beyerdynamic™ M160N
Ribbon121 Ribbon microphone Royer™ R121
Bass 20 Dynamic microphonee Electrovoice™ RE20
Bass 5 Dynamic microphone Shure™ Beta52

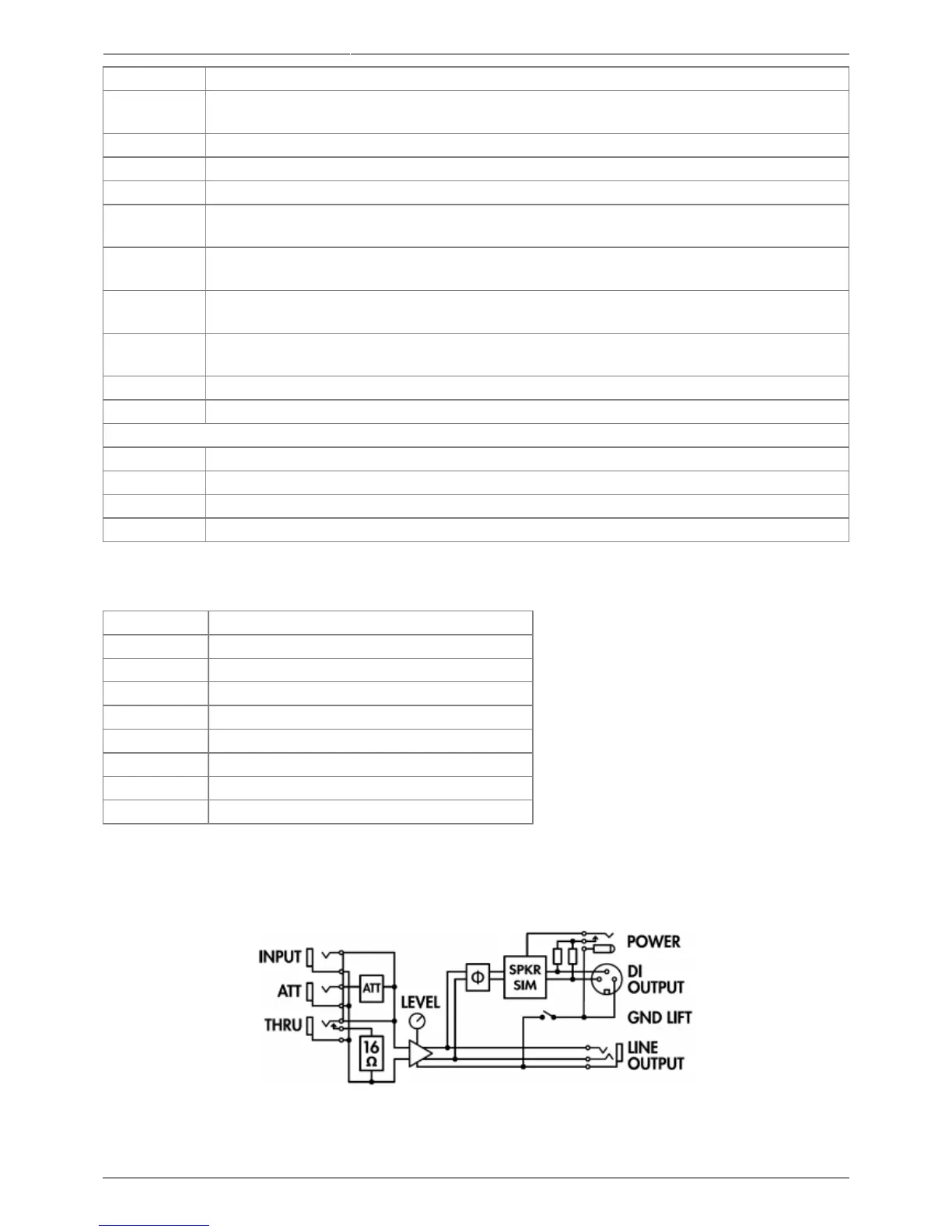

6.4 Block Diagram
16 ohms version shows. The 4 and 8 ohms version have a 4 and 8 ohms loadbox, respectively, in
place of the 16 ohms loadbox.
