9
Step 4
-X-axis stepper motor*1
-Cup head M3X6 screws*4
-Coupling*1
-2.0 hexagonal wrench
Required parts

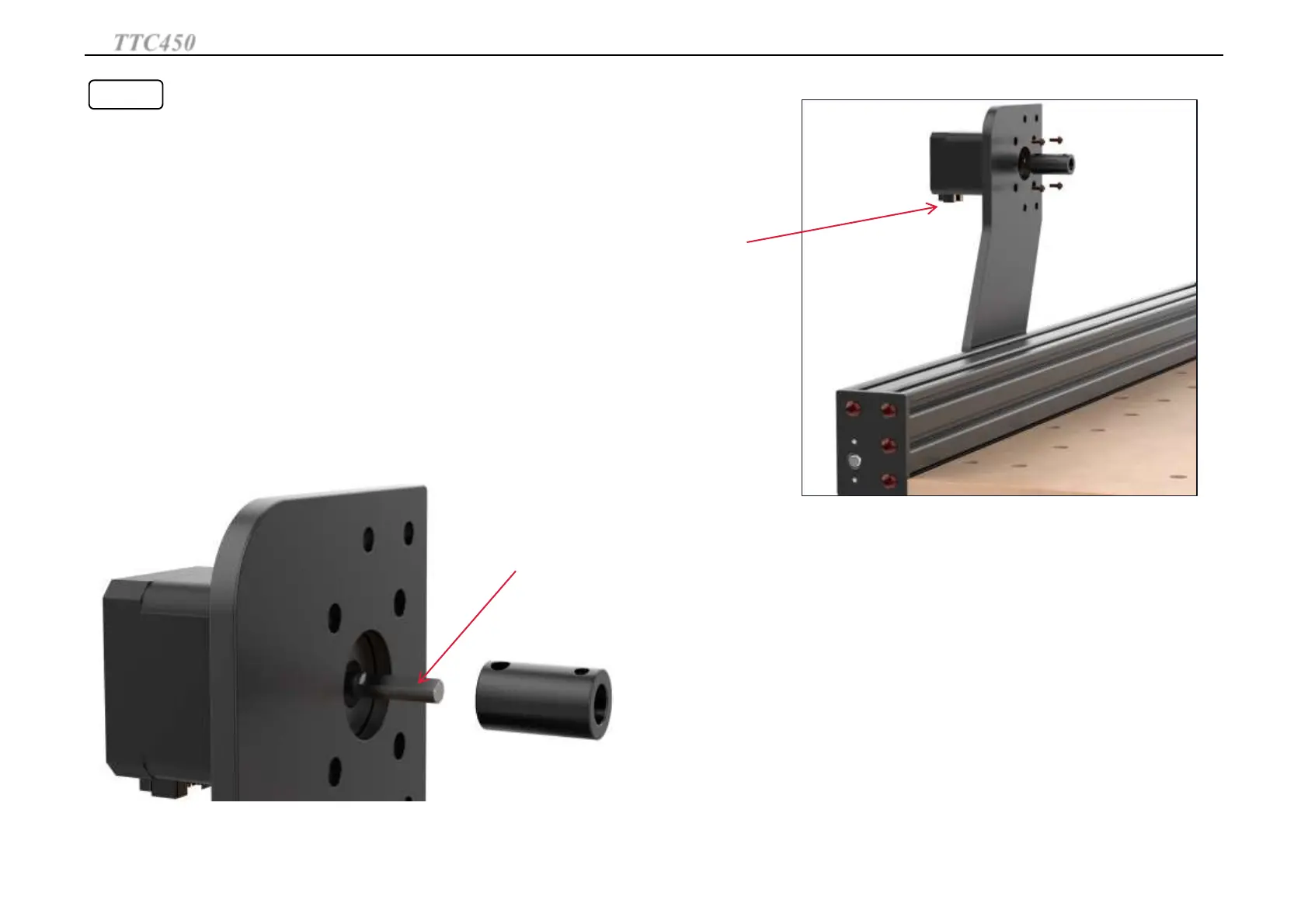

Left Y-axis assembly into the stepper motor, note
that the motor wiring port facing down
Coupling sleeve into the motor shaft, headless
hexagon thread pressed into the motor shaft flat
side
X-axis motor installation
TTC450
Set up TTC450
