Step 6
-X-axis assembly*1
-M5X15 screws*4
-2.0 hexagonal wrench
-3.0 hexagonal wrench
Required parts

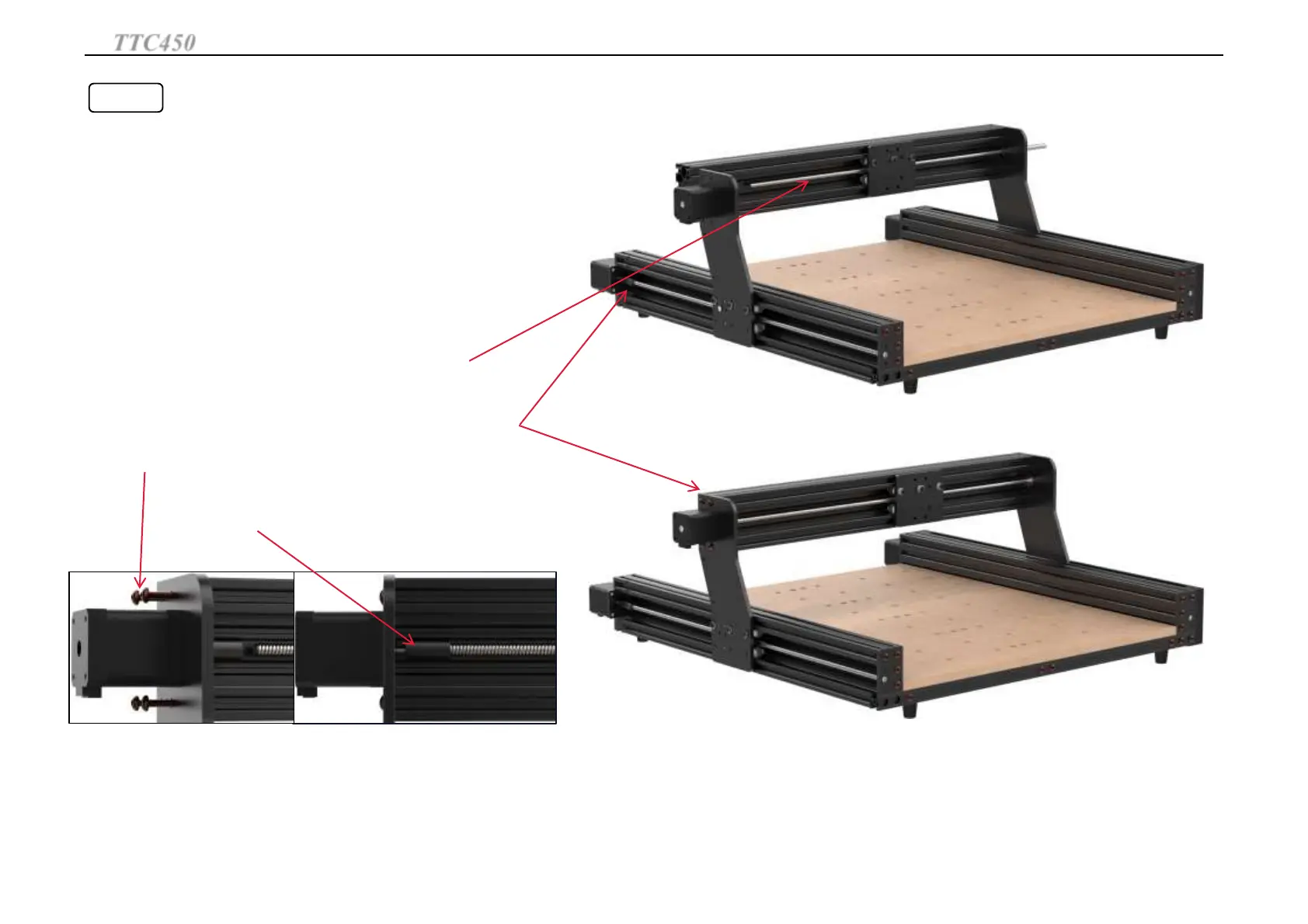

①Push the X-axis carriage to the left and expose the screw about 5cm
②Manually turn the left Y-axis to align the left and right Y-axis
③M5X15 lock the right side of X-axis profile
④Push the X-axis carriage to the right, insert the screw into the
coupling, and hold the screw by the headless hexagon thread
X-axis installation
TTC450
Set up TTC450
11
