TWO TREES TTC450 - Page 14

Step 7
-M5X20 cup head screws*4
-Z-axis assembly*1
-2.0 hexagonal wrench
-4.0 hexagonal wrench
Required parts

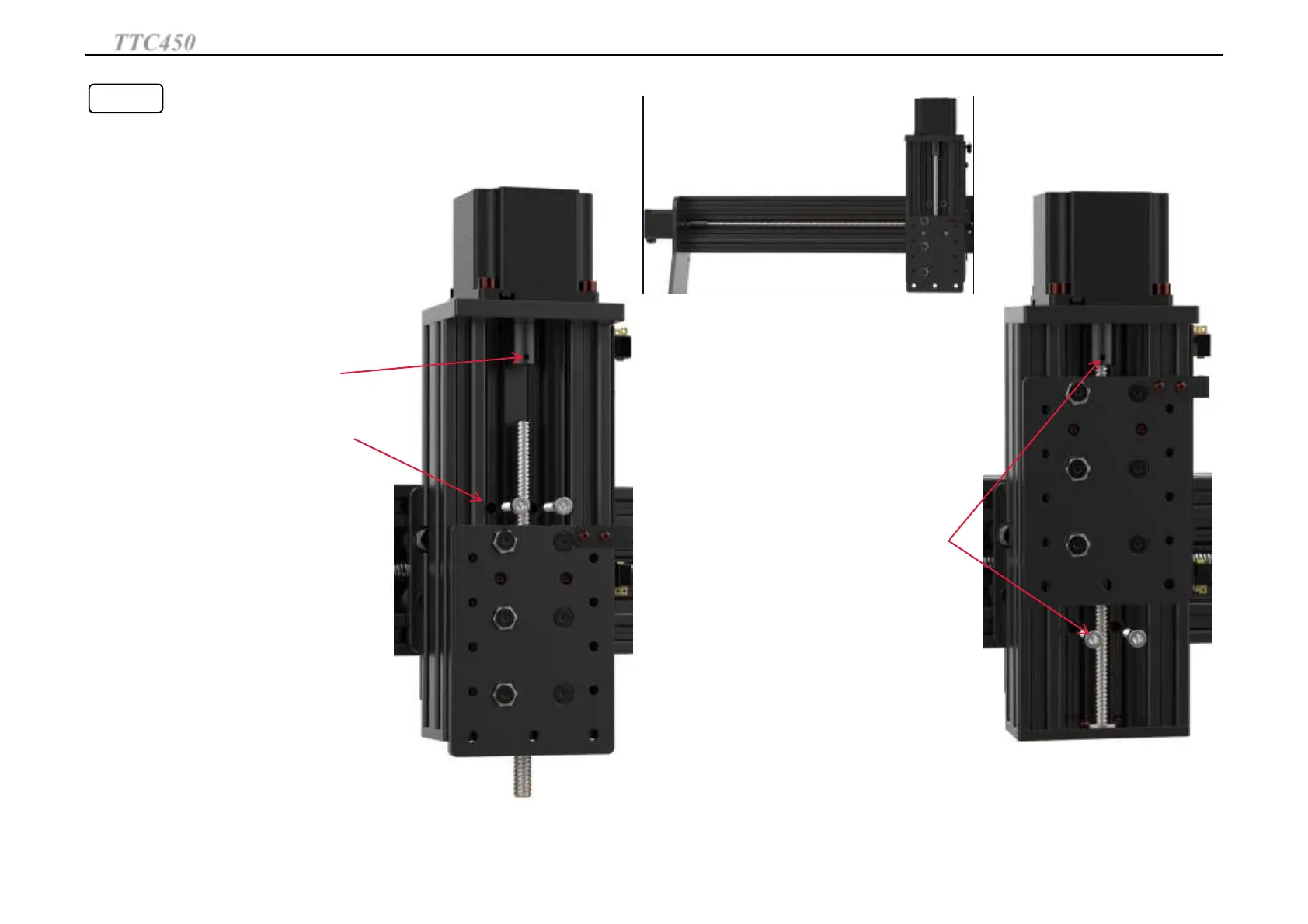

2.0 hexagonal wrench loosen the two
headless hexagon thread of the
coupling.
The carriage moves down to reveal the
screw hole and lock the screw
Move the carriage up to expose the
screw hole, lock the screw.Insert the
screw back into the coupling after the
headless hexagon thread top tighten
the screw
Z-axis installation
TTC450
Set up TTC450
12
