Step 12
-M3X5 screws*2
-M5X6 screws*2
-T-nut 20-M5*2
-Mainboard fixing piece*2
-2.0 hexagonal wrench
-3.0 hexagonal wrench
Required parts

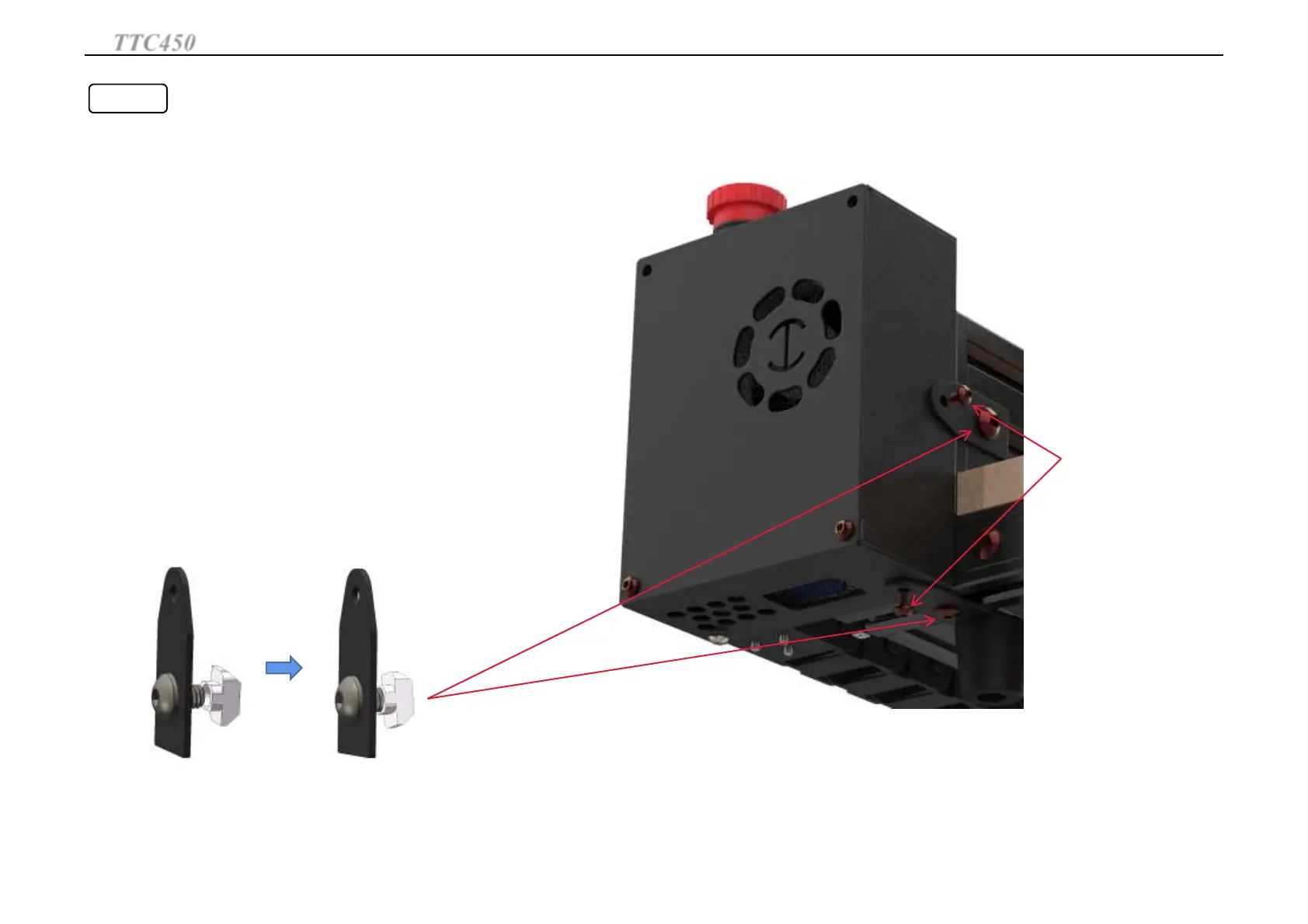

Control box installation
First, screw the M5X6 screw through the motherboard fixing piece and
then screw in the T-nut.
Insert it into the profile slot and tighten it slightly. Lock M3X5 screw
first and then tighten M5X6 screw.
M3X5 screws
TTC450
Set up TTC450
17
