Step 13
-M3X5 screw*1
-Cuphead M3X40 screws*2
-Left Y-axis guard*1
-2.0 hexagonal wrench
-2.5 hexagonal wrench
Required parts

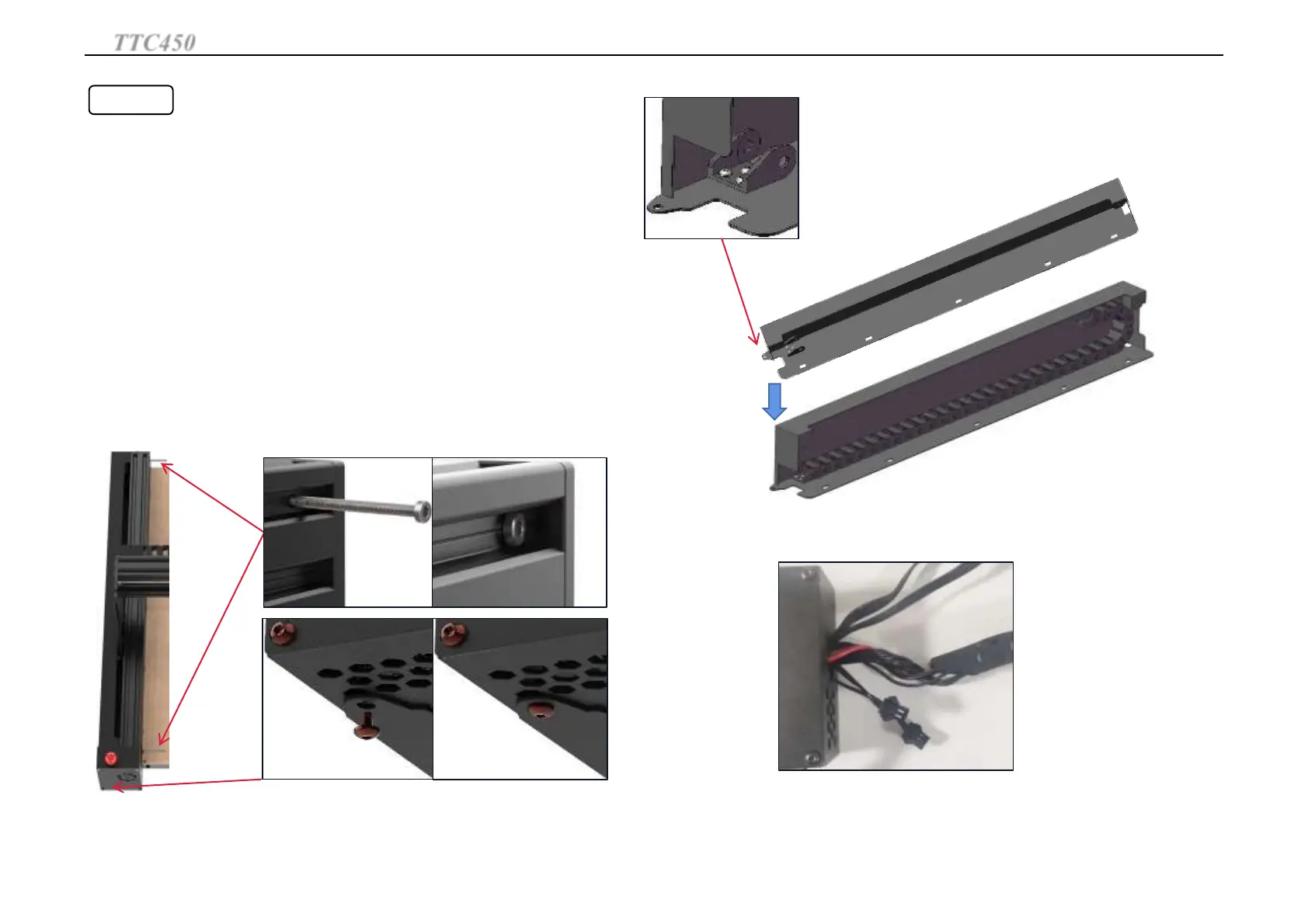

Y-axis guard and drag chain installation
① first Y-axis limit switch connected to the control box terminals to plug the
wireless sequence requirements
②Snap the drag chain of one end of the control box into the left Y-axis guard plate.
③M3X40 screws are locked through the profile.
④M3X5 screws lock the control box and the guard plate.
③
④
①
②
TTC450
Set up TTC450
18
