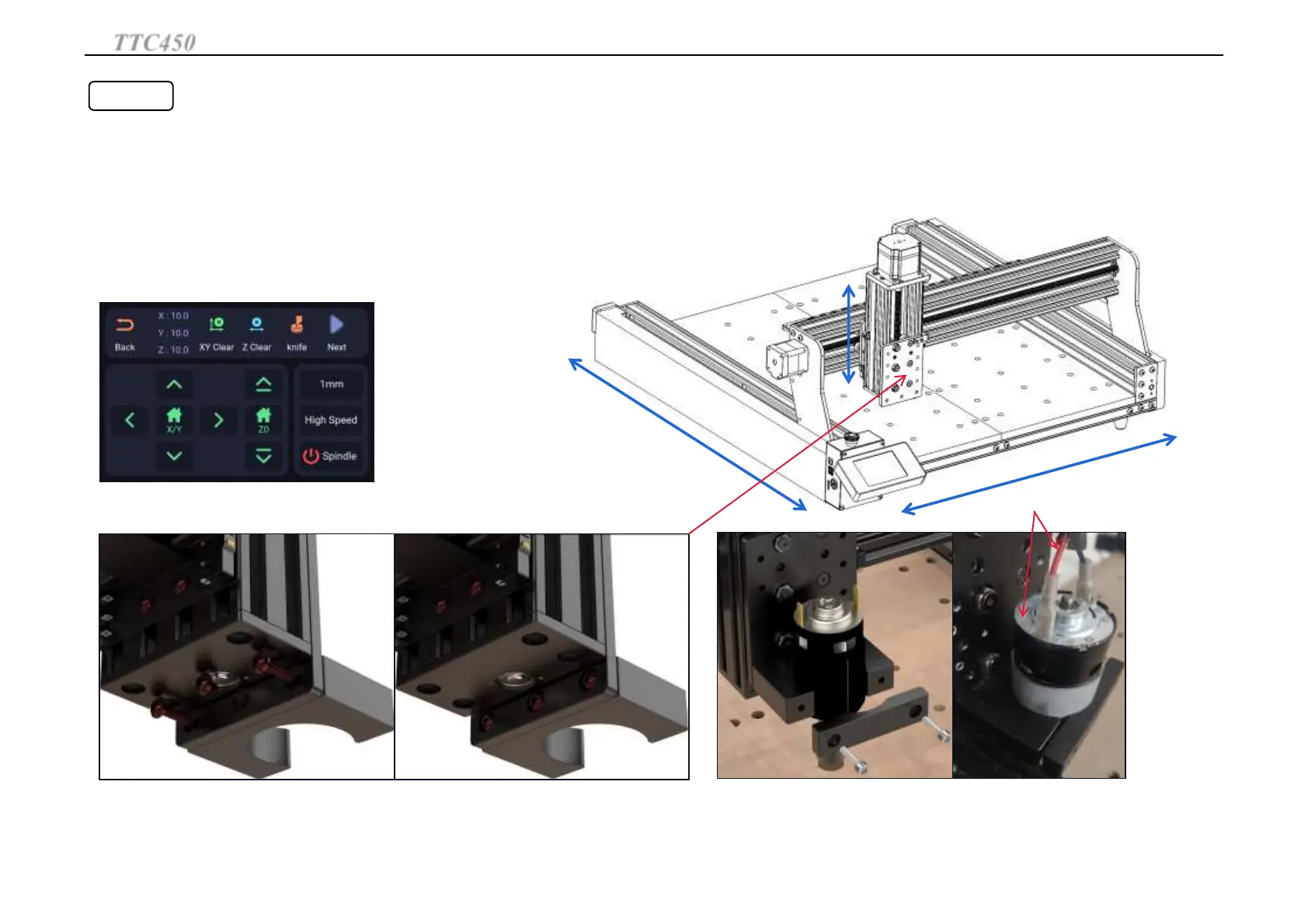

Step 18
775 motor chuck installation
Plug in the 775 motor cable,Z-axis stepper motor cable and Z-
axis,X-axis limit cable .click the X+axis to move to the right.Click
Z-axis to move down.
Y-
Y+
X-
X+
Z-
Z+
-775 spindle motor*1 -775 motor chuck*1
-3.0 hexagonal wrench -4.0 hexagonal wrench
-M5X6 screw*1 -M5X12 screw*2 -Cup head M5X12 screw*2
Required parts
Red dot connected to positive pole
TTC450
Set up TTC450
23
Z+
Z-
Y+
Y-
X-
X+
