EIL/MAN/002: REVISION 6 Date: July 2007 Page 24

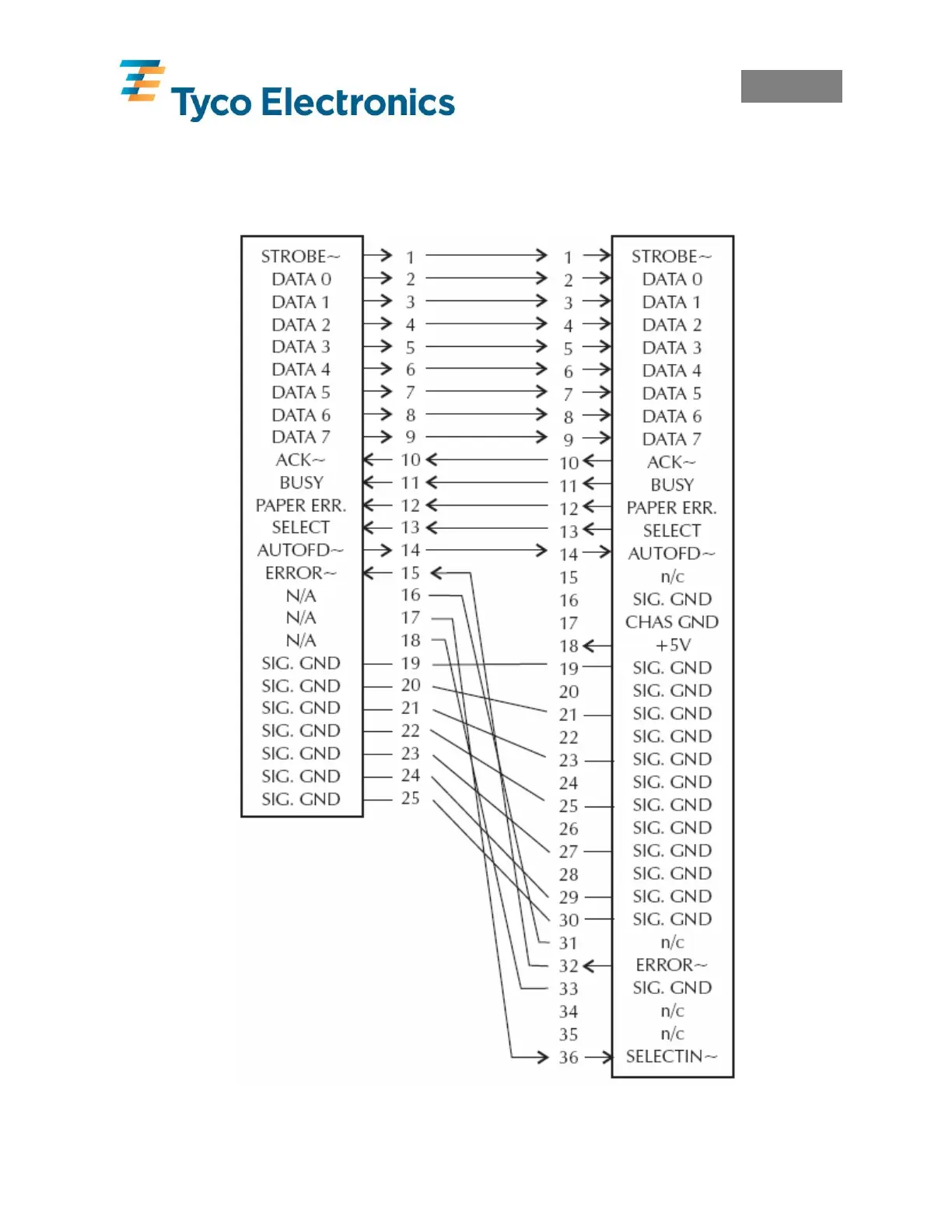

Parallel Interface Wiring
The figure below displays the cable wiring required to use the printers Centronics parallel
interface.
Host
Printer
DB-25
Pin #
Centronics
Pin #
Male DB-25 to Male Centronics Cable
+5 Volts at 300mA for external device (e.g. KDU or scanner)
