9
Internet Alarm Communicator Installation Manual
c. Locate the screw hole on the right side wall of the
panel. See Figure 2 (screw). Line up the assembled
communicator with the right side wall of the panel
and, using the screw provided, secure the mount-
ing bracket to the panel.
d. Attach the other end of the PC-LINK cable to the
communicator (red wire goes on the right-hand pin
of the communicator PC-LINK header (See Figure
3)).
e. Using light pressure (finger tight only), attach the
supplied white quad band whip antenna to the
threaded antenna connection point at top of the
panel.
WARNING! - The TL280(R) module is power lim-
ited. Do not route any wiring over the circuit
board. Maintain at least 1in. (25.4mm) separation
between circuit board and wiring. A minimum of ¼
in. (7mm) separation must be maintained at all
points between non-power limited wiring and
power limited wiring.
3. To electrically connect the communicator to the panel, perform the following steps (See Figure 3).
a. Disconnect both AC power and battery connections from the panel, and disconnect tele-
phone line.
4. Install the RS-422 connections (R models only). If using the communicator with a 3rd party
device, wire the connections as per the table below:
Table 3: RS-422 Connections
3rd Party Device Communicator
TX+ RX+
TX- RX-
RX+ TX+
RX- TX-
GND (Optional) GND
PC-Link
cable connector
screw
GSM Radio
RJ-45
UA601
HS2016/2032/2064/2128

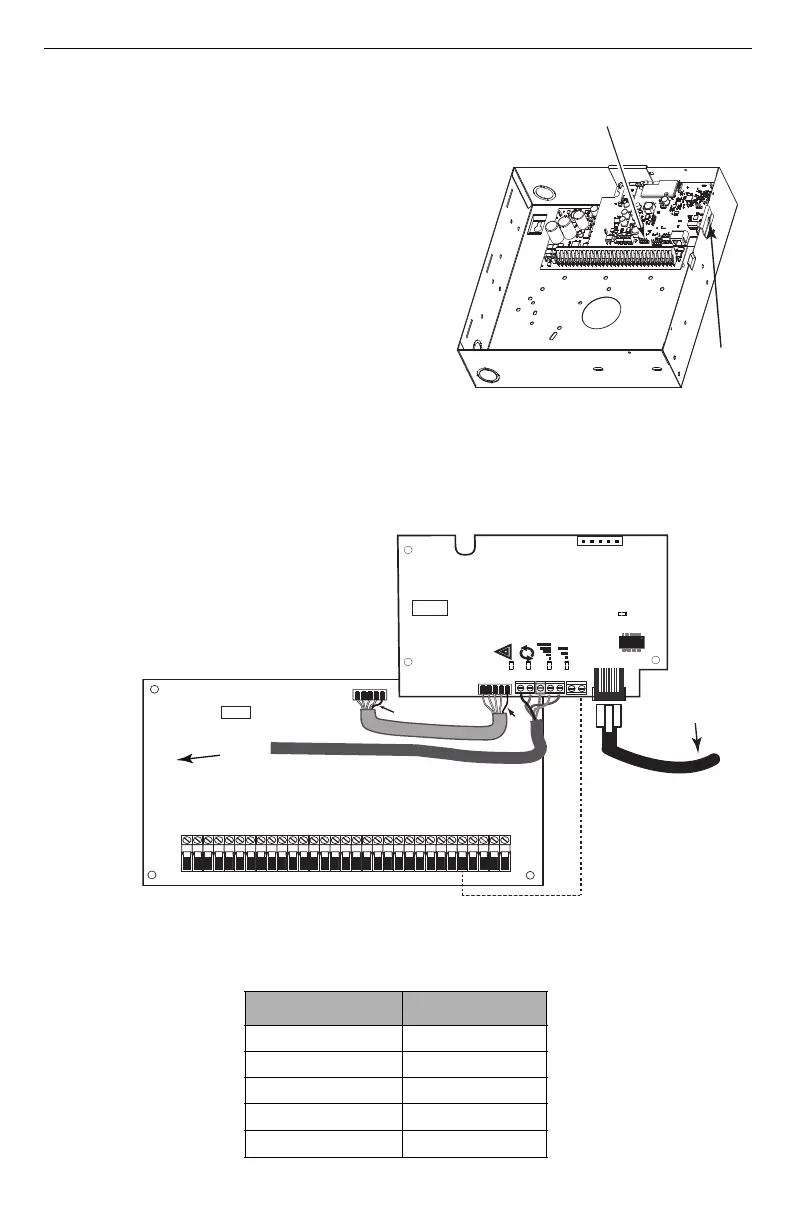

Figure 2:HS2016/2032/2064/2128 Control Panel
Figure 3:Communicator Wiring Diagram
AUDIO/DEFAULT
DSC
UA601
PC-LINK
COM
TL280(R)
AC
AC
Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8
AUX+
BELL +
PGM1 PGM3
RING
T-1
HS2016/2032/2064/2128
UA621
Input Ratings:
+10.8V ~ +12.5 VDC
100mA
DSC Panel min. power requirements:
- 16.5 VAC 40 VA transformer;
- 12 VDC 7Ah battery
Jumper pins 4 and 5
to reset.
1
Maximum cable length for AWG 22 is 305 m (1,000 ft)
From NID
Use only CAT5
Supervised
RJ-45
GRN
YEL
TIP
R-1
BLK
RED
AUX -
BELL -
EGND
TX+
GND
TX-
RX+
RX-
SHLD
Network Link
YELLOW
PGM2 PGM4
Maximum cable length
100 m (328 ft)
PCLINK_2
Red
Red
RS-422
To 3rd party device
