Tyco SYSTEM 800 - Page 8

I.S. SYSTEM 800
17A-13-I
11/03
PAGE 8 of 14
KNOCKOUT
200
173
24
6.5
17
SCREW ON FIXING LUGS
SHOWN
ADD 5mm TO DEPTH IF
FIXING LUGS USED
NOTE:
MAY BE POSITIONED AS
2)
HOLE
5
1)

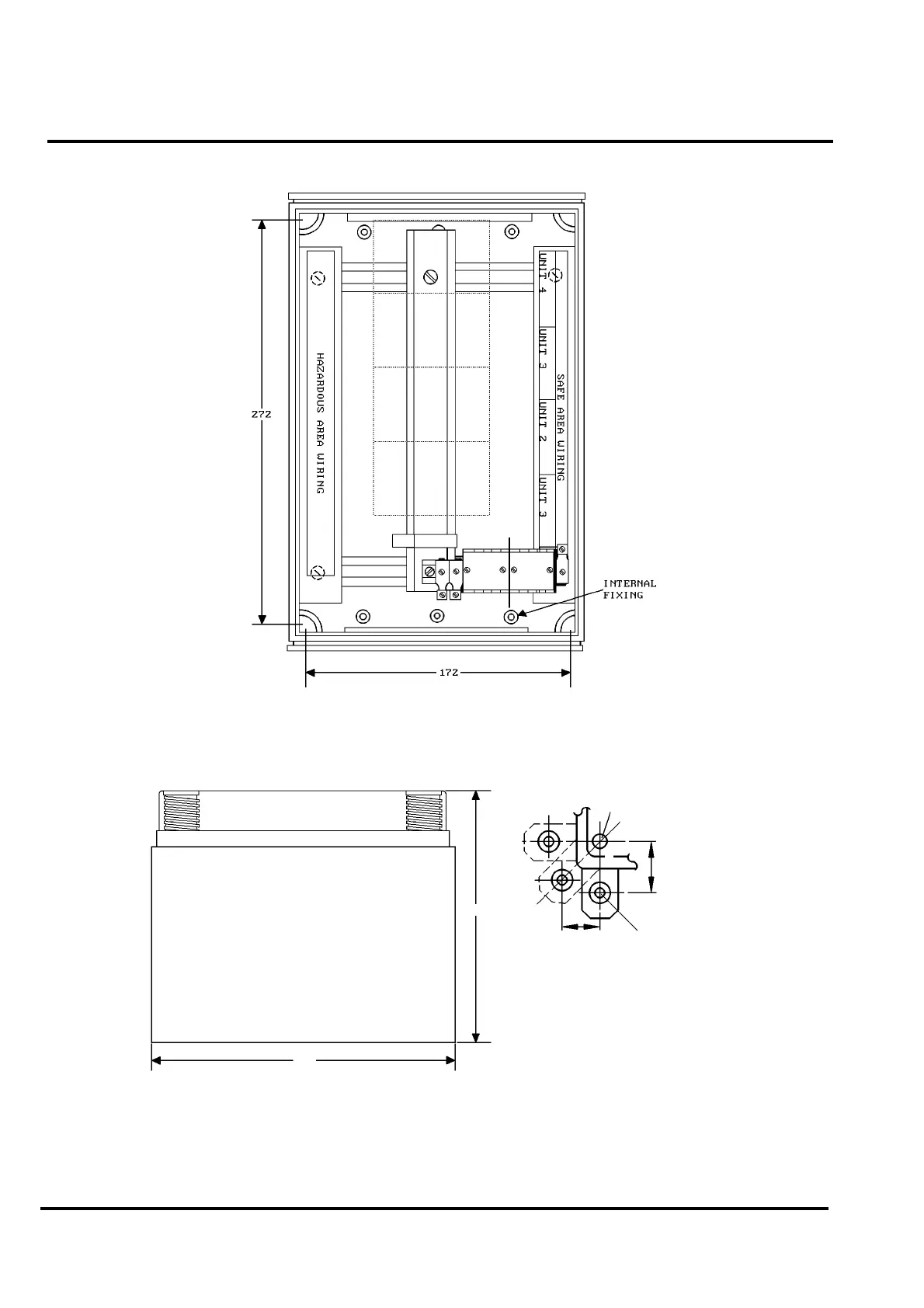

Fig. 2 Overall and Fixing Dimensions for UC4 8-Way Housing- for I.S.Sounder Driver/EXI800 MX Loop Interface/
Galvanic Isolator
