Tyco WS User Manual

TFP620
Page 8 of 8
Limited
Warranty
For warranty terms and conditions,
visit www.tyco-re.com.
Ordering
Procedure
Contact your local distributor for avail-
ability. When placing an order, indicate
the full product name and Part Number
(P/N).
Model WS HSW Window Sprinkler
with NPT Thread
Specify: Model WS Specic Application
Window Sprinkler TY3388, Horizontal
Sidewall, with (specify) temperature
rating, (specify) nish, and P/N (specify)
155°F (68°C)
Natural Brass .........P/N 50-305-1-155
Signal White (RAL9003)
Polyester ........... P/N 50-305-4-155
Chrome Plated ....... P/N 50-305-9-155
200°F (93°C)
Natural Brass ........ P/N 50-305-1-200
Signal White (RAL9003)
Polyester ...........P/N 50-305-4-200
Chrome Plated .......P/N 50-305-9-200
Model WS Pendent Vertical Sidewall
Window Sprinkler with NPT Thread
Specify: Model WS Specic Application
Window Sprinkler TY3488, Pendent
Vertical Sidewall, with (specify) temper-
ature rating, (specify) nish, and P/N
(specify)
155°F (68°C)
Natural Brass .........P/N 50-304-1-155
Signal White (RAL9003)
Polyester ........... P/N 50-304-4-155
Chrome Plated ....... P/N 50-304-9-155
200°F (93°C)
Natural Brass ........ P/N 50-304-1-200
Signal White (RAL9003)
Polyester ...........P/N 50-304-4-200
Chrome Plated .......P/N 50-304-9-200
Sprinkler Wrench
Specify: W-Type 20 Sprinkler Wrench,
P/N 56-000-1-106
INSTALLATION NOTE:
SHOWN ON ONE SIDE OF
GLASS WINDOW
GLAZING FOR CLARITY
INSTALL VERTICAL AND
DO NOT PLACE BLINDS,
WINDOW COVERINGS
NONOPERABLE
AND GLAZING
BETWEEN SPRINKLER
TYPICAL
COVERING
WINDOW
CEILING SPACES.
CURTAINS OR OTHER
WS SPRINKLERS
INTO RECESSED
HORIZONTAL MODEL
MODEL WS SPRINKLER
WINDOW
FRAME
SPACE
CEILING
RECESSED BUILDING
STRUCTURE
FOR GLASS TYPES
OTHER THAN FIRELITE
PLUS WS CERAMIC GLASS
BY TGP, ALL COMBUSTIBLE
MATERIALS SHALL BE
KEPT 2" (50,8 mm) MINIMUM
FROM SPRINKLERED FACE
OF GLAZING. THIS MAY BE
DONE THROUGH USE OF
MINIMUM 3'-0" (0,9 m)
PONY WALL
WRENCH RECESS
(USE END "A" FOR
MODEL WS)

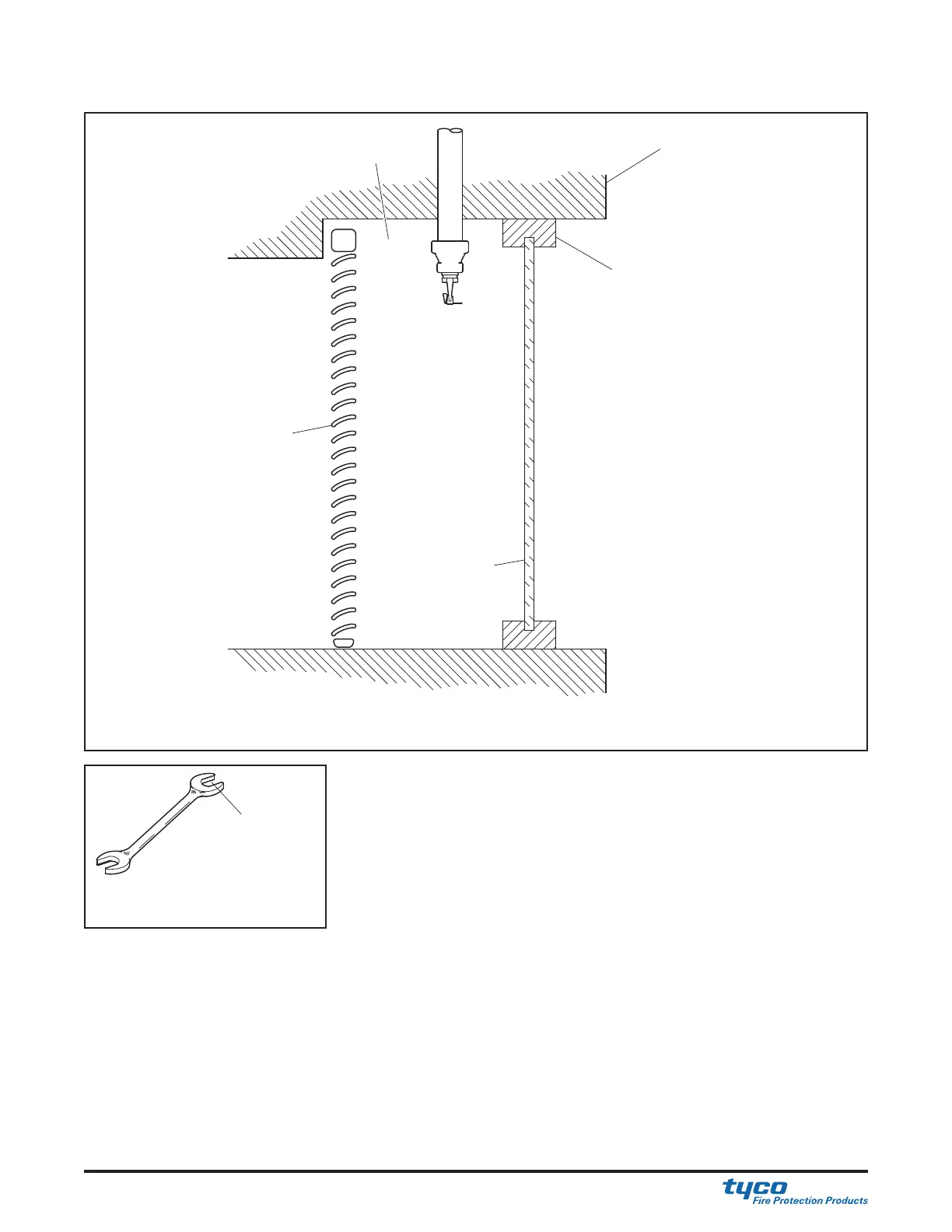

FIGURE 3E
MODEL WS PENDENT VERTICAL SIDEWALL SPRINKLER
RECESSED CEILING TYPICAL INSTALLATION
FIGURE 4
W-TYPE 20 SPRINKLER
WRENCH
