Overview

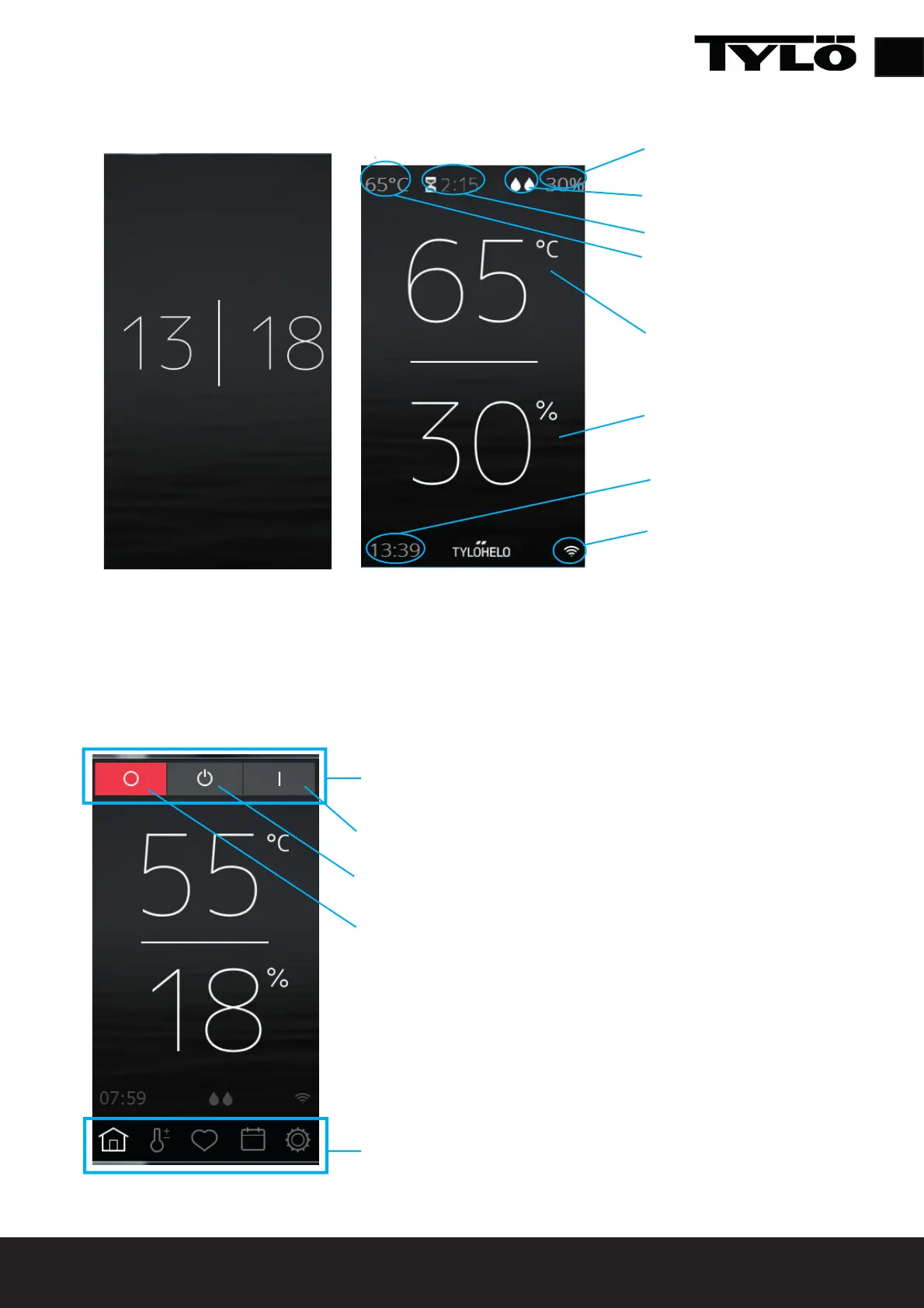

The overview screen is shown both when the heater is switched off (Figure 7) and when it is on
Temperature setting
Current temperature
Current relative air humidity
(only shown if the temperature/
humidity sensor is connected on
the Combi and Tylarium models)
Current time
Remaining sauna time
Water level in the tank (applies to
the Combi model)
Air humidity setting
Fig. 7 Fig. 8
Fig. 9
Home
Get to the Home screen (fi g. 9) by touching the screen in the Overview mode or by pressing the Home button. The
Activity buttons are used to start and stop the heater. A Standby button is also shown. When one of the activity
buttons is pressed, the colour changes to indicate the current status.
Activity/Status buttons
On
Standby:
Off
Functions/Settings buttons
Shows that the panel is
connected to Wifi .
13
EN
