Operating instructions for h1
Explanation of symbols:
1. On/Off
2. Temperature
3. Program start time
4. Settings menu
5. Status display (figure 10)– Indicates the status of certain functions (see 12, 13, 14, 15
and 16)
6. Up - One step up in the menu or one step up in the value entered
7. Lighting – Switches lighting on/off in the sauna/steam room
8. OK – Confirms selection
9. Down - One step down in the menu or one step down in the value entered
10. Back - One step back in the menu tree or one step back when entering values
11. Home – Returns you to the basic menu (figure 8 or 9)
12. Indicates that the sauna/steam generator is on
13. Indicates that h1 is programmed to start at some later point in time
14. Indicates that the lighting is on
15. Indicates that the panel is locked
16. Humidity (Combi Compact only) – Indicates approximate water level in tank. Symbol
filled = full tank. Symbol half-filled = half tank. Flashing symbol (unfilled) = tank empty.
17. Humidity (Combi Compact only)
13
1
2
3
4
5
6
7
8
9
10
11

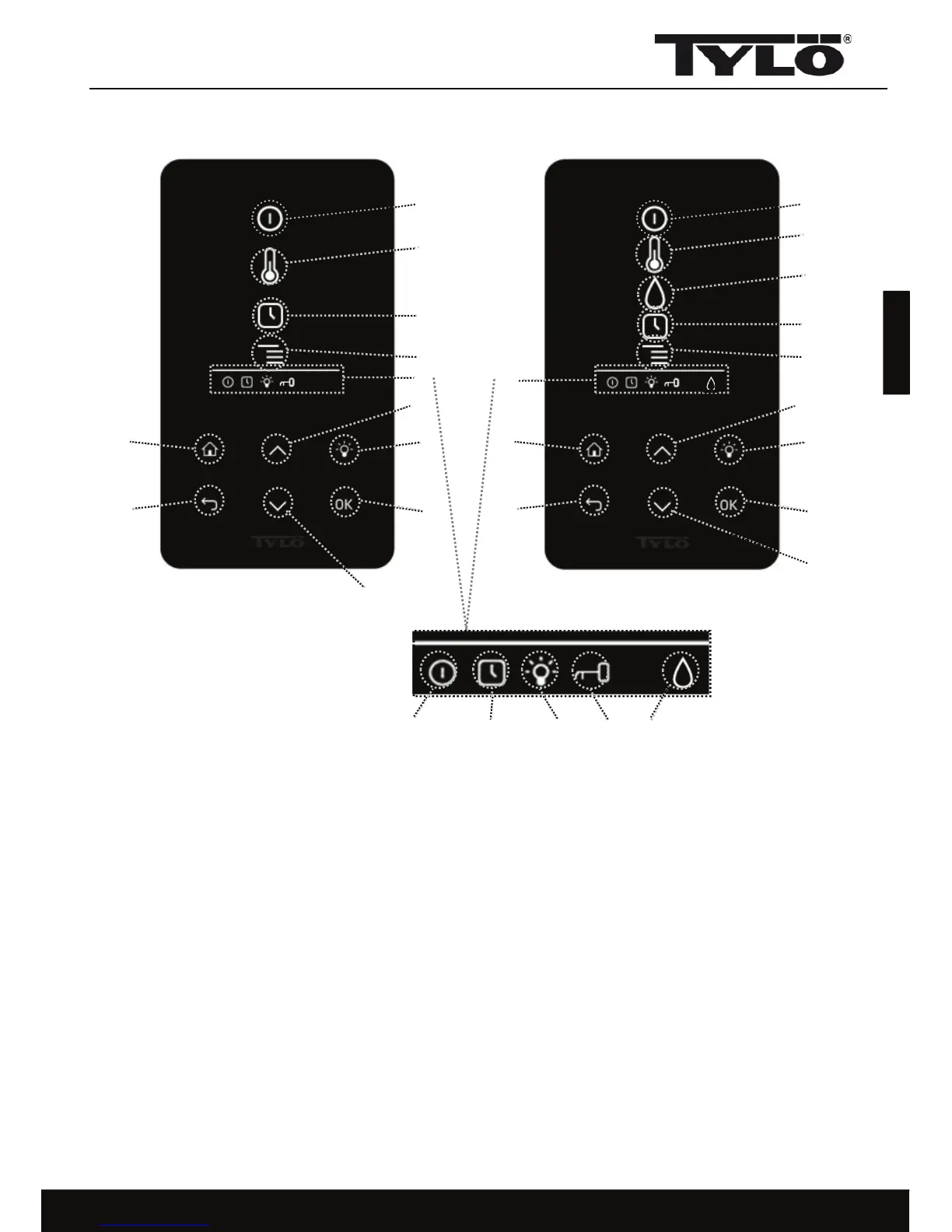

Figure 8. Basic menu h1
12 13 14
15
2
3
4
5
6
7
8
9
10
11
Figure 9. Basic menu Combi Compact h1
1
16
Figure 10.
17
