Note:
- When pushing the Bearings(6305,6204) into the gear , spur 11T, be careful only to push
their inner races.
- Every time a gear is installed, its smooth rotation should be checked.
- REAR PTO counter shaft
- REAR PTO shaft
- REAR PTO shift stay
1.Shaft PTO
2.Snap ring
3.Collar (35X50X2)
4.Bearing (6207)
1.Stay PTO shift
2.O- ring
Note:
-The snap ring C should be securely seated in the groove and the press-processed side turned towards
the outer side.
Note:
- When installing the O-ring to rear transmission case, take care not to damage it or allow to fall.

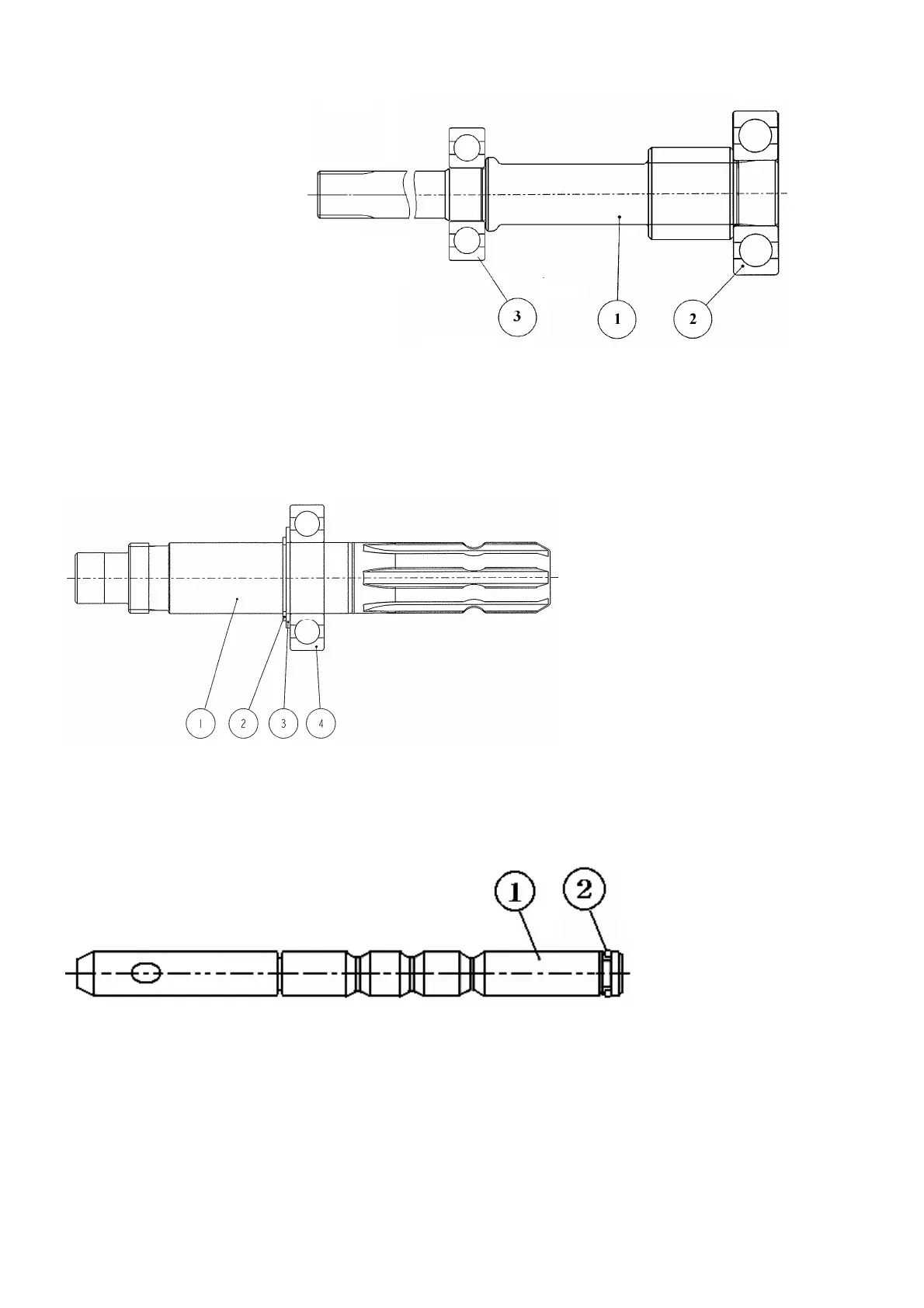

Fig.5-45
Fig.5-46
Fig.5-47
1.PTO counter shaft 11T
2.Bearing,Ball(6305)
3.Bearing,Ball(6204)
5-28
