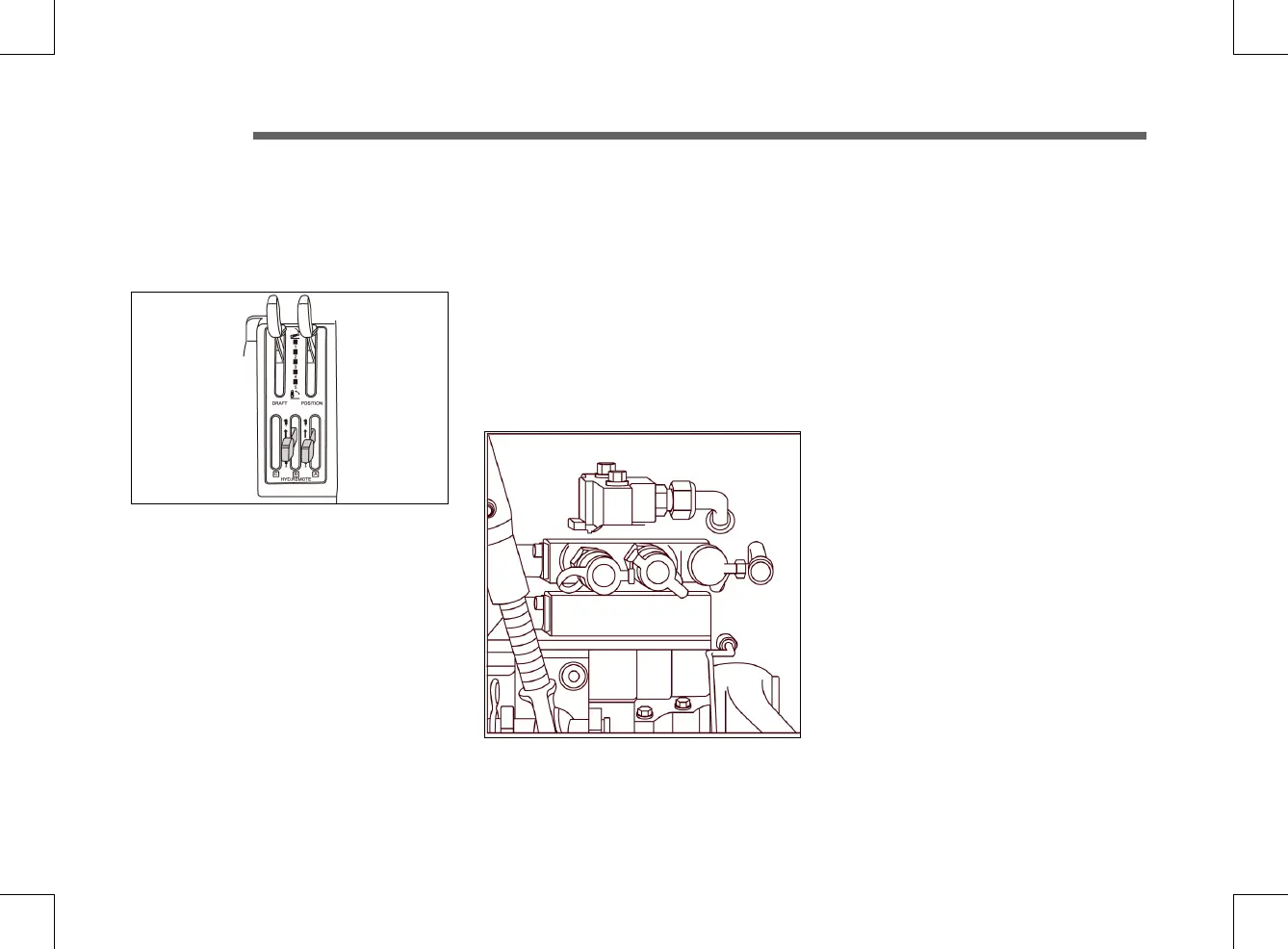

REMOTE HYDRAULIC VALVE
LEVER
Move the lever up or down and hold. This
will raise or lower the implement (rotavator
or hydraulic plow). Remote control valve is
detent type (double-acting with Detent).
Important:
Do not hold the lever in the “pull” or “Push”
position once the remote cylinder has reached
the end of the stroke. As this will cause oil
to ow through the relief valve. Forcing oil
through the relief valve for extended periods
will overheat the oil.
When Using the tractor hydraulic system to
power front loader, do not operate the boom
and bucket cylinders simultaneously.
► REMOTE HYDRAULIC CON-
TROL VALVE COUPLER CON-
NECTING AND DISCONNECT-
ING.
■
Connecting
1.Clean both couplers.
2.Remove dust plugs.
3. Insert the implement coupler to the
tractor hydraulic coupler
4. Pull the implement coupler slightly
to make sure couplers are rmly
connected.
■
Disconnecting
1. Lower the implement rst to the
ground to release hydraulic pressure
in the hoses.
2.Clean the couplers
3. Relieve pressure by moving
hydraulic control levers with engine
shut off. Pull the hose straight from
the hydraulic coupler to release it
4. Clean oil and dust from the
coupler,then replace the dust plugs.
