► JOY STICK LEVER

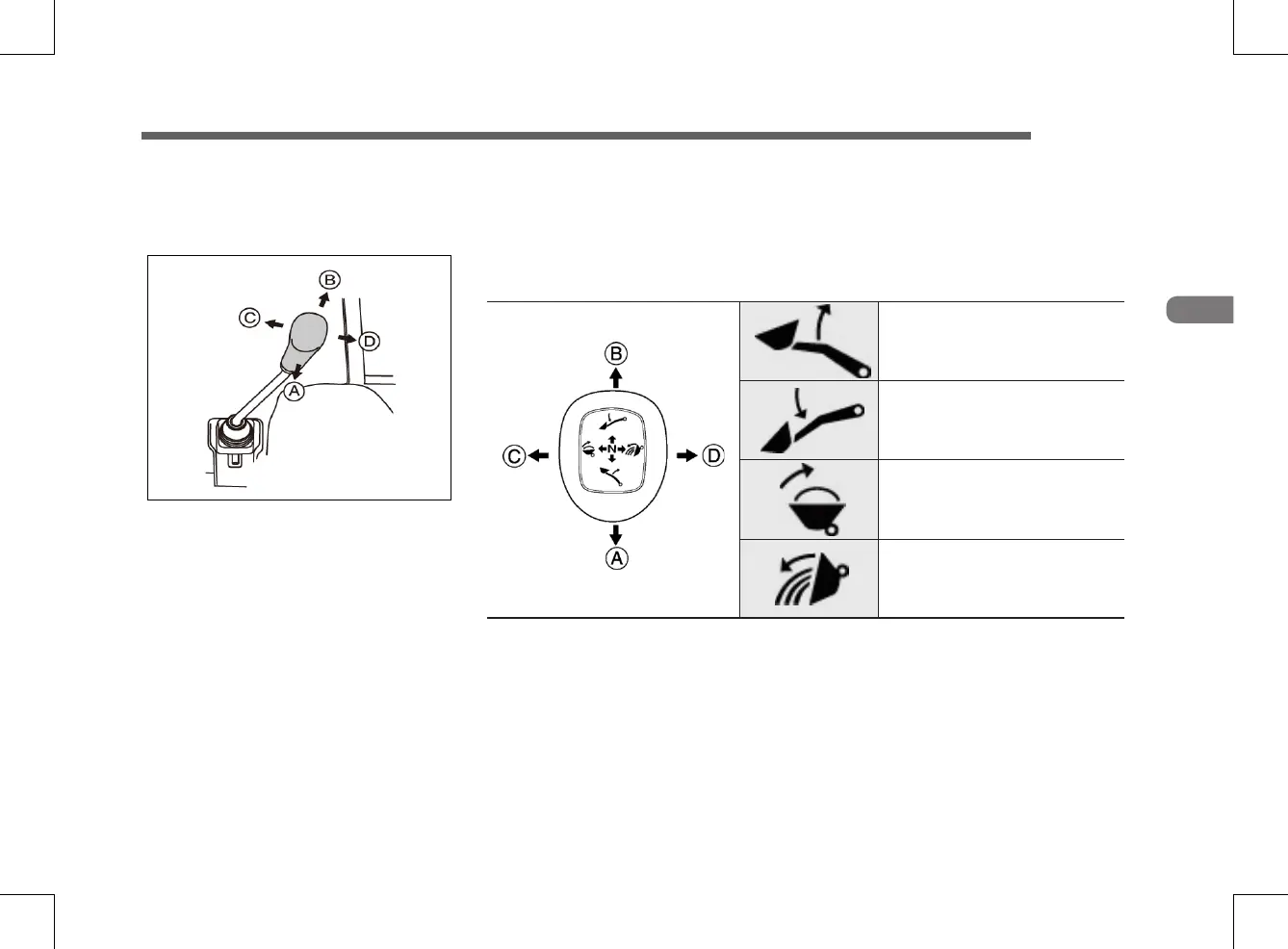

This simple joystick lever can control the use
of a front-end loader.
And lift-retract, dump-rollback smoothly and
act as one handle lever.
To raise the front end loader : pull the lever to
lift position.
To lower the front end loader : push the lever
to retract position.
To rollback the bucket : pull the stick to rollback position.
To dump the bucket : push the stick to dump position.
To raise the front end loader.
To lower the front end loader.
To rollback the boom
To dump the boom
NOTE
: The Joystick control and valve can also be used for other applications if a front
end loader is not tted.
