TYMCO DST-6 - Control Console Model DST-6

2008 15 DSTOPTRS

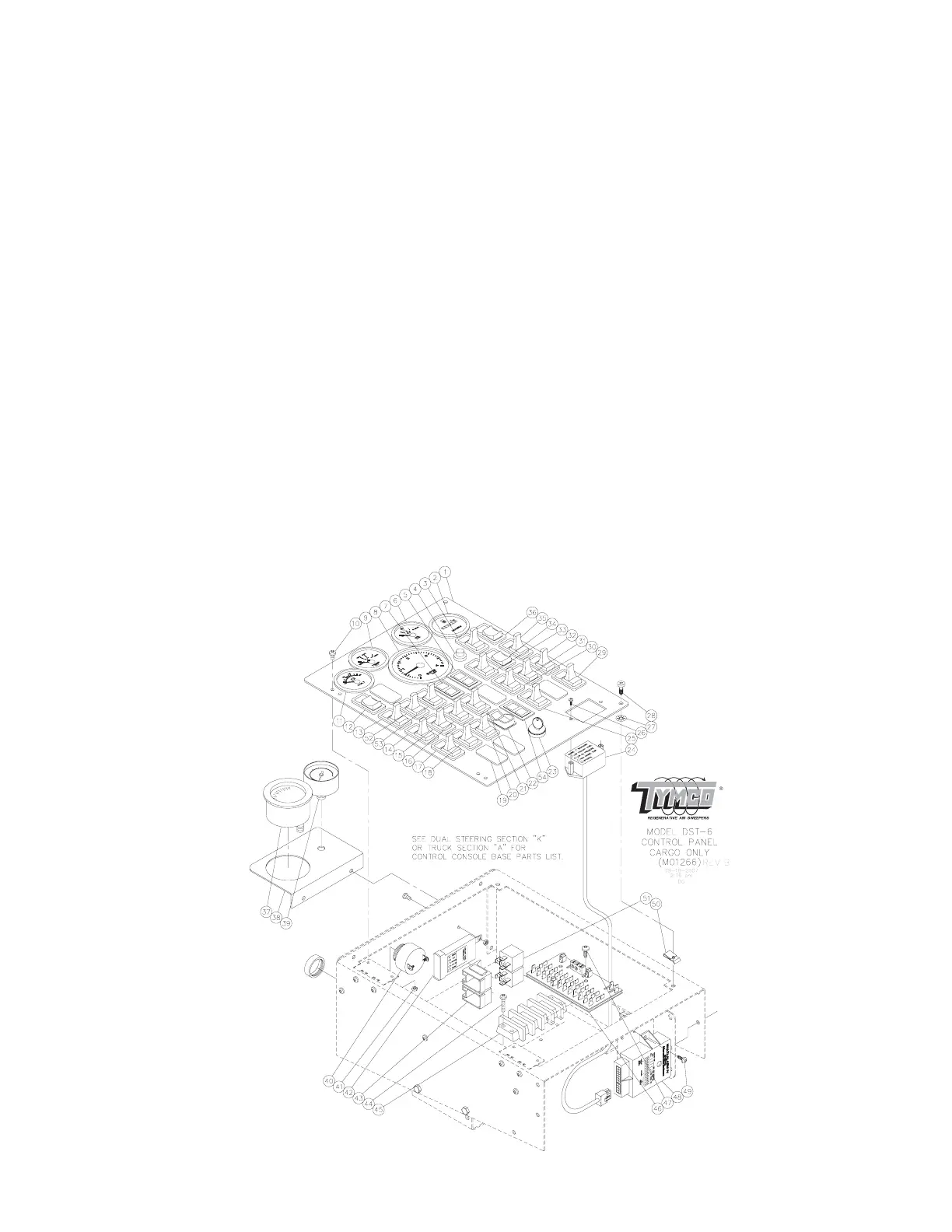

CONTROL CONSOLE MODEL DST-6
1. 600 Control Panel w/Decal (Punched)
2. Gauge - Hour Meter
3. Switch - Pick-Up Head
4. Switch - Aux. Hyd. Sys. Run Button
5. Pilot Lamp Assy - Aux. Hyd./BAH On
6. Gauge - Engine Oil Pressure
7. Pilot Lamp Assy - Low Water/Pump On
8. Gauge - Tachometer
9. Gauge - Water Temperature
10. Screw - #10-32 x 3/8 Pan Head
11. Gauge - Voltage Meter
12. Switch - Gutter Broom (LH)
13. Switch - Gutter Broom Tilt (LH)
14. Switch - Gutter Broom Water (LH)
15. Switch - Hopper Water
16. Switch - High Output Water (LH)
17. Switch - Gutter Broom Light (LH)
18. Switch - Warning Lights
19. Blank - Control Panel
20. Switch - Work Lights
21. Switch - Water System
22. Switch - Dump Door
23. Switch - Ignition (Sweeper)
24. Display - Shutdown Module
25. Switch - Engine RPM
26. Screw - #6-32 x 3/8 Phillips Pan Head
27. Retainer - #12 Passivated
28. Screw - #12 Quick Open Captive
29. Switch - Gutter Broom Light (RH)
30. Switch - High Output Water (RH)
31. Switch - Pick-up Head Water
32. Switch - Gutter Broom Water (RH)
33. Switch - Auxiliary Hydraulic
34. Switch - BAH
35. Switch - Gutter Broom Tilt (RH)
36. Switch - Gutter Broom (RH)
37. Gauge - Minihelic II - 0-10 IN.
38. Gauge Mount
39. Gauge - Air Pressure - 0-250 PSI
40. Mini Siren - Hopper Load
41. Nut - 10-32 KEPT
42. Liquid Level Sensor Control Module
43. Wire Harness - Liquid Level Sensor
44. Screw - #10-32 x 1 Pan Head
45. 2 Pole Terminal Strip
46. Fuse Panel - ATO
47. Screw - #10-24 x 3/4 Type F
48. Module - Shutdown
49. Screw - #10-24 x 1/2 Taptite Pan Head
50. Receptacle - #12 Clip-On Type J
51. Relay - 12 VDC SPDT
52. Switch - DST Mode
53. Switch - Filter Purge
54. Pilot Lamp Assembly - Blank/Hopper Full
