DSTOPTRS 26 2008

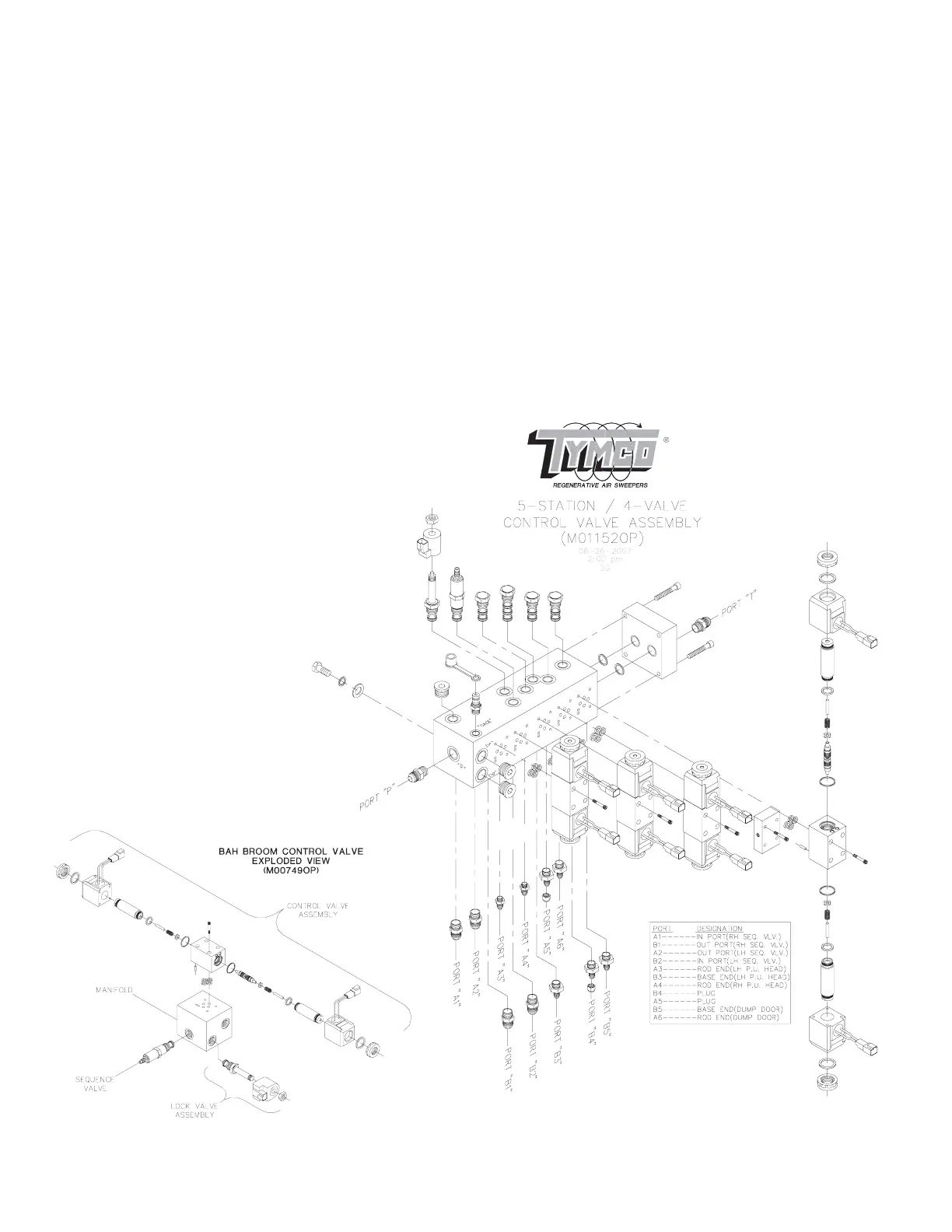

NOTE: In order to manually override dump door or pick-up head, by-pass valve
override button must be depressed at the same time.
4. If component goes in wrong direction or does not activate, push opposite over-
ride button.
NOTE: Gutter brooms can only be raised when manually shifting valve. In trying
to lower gutter broom manually, bristles will rotate but broom will not lower
due to the electric lock valve located on the cylinder.
If a valve segment solenoid coil shorts out, it will cause the hydraulic system fuse to
blow. The fuse is located at the control console assembly inside the cab (see Page 4)
and is a ATO fuse rated at 15 amps. Always replace the fuse with the correct amp fuse
or total electrical failure could result!.
To replace solenoid coil, refer to Parts & Service Manual.
