EasyTravel – ET1B User’s Manual Rev. 0708 5
8. Always keep your feet on the foot platform when driving.
9. Do not sit on the scooter while being transported in a moving vehicle. Al-
ways fold down and secure your EasyTravel and transfer yourself to a
vehicle seat.
3. SYSTEM COMPONENTS AND DETAILS

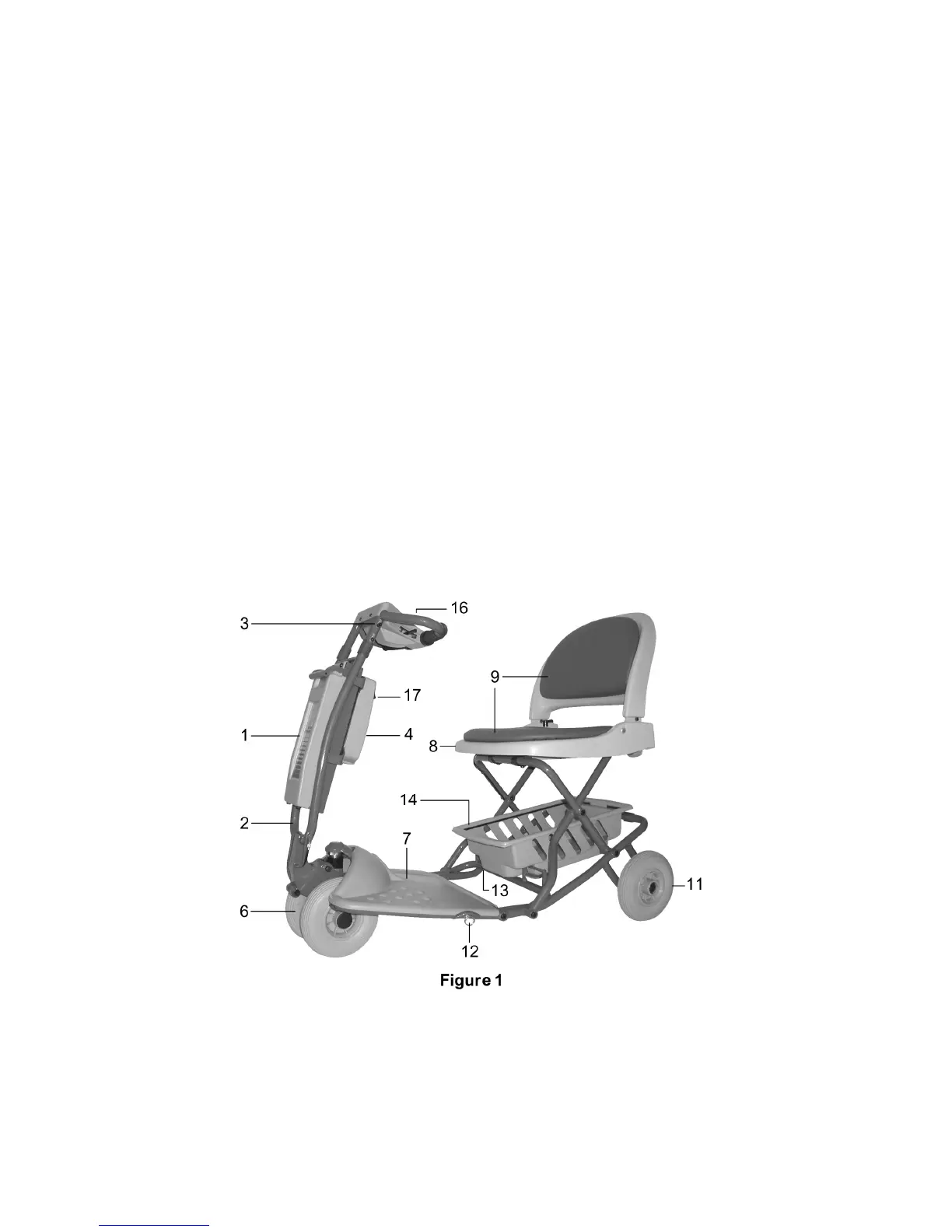

3.1. EasyTravel parts – (Figure 1)
1. Battery pack (detachable) 11. Rear wheel
2. Front column (detachable) 12. Folded frame lock/release pin
3. Column lock/release triggers 13. Unfolded frame lock/release pin
4. Controller cover 14. Utility basket (holding capacity
5. Charging socket (Fig. 1A) 20lbs/9kg)
6. Front drive wheels 15. Charger and connecting cables
7. Foot platform (Fig. 1B)
8. Seat shell 16. Control Panel
9. Seat cushions 17. Freewheel switch
