EasyTravel – ET1B User’s Manual Rev. 0708 7
4. ASSEMBLY AND FOLDING INSTRUCTIONS
4.1. Assembling your EasyTravel
Unfolding Rear Frame

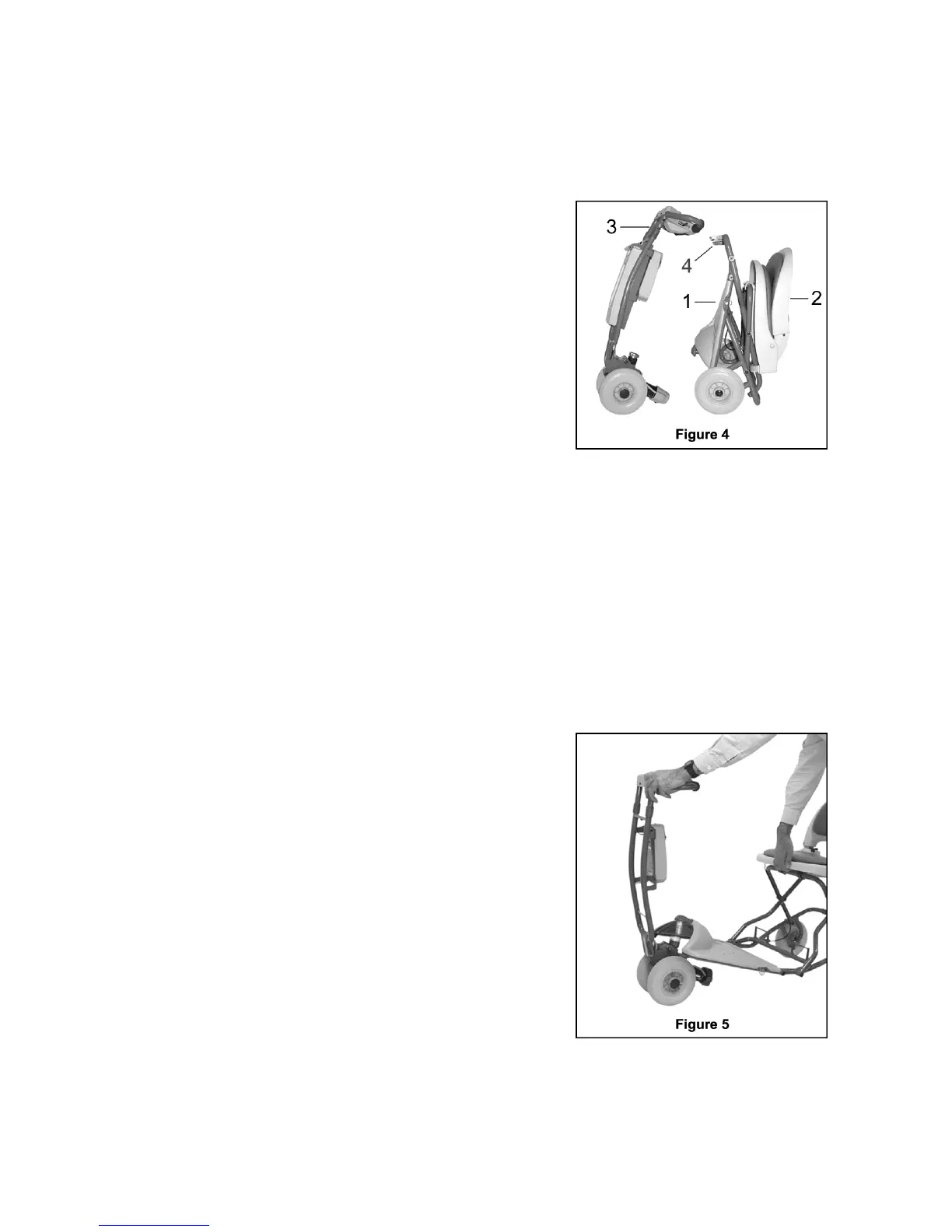

Pull on the folded frame lock pin ring (Fig.
4/1) to release the foot platform and unfold
the frame. Pull the seat backrest (Fig. 4/2)
and lift it to the upright position. Ensure that
the unfolded frame lock pin secures the
platform in the horizontal position.
Unfolding Front Column
Pull the column lock triggers (Fig. 4/3)
upward towards the handle to release the
tilt lock. Move the drive unit away from the
column (all the way) to open the quick-
release housing. This is the column
“detach” position.
Connecting the Front Column to the
Rear Frame
Position the column in the “detach” position.
Lift the front of the Foot platform and insert
connection pin into the quick-release
housing on the drive unit. This may be done
without bending down by lifting the front of
the seat “lip” while holding the front column
hand-grip as shown in Fig. 5.
