EasyTravel – ET1B User’s Manual Rev. 0708 8

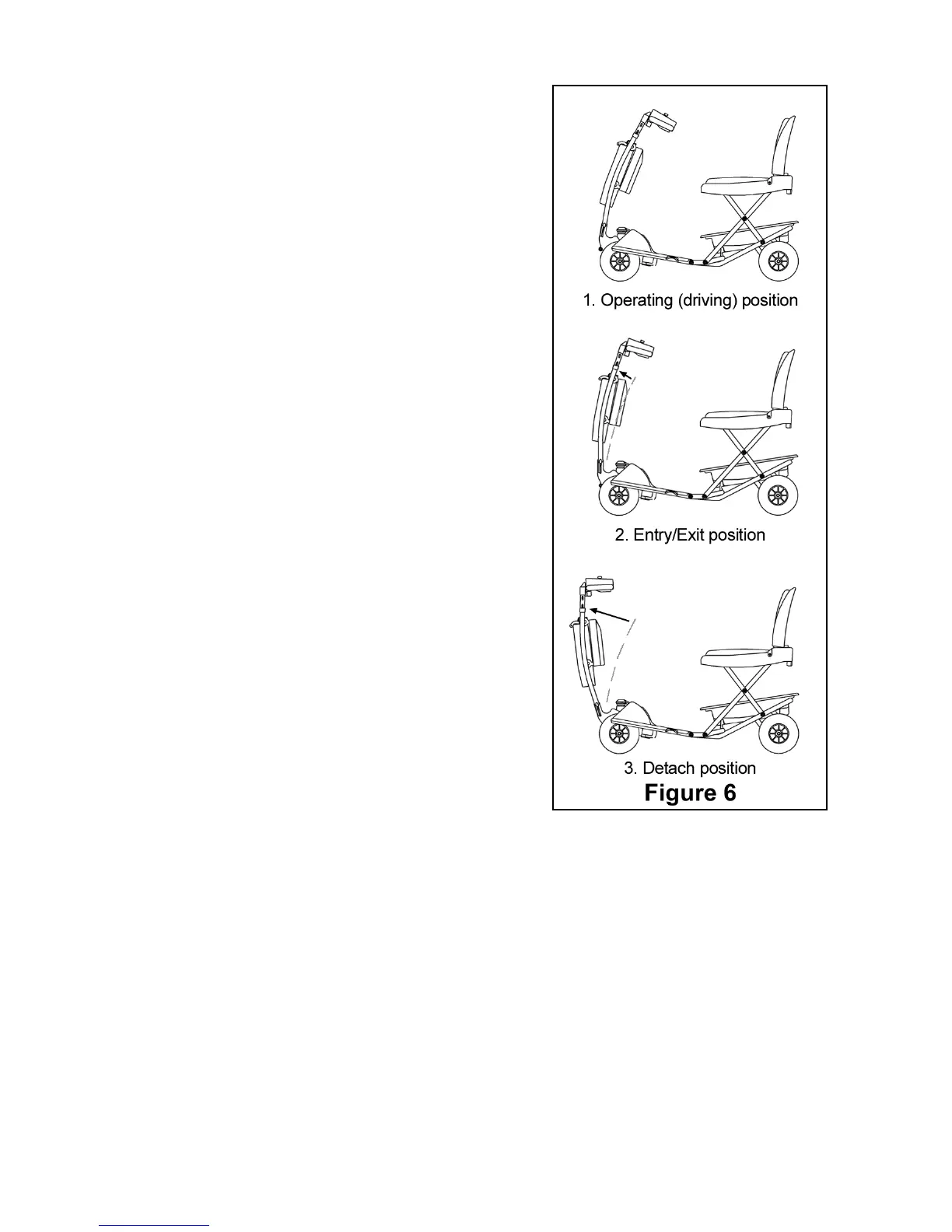

Front Column Adjustment (Figure 6)
To adjust the angle of the front
column, pull the column lock triggers
upward. Move the column into the
desired position and release. Push
lightly back and forth on the column to
ensure that it is locked in the desired
position.
1. For driving the EasyTravel, adjust
column to the rear-most position.
2. For getting in and out of the
EasyTravel seat comfortably, the
column may be moved away from
the seat to the entry/exit position.
3. For detaching the front column
from the rear frame, adjust the
column fully forward to the detach
position (Fig. 6/3); remove battery
before adjusting the column to the
detach position.
CAUTION: When getting in and out of the EasyTravel seat, step only on
CENTER of foot platform. DO NOT STEP ON SIDE OF FOOT PLATFORM
to avoid tipping the EasyTravel.
NOTE: The rear frame, when folded, can be lifted by the handles (Fig 4/4).
