6 u-line.com
Frame Installation:
1. Rest the top of the frame on the (2) units. Align as required.

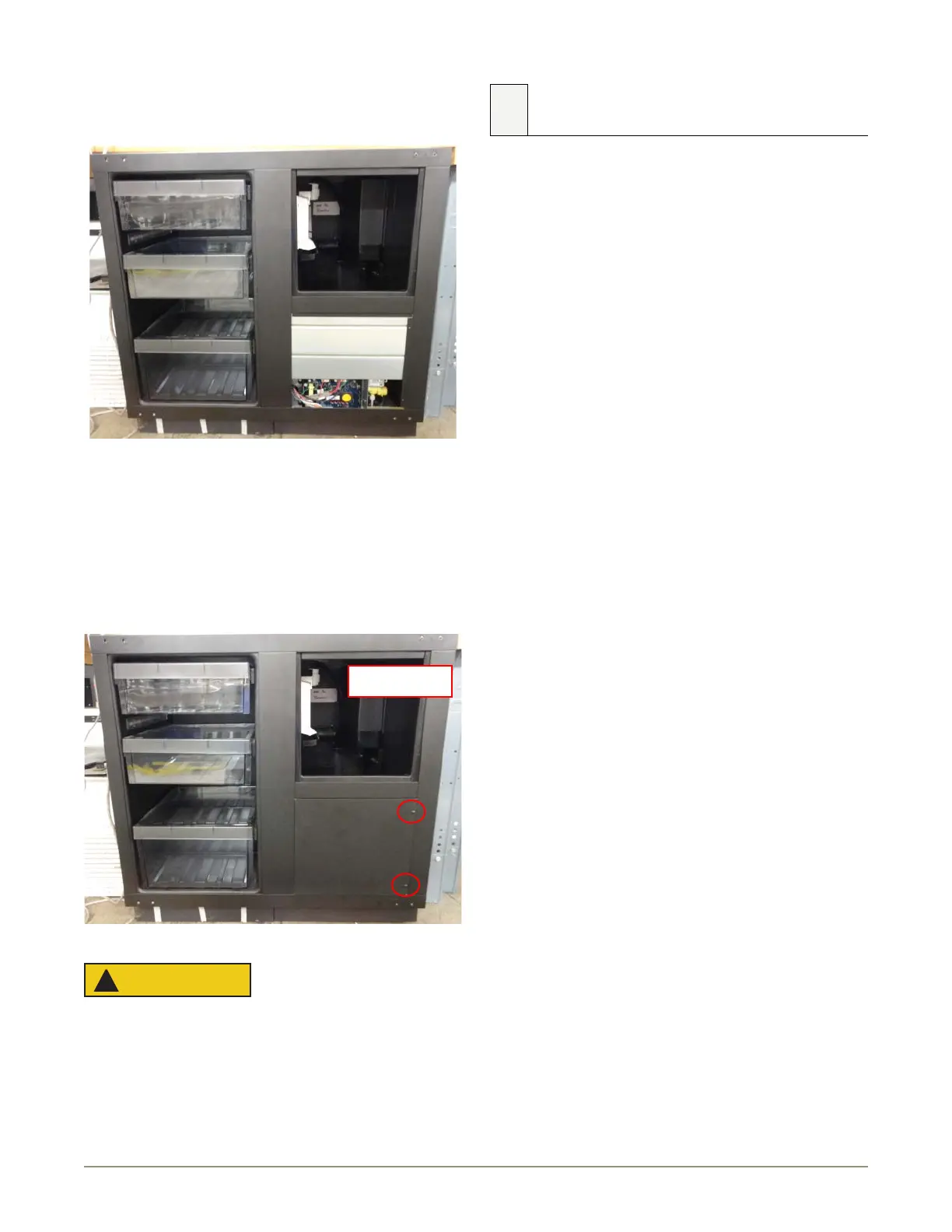

Figure 12 Sliding the Frame into Place
2. Slide the frame into place, working your way down.
3. Visually inspect the unit. Ensure the liner and the frame are flush
with one another.
Front Panel Installation
(U-3000FLANGE-KIT-ICE ONLY):
1. Locate (2) holes in the front of the frame.
Figure 13 Front Panel Screw Locations
When drilling holes for front panel, do not exceed the
maximum drill depth of 1/2" (12.7 mm).
2. Using the located holes as a template, drill (2) holes with a #30
drill bit.
3. Slide tongue (left side) of panel under the new frame and align
stamped holes with drilled holes.
4. Install (2) Phillips sheet-metal screws supplied.
Door Installation:
1. For the left door, install the (2) slotted hinge screws leaving
approximately a 5/32" (4 mm) gap between the frame and the
screw head.
2. Slide door so slotted hinges engage.
3. Install the (2) non-slotted hinge screws completely.
4. Tighten the (2) slotted hinge screws.
5. Repeat procedure for the right door.
6. Ensure proper alignment, fit and function.
Hardware Installation:
1. Install hinge covers. Slide cover onto the hinges, pinching the
top and bottom tabs together. A click can be heard when
seated properly.
2. Push the cord catchers and their barbed push rivets into place
using the supplied fasteners.
3. Ensure magnet/reed-switch alignment for doors.
Grille Installation:
1. Install front grilles. Pushing tabs in, slide each grille into its unit.
2. Tighten (2) 7/64" Allen wrench screws into each grille.
5 Reinstall the Door, Hardware and
Grille
