USER GUIDE
Integrated Panel Installation 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

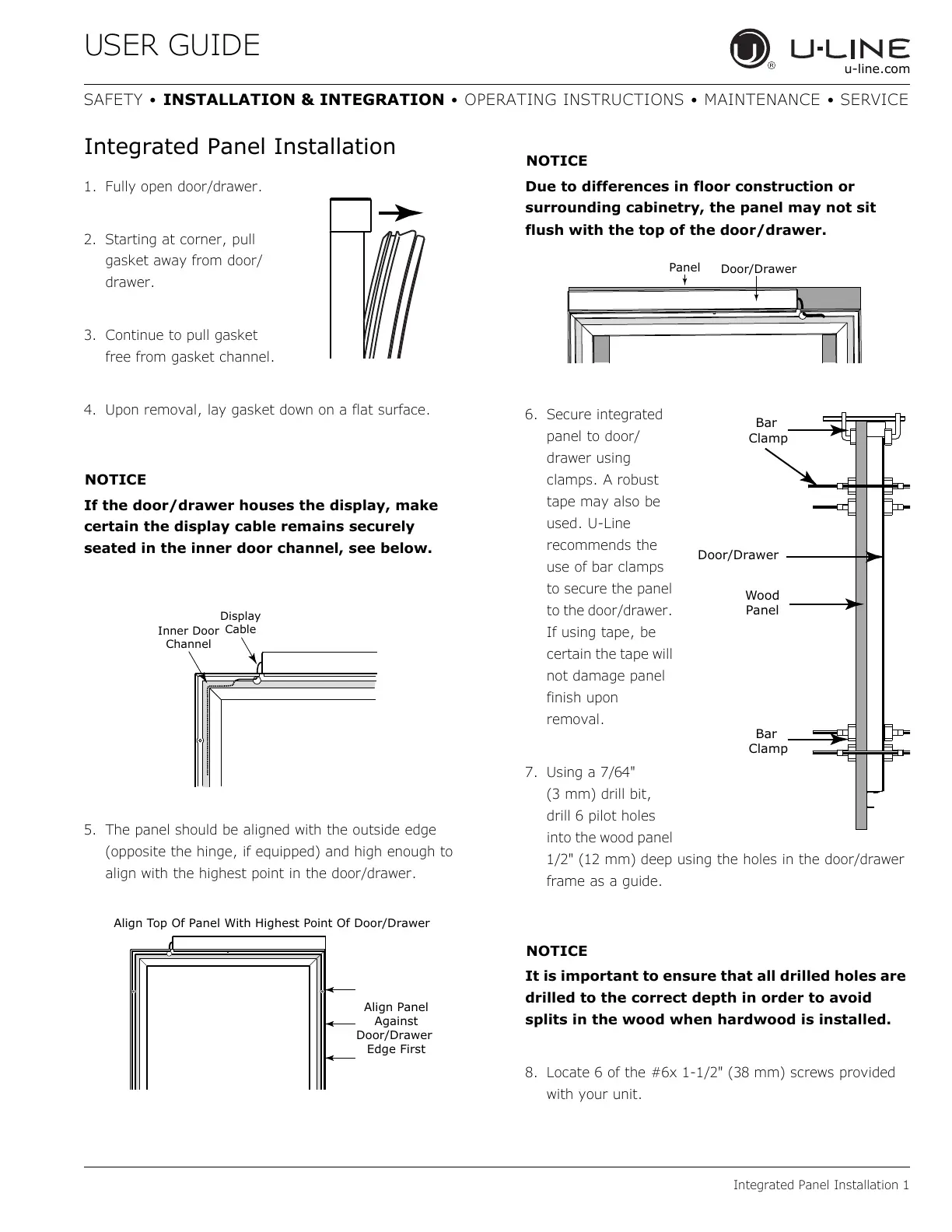

Integrated Panel Installation
1. Fully open door/drawer.
2. Starting at corner, pull
gasket away from door/
drawer.
3. Continue to pull gasket
free from gasket channel.
4. Upon removal, lay gasket down on a flat surface.
If the door/drawer houses the display, make
certain the display cable remains securely
seated in the inner door channel, see below.
5. The panel should be aligned with the outside edge
(opposite the hinge, if equipped) and high enough to
align with the highest point in the door/drawer.
Due to differences in floor construction or
surrounding cabinetry, the panel may not sit
flush with the top of the door/drawer.
6. Secure integrated
panel to door/
drawer using
clamps. A robust
tape may also be
used. U-Line
recommends the
use of bar clamps
to secure the panel
to the door/drawer.
If using tape, be
certain the tape will
not damage panel
finish upon
removal.
7. Using a 7/64"
(3 mm) drill bit,
drill 6 pilot holes
into the wood panel
1/2" (12 mm) deep using the holes in the door/drawer
frame as a guide.
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardwood is installed.
8. Locate 6 of the #6x 1-1/2" (38 mm) screws provided
with your unit.
Display
Cable
Inner Door
Channel
Align Top Of Panel With Highest Point Of Door/Drawer
To Next Page
