U-Line 3000 SERIES - Unit Product Dimensions; Unit Physical Dimensions

USER GUIDE
Product Dimensions 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

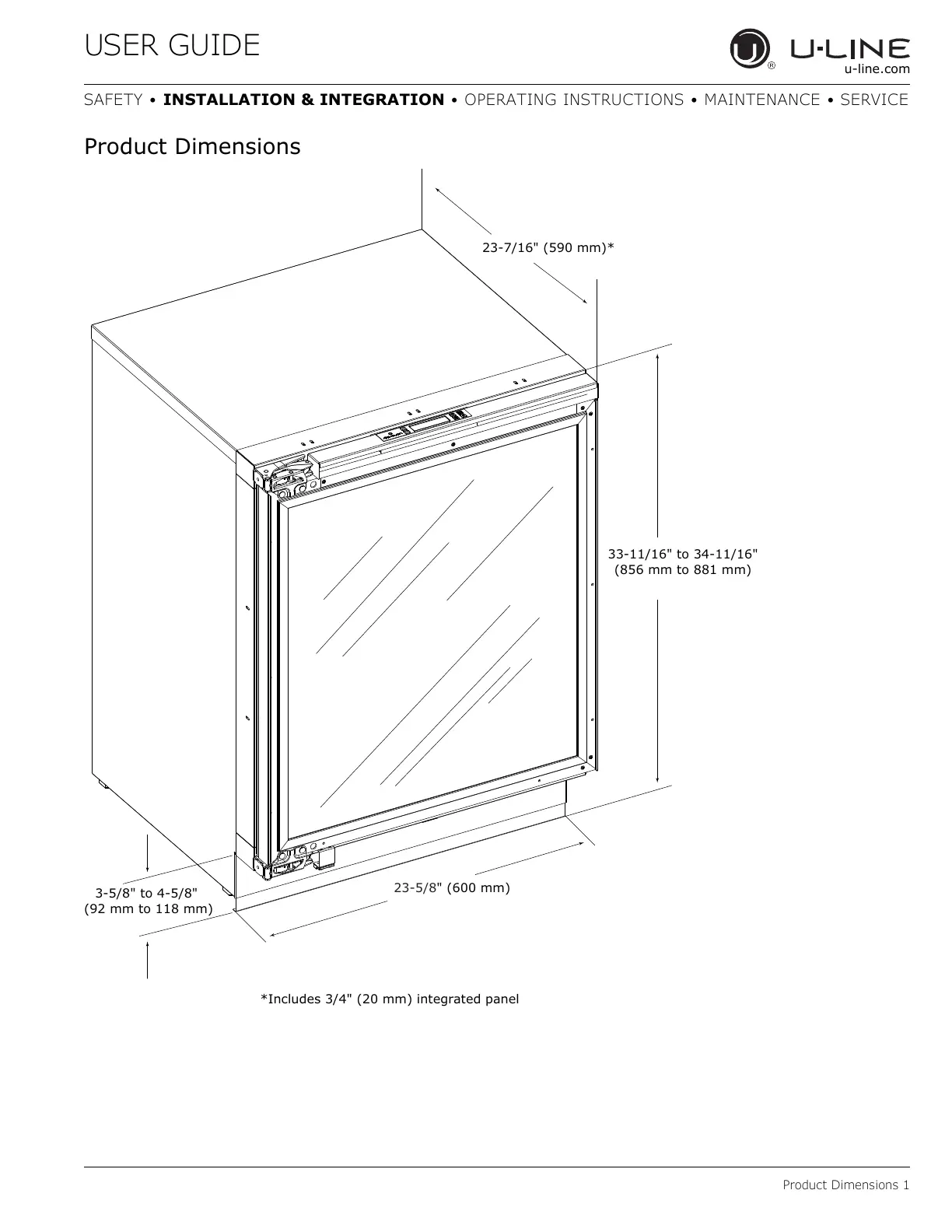

Product Dimensions
3-5/8" to 4-5/8"
(92 mm to 118 mm)
33-11/16" to 34-11/16"
(856 mm to 881 mm)
23-7/16" (590 mm)*
23-5/8" (600 mm)
*Includes 3/4" (20 mm) integrated panel
