U-Line CLR1215 User Manual

USER GUIDE
Drain Pump 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
WARNING
!
The back panel serves as a guard. Do not put
your hands inside the ice machine cabinet or
attempt to touch any components except the
discharge tube during testing.
CAUTION
!
Failure to properly secure the vent tube will
result in water damage to the unit and
surrounding areas. Do not allow vent tube to
kink, bend or be obstructed in any way.
CAUTION
!
Vent tube must be straight and parallel to
insulated tubes. Do not over-tighten the plastic
tie wraps. Over-tightening can pinch vent tube
closed or cut into insulation.

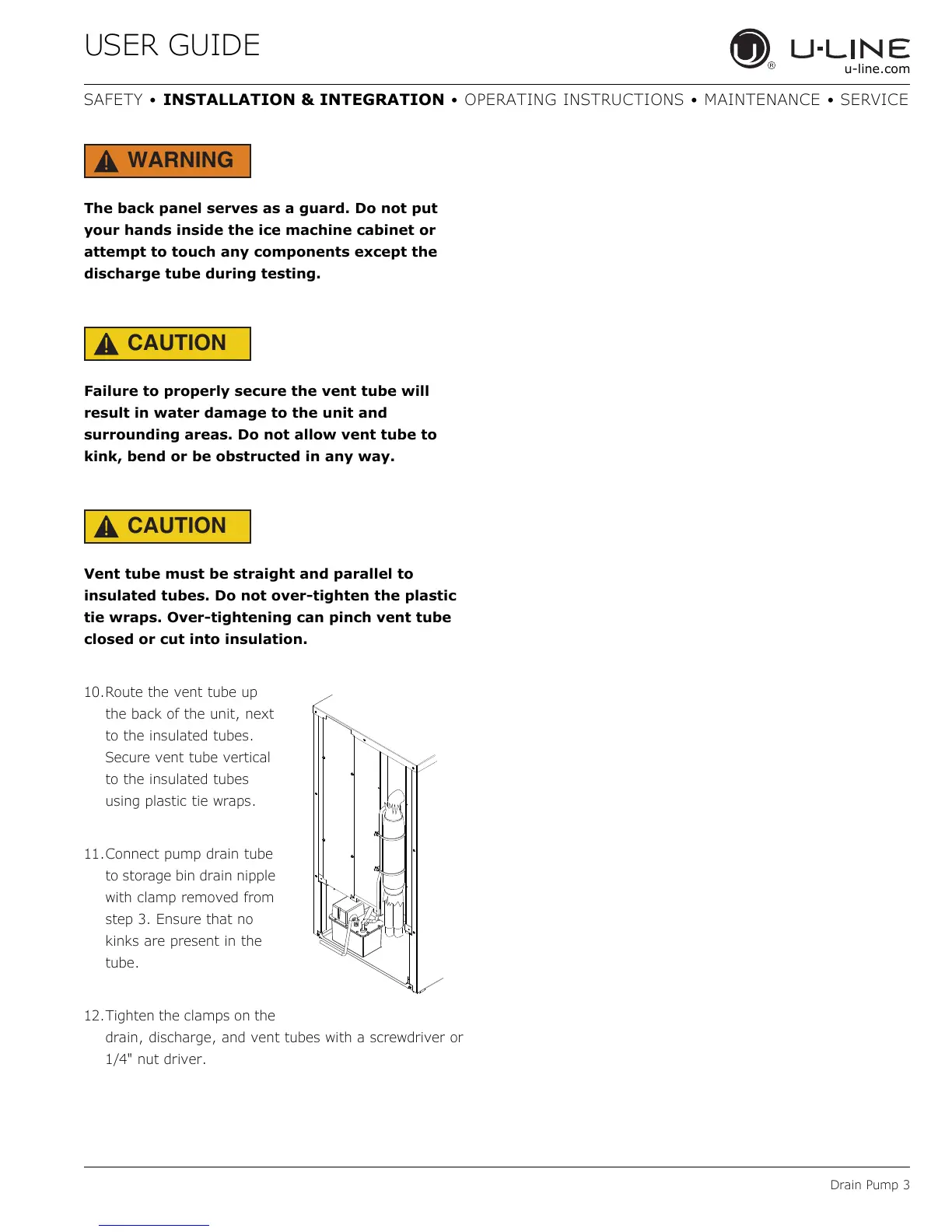

10.Route the vent tube up
the back of the unit, next
to the insulated tubes.
Secure vent tube vertical
to the insulated tubes
using plastic tie wraps.
11.Connect pump drain tube
to storage bin drain nipple
with clamp removed from
step 3. Ensure that no
kinks are present in the
tube.
12.Tighten the clamps on the
drain, discharge, and vent tubes with a screwdriver or
1/4" nut driver.

U-Line CLR1215 Specifications

General

Brand	U-Line
Model	CLR1215
Category	Ice Maker
Language	English
