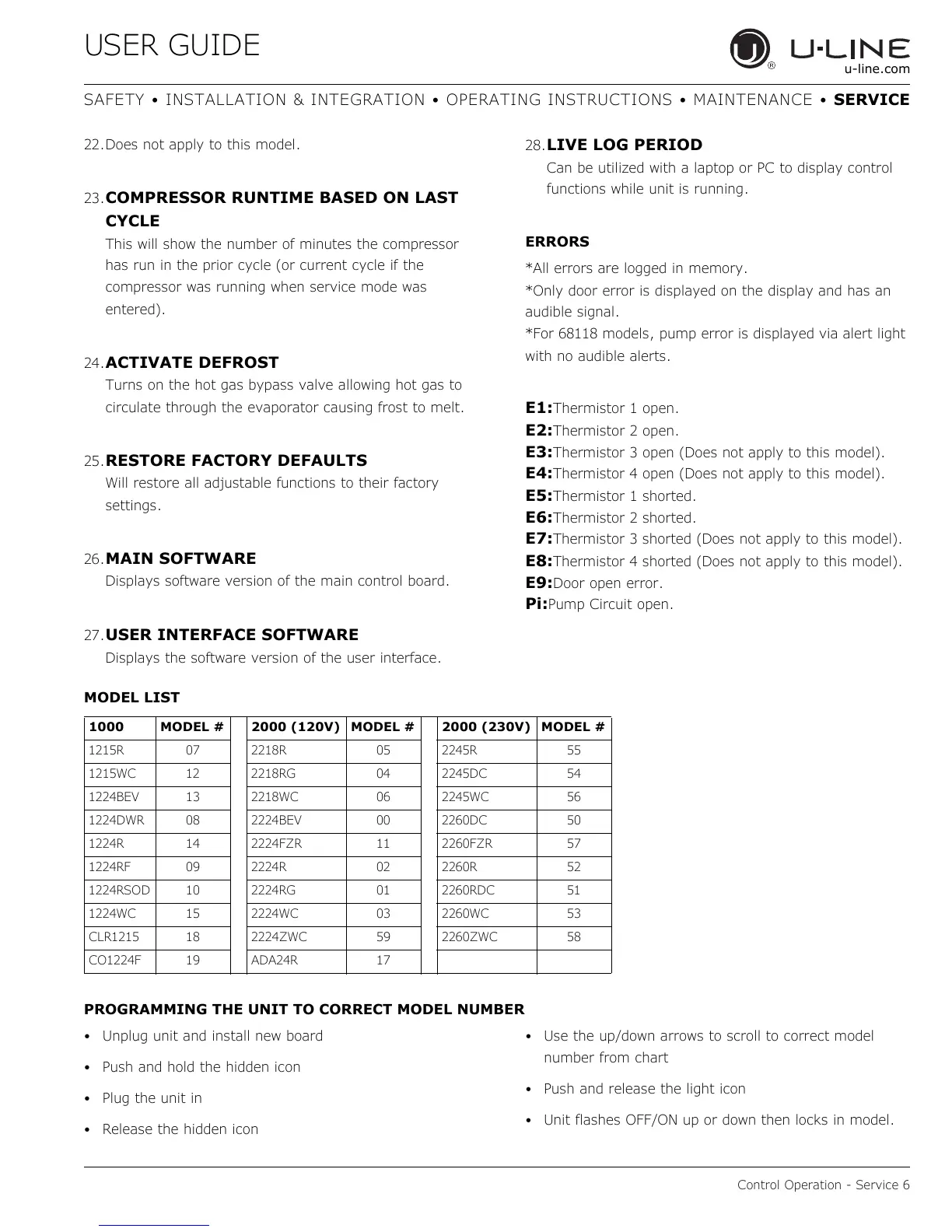

USER GUIDE
Control Operation - Service 6
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
22.Does not apply to this model.
23.
COMPRESSOR RUNTIME BASED ON LAST
CYCLE
This will show the number of minutes the compressor
has run in the prior cycle (or current cycle if the
compressor was running when service mode was
entered).
24.
ACTIVATE DEFROST
Turns on the hot gas bypass valve allowing hot gas to
circulate through the evaporator causing frost to melt.
25.
RESTORE FACTORY DEFAULTS
Will restore all adjustable functions to their factory
settings.
26.
MAIN SOFTWARE
Displays software version of the main control board.
27.
USER INTERFACE SOFTWARE
Displays the software version of the user interface.
28.
LIVE LOG PERIOD
Can be utilized with a laptop or PC to display control
functions while unit is running.
ERRORS
*All errors are logged in memory.
*Only door error is displayed on the display and has an
audible signal.
*For 68118 models, pump error is displayed via alert light
with no audible alerts.
E1:Thermistor 1 open.
E2:Thermistor 2 open.
E3:Thermistor 3 open (Does not apply to this model).
E4:Thermistor 4 open (Does not apply to this model).
E5:Thermistor 1 shorted.
E6:Thermistor 2 shorted.
E7:Thermistor 3 shorted (Does not apply to this model).
E8:Thermistor 4 shorted (Does not apply to this model).
E9:Door open error.
Pi:Pump Circuit open.
MODEL LIST
PROGRAMMING THE UNIT TO CORRECT MODEL NUMBER
• Unplug unit and install new board
• Push and hold the hidden icon
•Plug the unit in
• Release the hidden icon
• Use the up/down arrows to scroll to correct model
number from chart
• Push and release the light icon
• Unit flashes OFF/ON up or down then locks in model.
1000 MODEL # 2000 (120V) MODEL # 2000 (230V) MODEL #
1215R 07 2218R 05 2245R 55
1215WC 12 2218RG 04 2245DC 54
1224BEV 13 2218WC 06 2245WC 56
1224DWR 08 2224BEV 00 2260DC 50
1224R 14 2224FZR 11 2260FZR 57
1224RF 09 2224R 02 2260R 52
1224RSOD 10 2224RG 01 2260RDC 51
1224WC 15 2224WC 03 2260WC 53
CLR1215 18 2224ZWC 59 2260ZWC 58
CO1224F 19 ADA24R 17
