U-Line CLR2160 Service Manual

3-58
Section 3 - Service and Repair
REPLACING MOLD AND HEATER
- CO2175F/CO2175DWR
1. Remove ice maker assembly. Refer to Replacing Ice Maker
Assembly.
2. Remove one stripper screw (Figure 61) and stripper.
3. Remove three face plate screws and face plate.
4. Remove one screw and detach limit switch from mold.
5. Detach heater leads.
6. Remove two screws and mold from support housing.
7. To assemble, replace parts in reverse order.
8. Install the ice maker assembly.

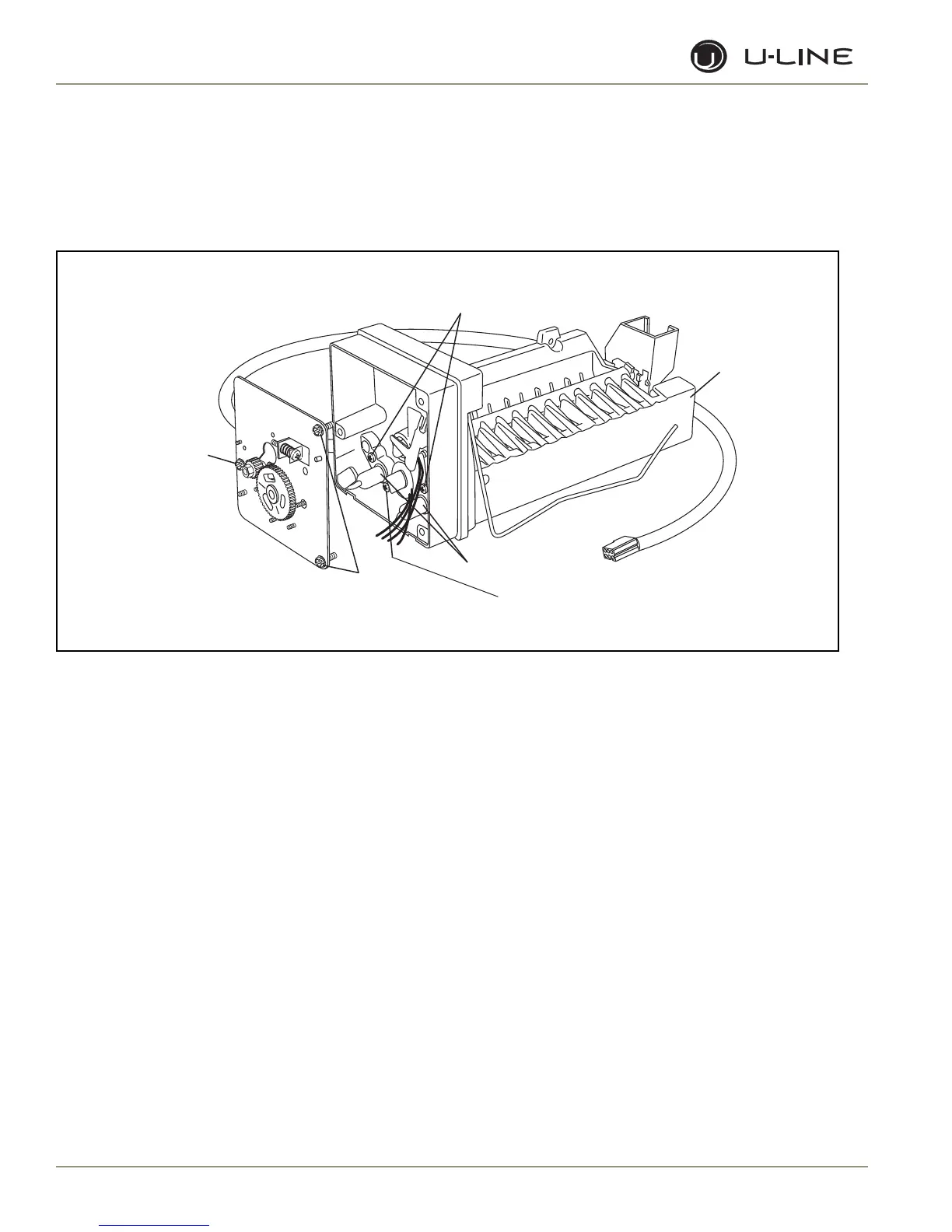

Figure 61
ULIN_0374_A
Face plate
screws
Face plate
screw
Mold and support
housing screws
Heater leads
Limit switch
screw
Stripper
