U-Line CLRCO2075

18
User’s Manual

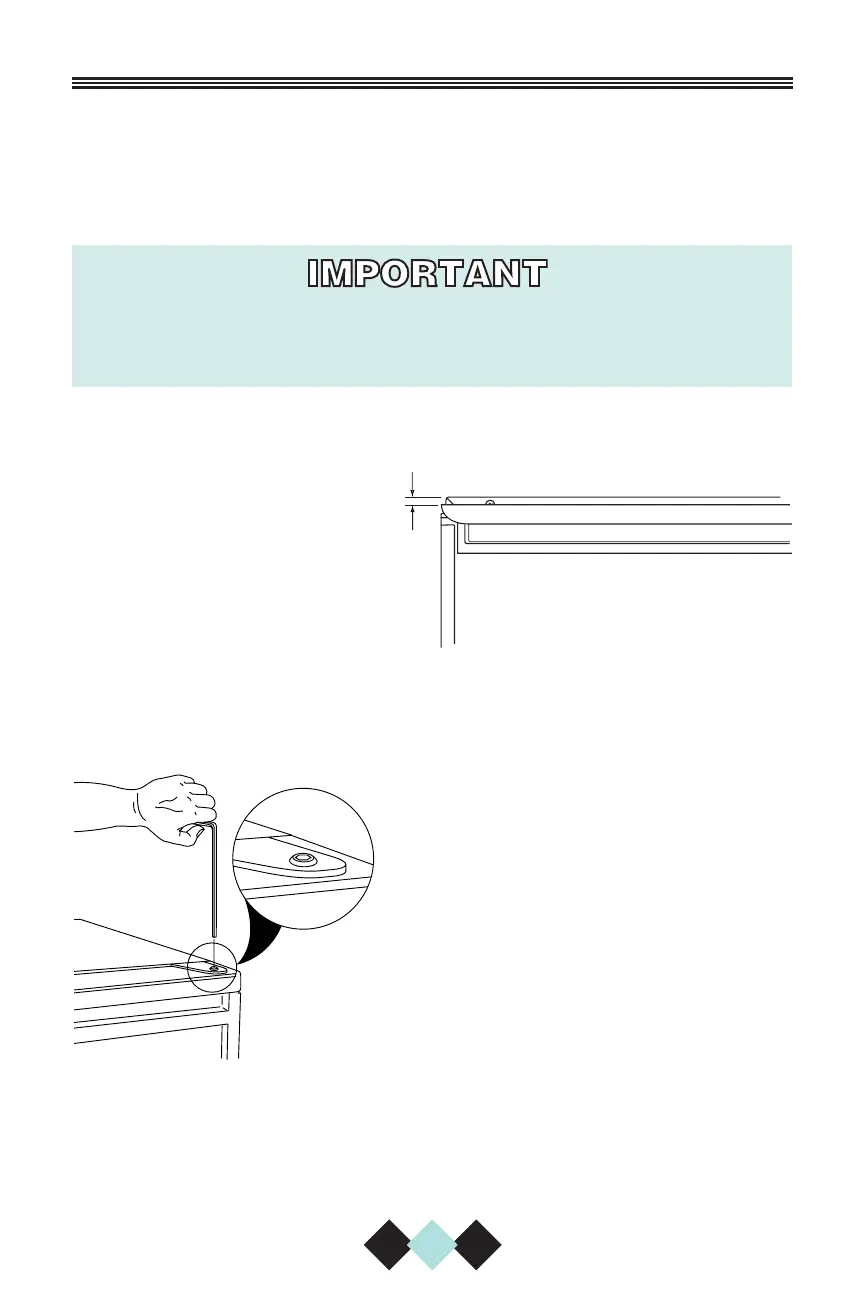

DOOR ADJUSTMENT
Your door is aligned at the factory before shipment. Occasional
re-adjustment may be necessary, especially if an Overlay Panel is
installed. The following procedure will correct for up to 1/4" alignment.
The door should never be flush with the top of the cabinet.
Even when level, the top edge of the door will be 1/8" below
the top of the cabinet (Figure 19).
To adjust :
1. Compare the top edge of
the door (opposite the
hinges) to the top edge of
the cabinet and note the
type (up or down) of
adjustment needed.
2. Remove the top hinge
pivot pin with a 7/64" hex
wrench (Figure 20) and lift
door off bottom hinge pin.
Be careful not to lose door
closers (Figure 22).
3. With door upside-down, loosen
but do not remove the two hinge
plate screws.
1/8"
DOOR001
Figure 19
UL310
Figure 20
