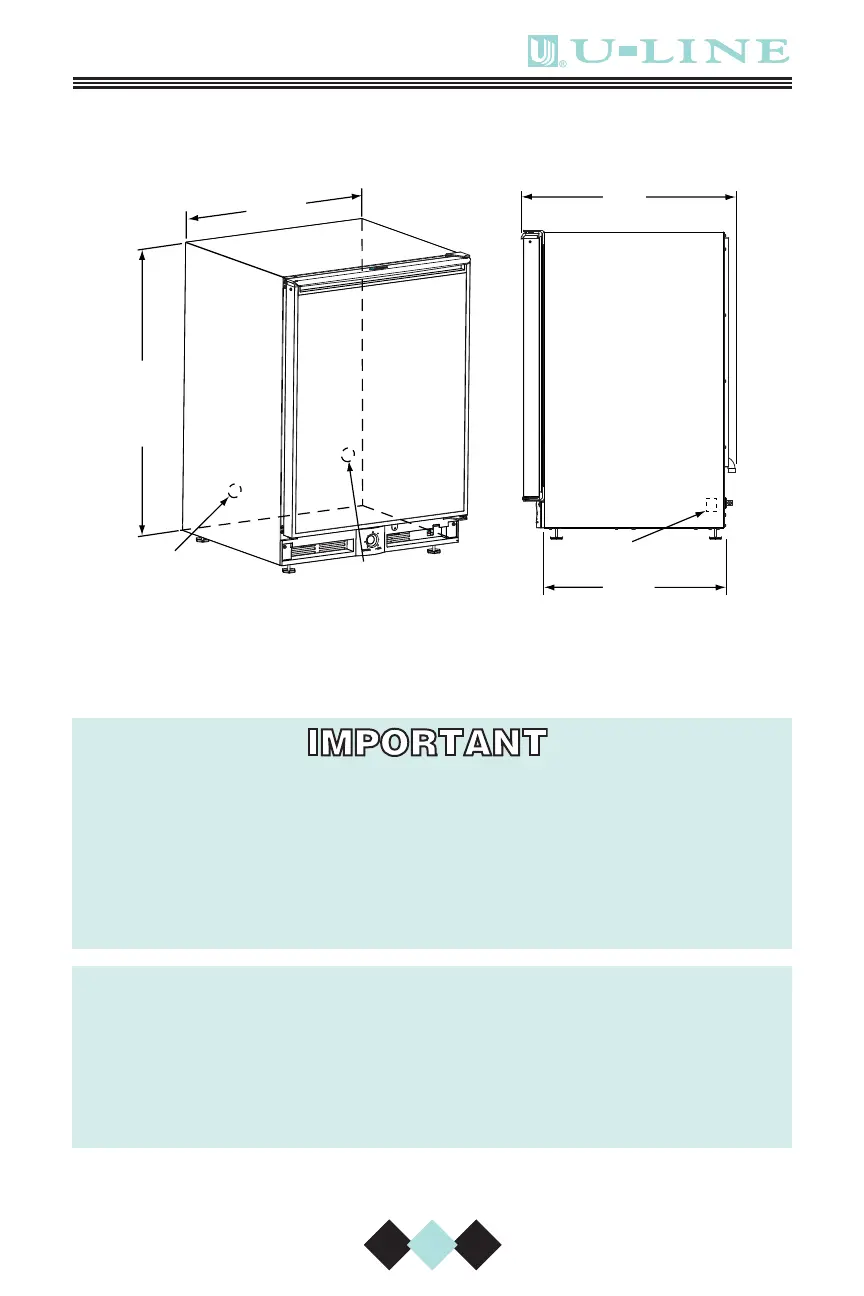

PRODUCT DIMENSIONS
Figure 1
DRAIN INSTALLATION
PLEASE READ all instructions completely before attempting
to install or operate the unit. All Ice Makers require a con-
nection to the water supply and improper hook-up can
result in substantial property damage! All water and drain
connections MUST BE made by a licensed/qualified plumb-
ing contractor. Failure to follow recommendations and
instructions may result in damage and/or harm.
Plumbing installation must observe all state and local
codes. All water and drain connections MUST BE made by
a licensed/qualified plumbing contractor. Failure to follow
recommendations and instructions may result in damage
and/or harm.
CAUTION
CLRCO001
23-15/16"
(60.8)
34-1/8"
(86.7)
FULL
RETRACT
HEIGHT
WATER
CONNECTION
WATER
VALVE
WATER
DRAIN
24"
(61)
21-3/4"
(55.2)
