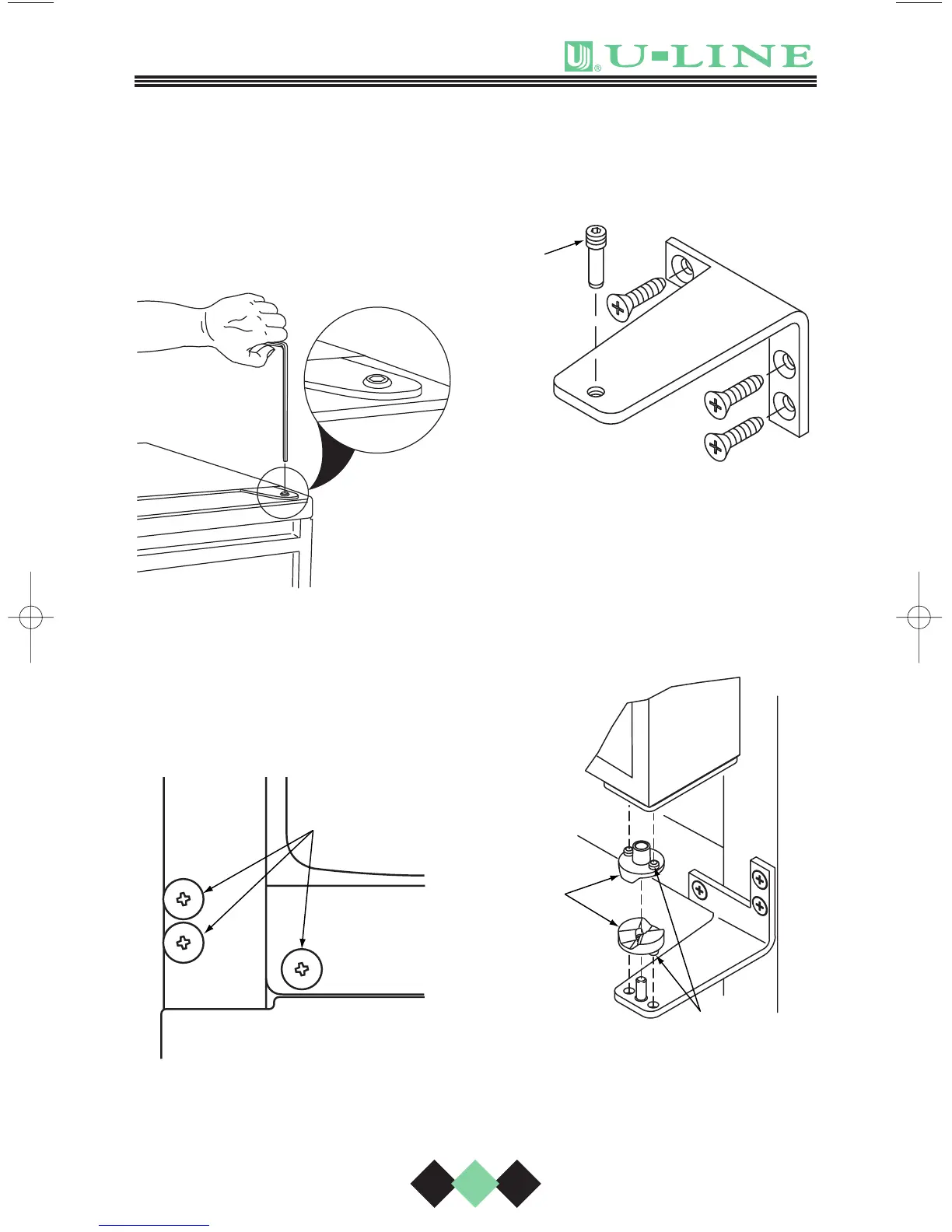

To reverse the door:
1. Remove top hinge screw pin
(7/64" Allen wrench) from
cabinet (see Figure 9). Re-
move door by tilting forward
and lifting off bottom hinge pin.
Figure 9
2. Remove plastic screw plugs
(3 each, top and bottom)
from new hinge location. Do
not discard (see Figure 10).
Figure 10
3. Remove top hinge (3 screws),
reinstall hinge screw pin, and
remount on opposite side
BOTTOM (see Figure 11).
Figure 11
4. Remove the two door closer
plastic inserts from the exist-
ing bottom hinge and install
as shown on the new bottom
hinge (see Figure 12).
Figure 12
