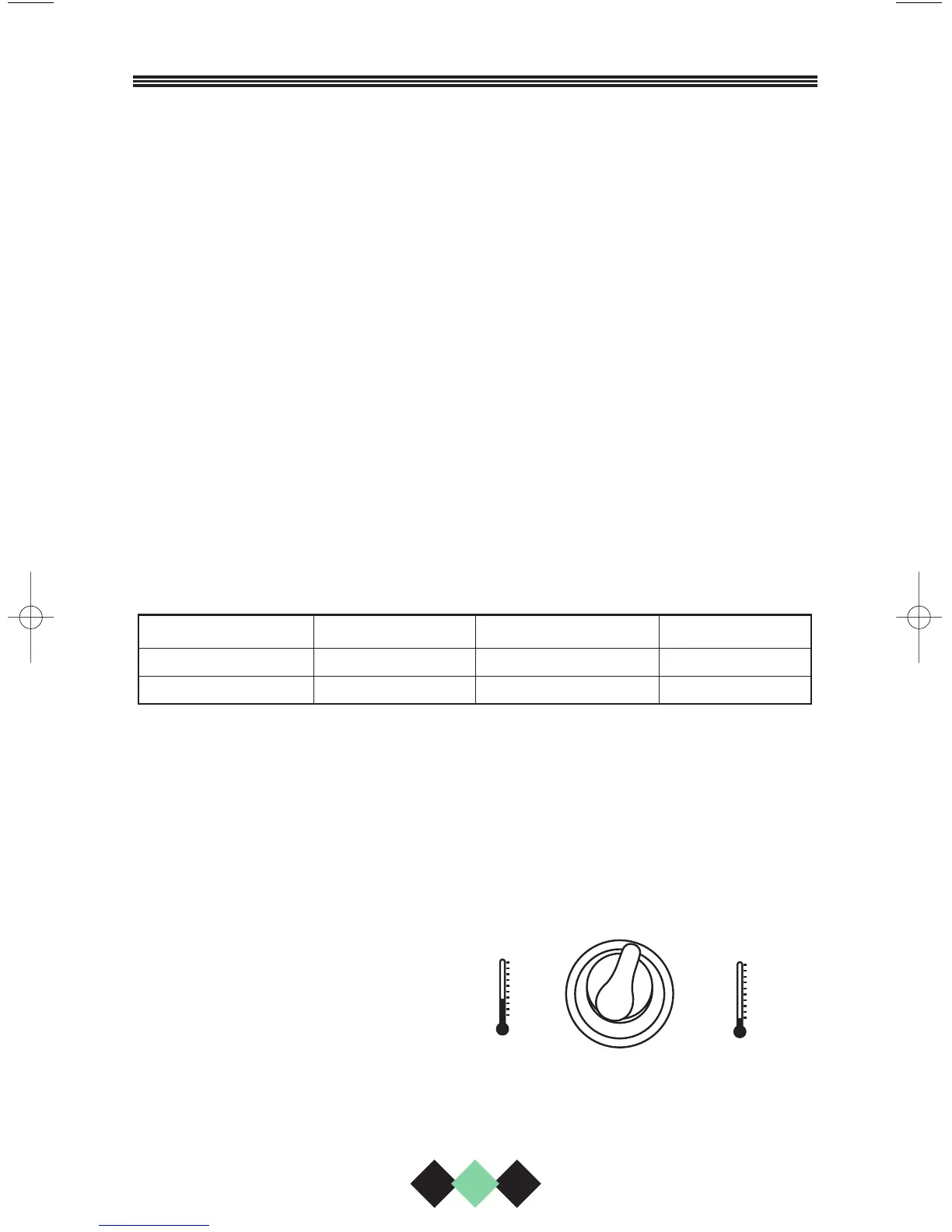

Page #18 background imageLoading...
Page #18 background image
16
User’s Manual
6. Holding door gasket out of the way, replace handle on door mak-
ing sure it is seated properly on insert and that screw holes line
up.
7. Install two small screws removed in step 2.
8. Starting at the corners and working inward, push door gasket into
place on door.
9. Place door on bottom hinge pin and install upper hinge screw.
BUILT-IN INSTALLATION
Your U-Line product has been designed for either free-standing or built-
in installation. When built-in, your U-Line product does not require addi-
tional air space for top, sides, or rear. However, the front grille must
NOT be obstructed.
NOTE
Required for ease of installation, removal and door opening,
you must allow an additional 1/4" to width of unit.
Unit Dimensions
* For full overlay door panels, add 3/4".
INITIAL START-UP
Once installation is complete, the unit is ready for initial start-up and
operation.
CONTROL SETTINGS-COMBO/REFRIGERATOR
Models 2015R, 2075R and
2075RF are turned ON with the
control knob located on the grille.
Turn the knob clockwise for ON,
counterclockwise for OFF. Models
2015R, 2075R and 2075RF
turn OFF when the temperature
control is turned counterclock-
wise all the way toward warmer
until it stops (until “click” is heard).
1
2
3
4
5
6
7
C
O
L
D
E
R
W
A
R
M
E
R
UL315
Model Width Height Depth*
2015 Series 14-15/16" 34-1/8" 24"
2075 Series 23-15/16" 34-1/8" 24"
Figure 20
30-10007_Body_UM.qxd 3/21/05 1:25 PM Page 16
