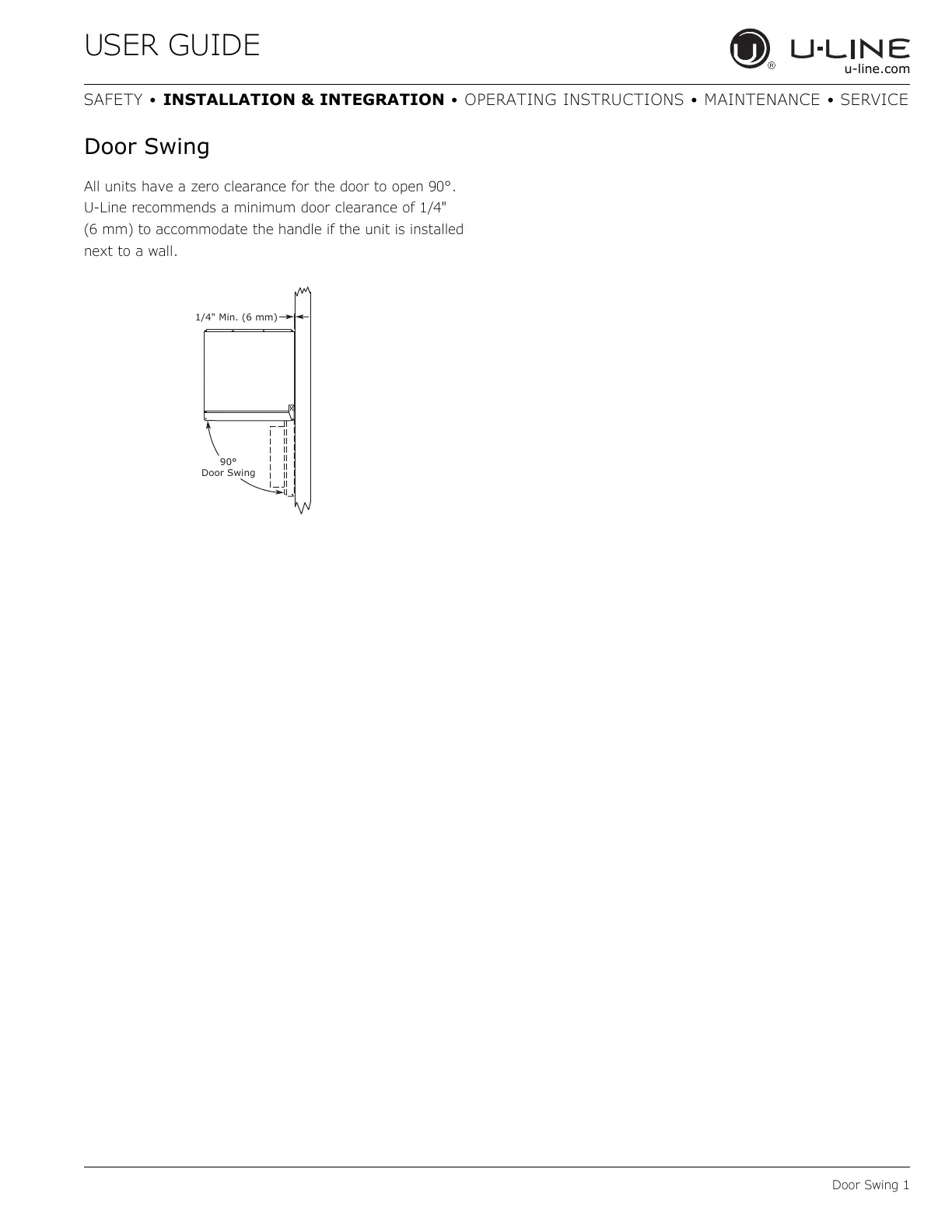

Door Swing
All units have a zero clearance for the door to open 90°.
U-Line recommends a minimum door clearance of 1/4"
(6 mm) to accommodate the handle if the unit is installed
next to a wall.
1/4" Min. (6 mm)
90°
Door Swing
