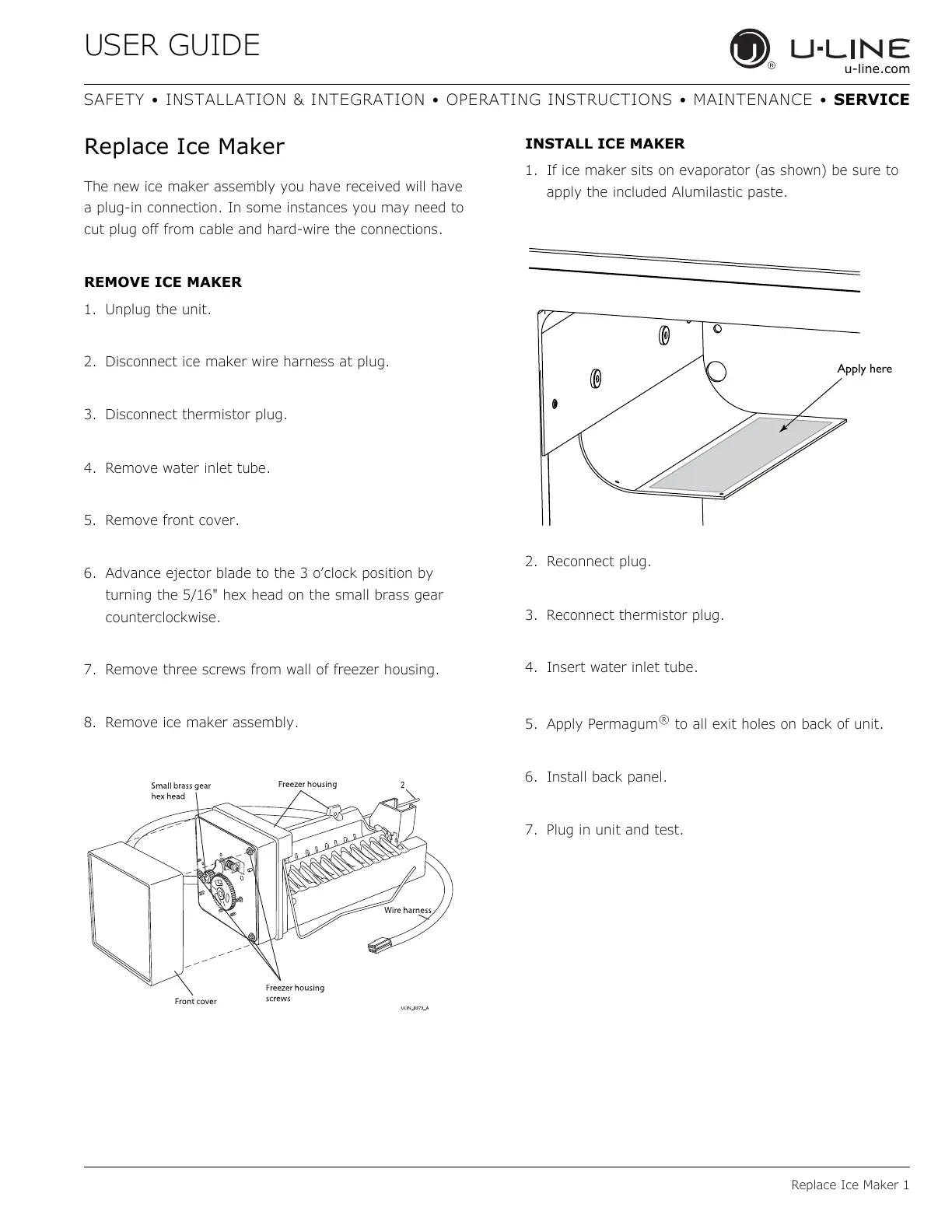

Replace Ice Maker
The new ice maker assembly you have received will have
a plug-in connection. In some instances you may need to
cut plug off from cable and hard-wire the connections.
REMOVE ICE MAKER
1. Unplug the unit.
2. Disconnect ice maker wire harness at plug.
3. Disconnect thermistor plug.
4. Remove water inlet tube.
5. Remove front cover.
6. Advance ejector blade to the 3 o’clock position by
turning the 5/16" hex head on the small brass gear
counterclockwise.
7. Remove three screws from wall of freezer housing.
8. Remove ice maker assembly.
INSTALL ICE MAKER
1. If ice maker sits on evaporator (as shown) be sure to
apply the included Alumilastic paste.
2. Reconnect plug.
3. Reconnect thermistor plug.
4. Insert water inlet tube.
5. Apply Permagum
®
to all exit holes on back of unit.
6. Install back panel.
7. Plug in unit and test.
