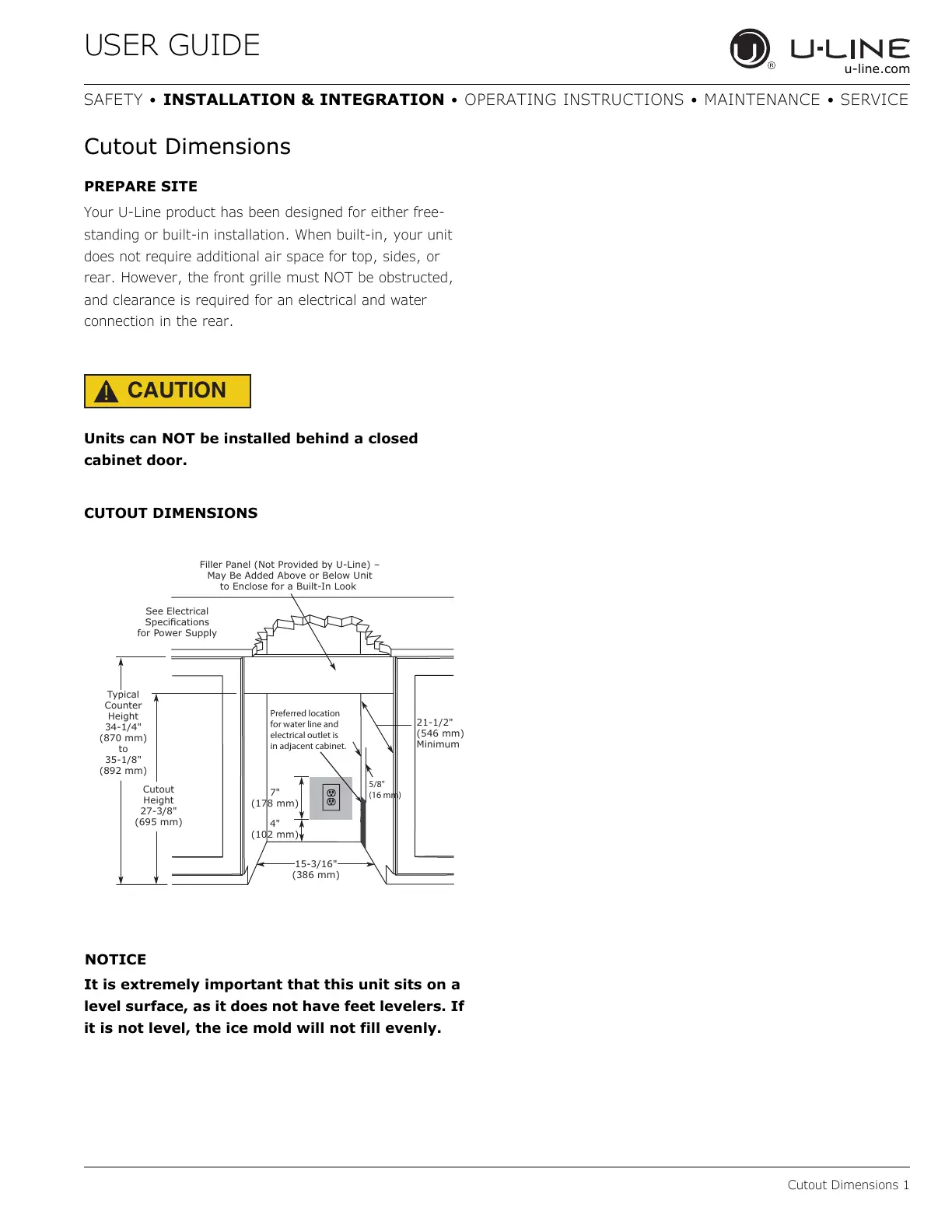

Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical and water
connection in the rear.
CAUTION
!
Units can NOT be installed behind a closed
cabinet door.
CUTOUT DIMENSIONS
NOTICE
It is extremely important that this unit sits on a
level surface, as it does not have feet levelers. If
it is not level, the ice mold will not fill evenly.
Typical
Counter
Height
34-1/4"
(870 mm)
to
35-1/8"
(892 mm)
Cutout
Height
27-3/8"
(695 mm)
Filler Panel (Not Provided by U-Line) –
May Be Added Above or Below Unit
to Enclose for a Built-In Look
15-3/16"
(386 mm)
21-1/2"
(546 mm)
Minimum
See Electrical
6SHFLɟFDWLRQV
for Power Supply
4"
(102 mm)
7"
(178 mm)
Preferred location
for water line and
electrical outlet is
in adjacent cabinet.
5/8"
(16 mm)
