U-Line UHCP115 User Manual

USER GUIDE
u-line.com

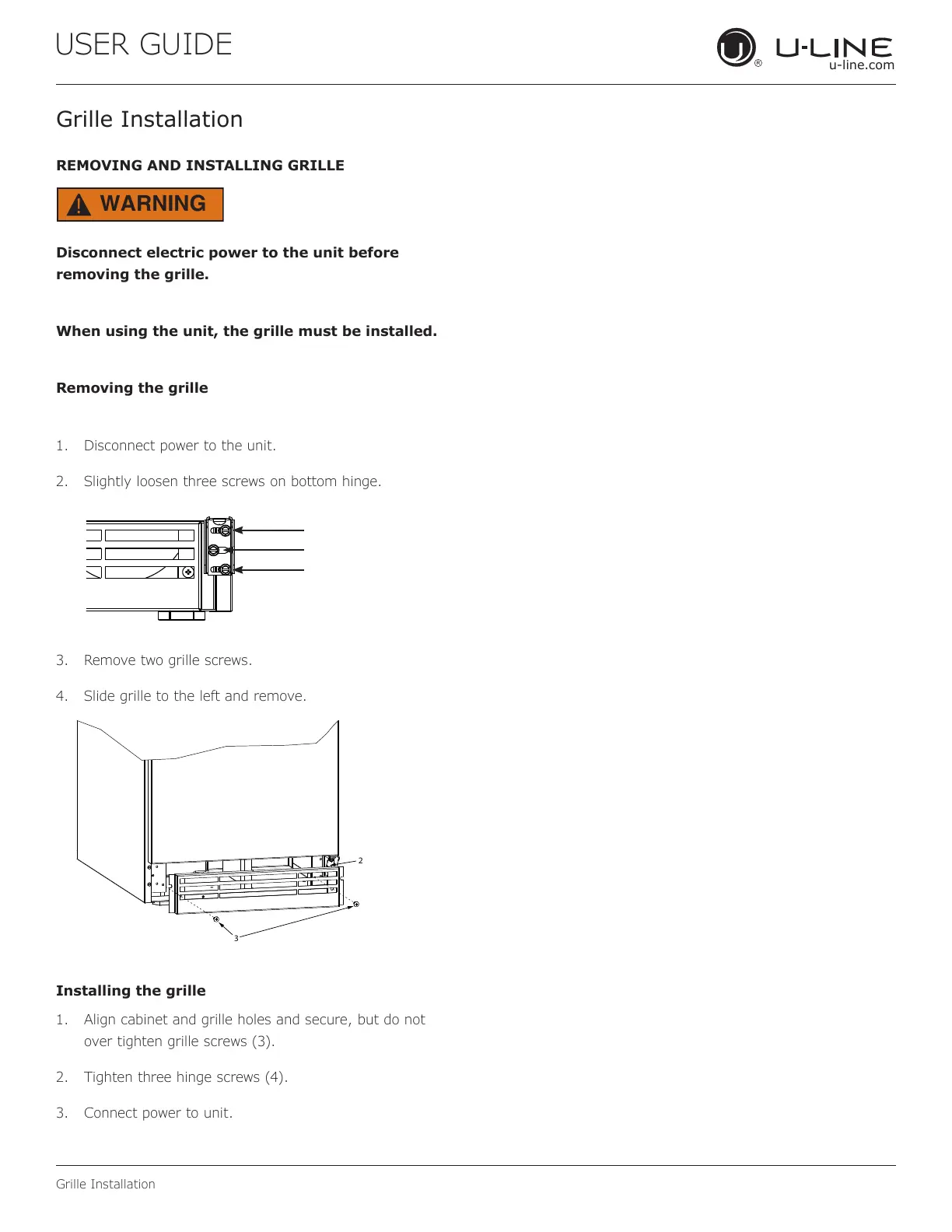

Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Removing the grille
1. Disconnect power to the unit.
2. Slightly loosen three screws on bottom hinge.
3. Remove two grille screws.
4. Slide grille to the left and remove.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (3).
2. Tighten three hinge screws (4).
3. Connect power to unit.
WARNING
!
3
2
16

U-Line UHCP115 Specifications

General

Brand	U-Line
Model	UHCP115
Category	Ice Maker
Language	English
