U-Line UHCP115 User Manual

USER GUIDE

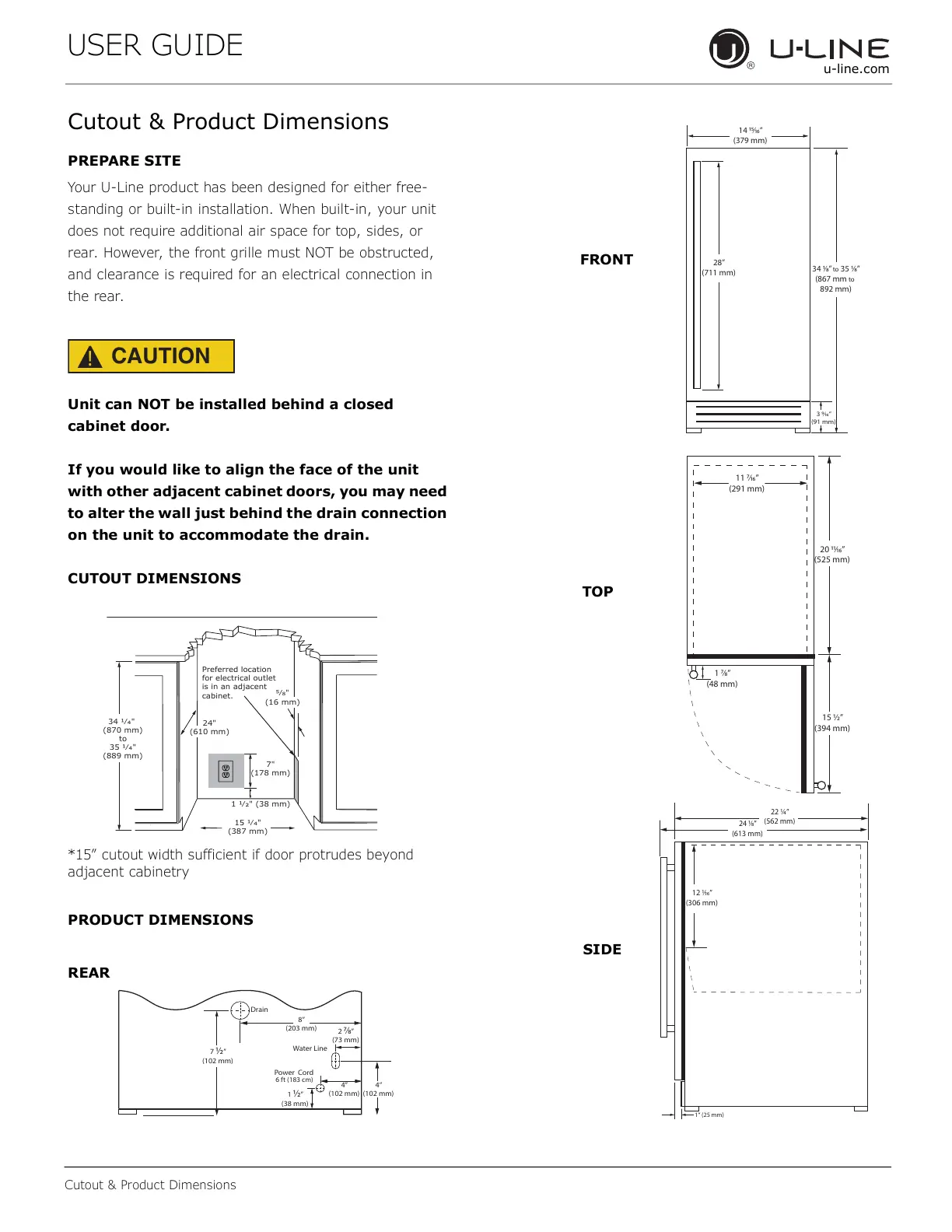

Cutout & Product Dimensions
u-line.com
4”
(102 mm)
1 ½ ”
(38 mm)
2
⁄ ”
(73 mm)
4”
(102 mm)
Drain
Power Cord
Water Line
7 ½ ”
(102 mm)
8”
(203 mm)
6 ft (183 cm)
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed
cabinet door.
If you would like to align the face of the unit
with other adjacent cabinet doors, you may need
to alter the wall just behind the drain connection
on the unit to accommodate the drain.
CUTOUT DIMENSIONS
*15” cutout width sufficient if door protrudes beyond
adjacent cabinetry
PRODUCT DIMENSIONS
REAR
1 ΍ȟȭ" (38 mm)
7"
(178 mm)
15 ΍ȟȯ"
(387 mm)
34 ΍ȟȯ"
(870 mm)
to
35 ΍ȟȯ"
(889 mm)
Preferred location
for electrical outlet
is in an adjacent
cabinet.
24"
(610 mm)
ΑȟΞ"
(16 mm)
14 ⁄”
(379 mm)
3 ⁄”
(91 mm)
28”
(711 mm)
34 ⁄”
to 35 ⁄”
(867 mm
to
892 mm)
1 ⁄”
(48 mm)
11 ⁄”
(291 mm)
15 ½”
(394 mm)
20 ⁄”
(525 mm)
TOP
FRONT
SIDE
12 ⁄”
(306 mm)
22 ¼”
(562 mm)
24 ⁄”
(613 mm)
1“ (25 mm)
8
