U-Line WINE CAPTAIN 2115R Install Guide

Overlay Frame 11
Frame Preparation
2115WCOL 2175WCCOL & 2175BEVCOL Models Only
An overlay frame covers the door frame to give a built-in
appearance. Appropriate hardware and a copy of these
instructions will be included with the unit.
IMPORTANTIMPORTANT
The thickness of the overlay panel must be 3/4”

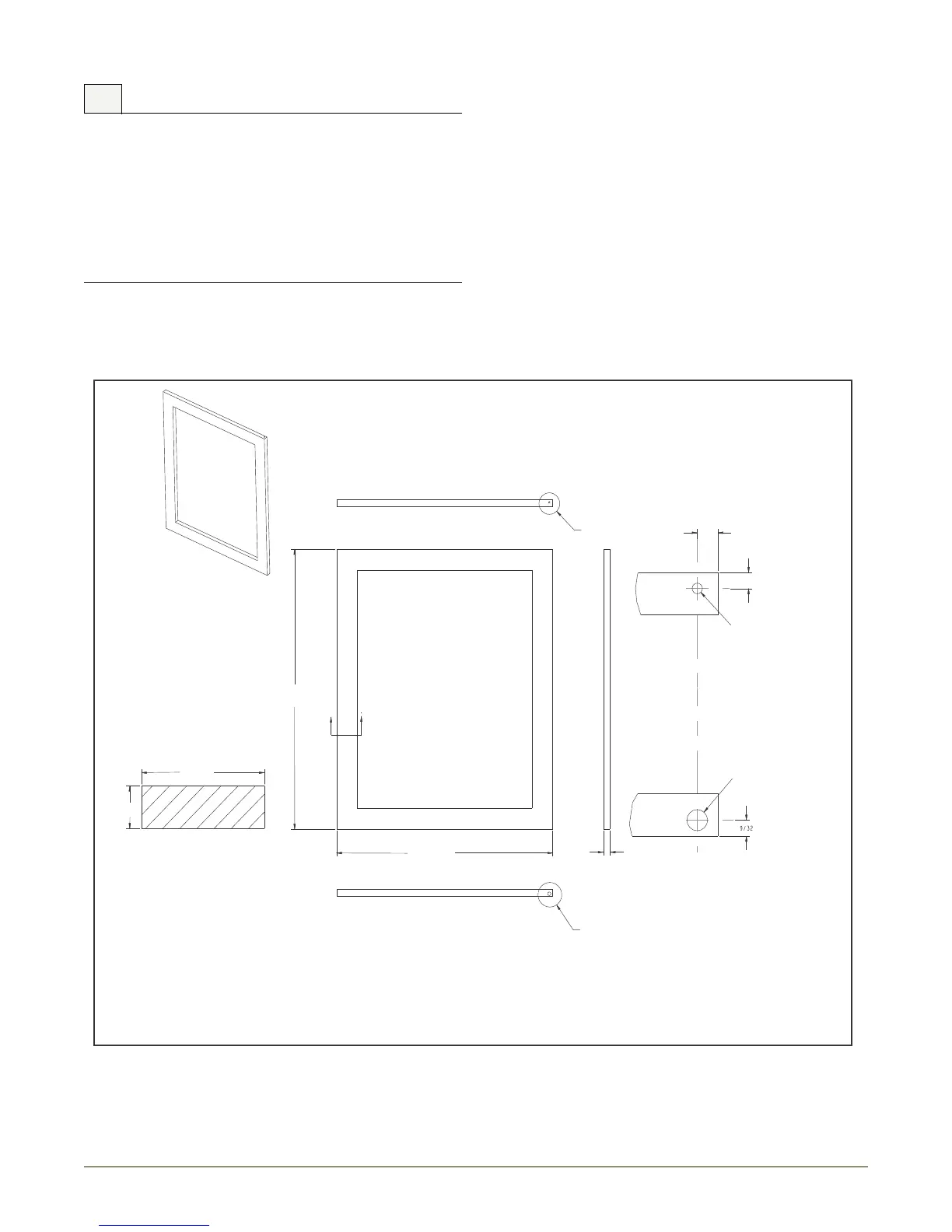

1. Use the following instructions to create or have a wood
overlay panel created for you Wine Captain® or beverage
Center model as shown below.
2. Drill holes for pivot pins, upper door hinge and lower door
hinge as shown
10 Overlay Frame
9/32
Dim A: 23-3/4”
2275WCOL
2175WCOL2
2175BEVOL2
Dim A: 14-3/4”
2115WCOL2
See Detail C
3/4”
Detail C
Scale 2:1
Door bottom
Ø 3/8” x 1/4” deep
Chamfer 1/32” x 45°
Detail A
Scale 2:1
Door top
Ø 3/16” x 11/16” deep
9/32”
3/8”
See Detail A
29-3/4”
NOTE: Front view of
wood panel with
right-hand hinge shown
(mirror image
for left-hand hinge)
Section A-A
Scale 2:1
Typ 4 places
NOTE: Final component
is only a picture frame.
No panel inside of rails
and stiles.
Right-hand
isometric view
shown.
Opposite
for left-hand
A
A
Dim. A
3/4”
2-1/4”
ULIN_1024_A
