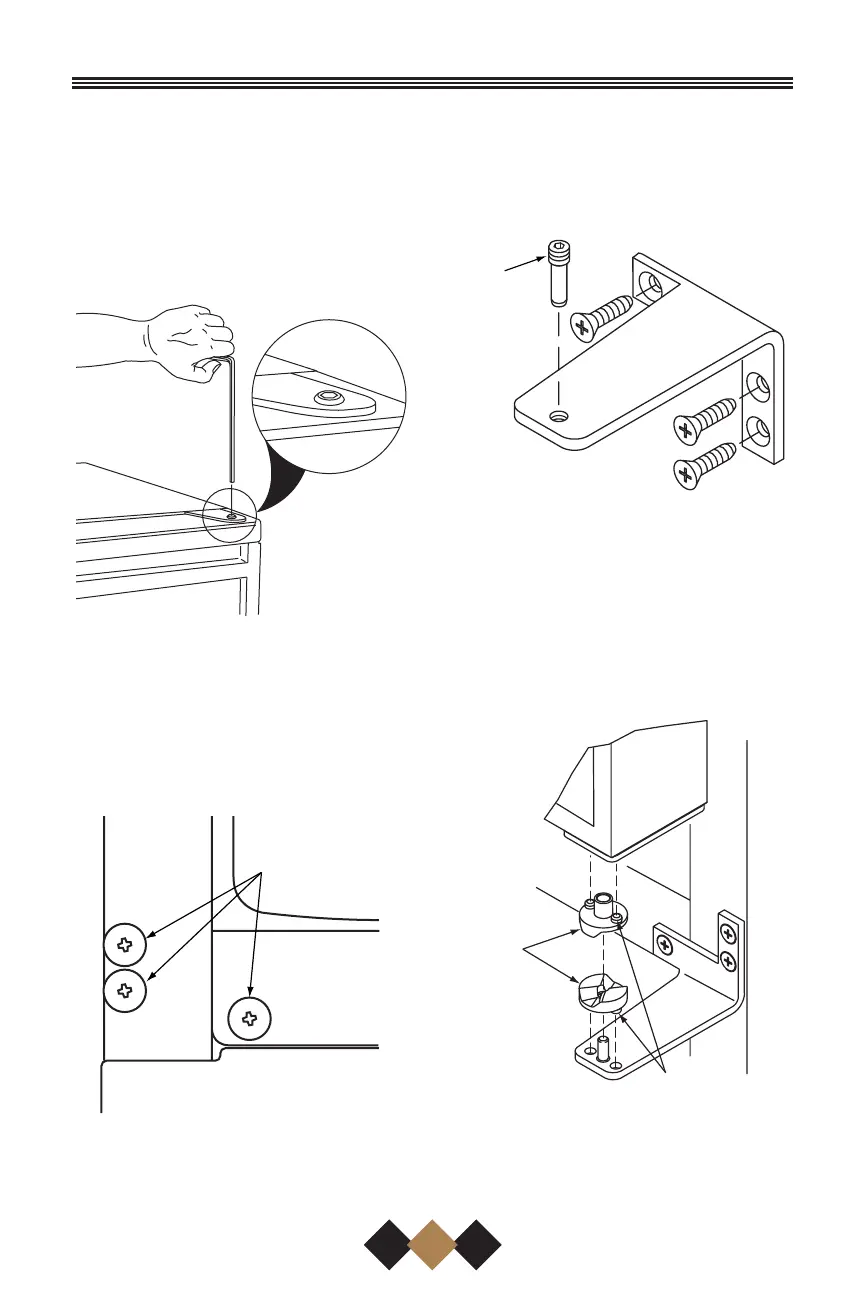

To reverse the door:
1. Remove top hinge screw pin
(7/64" Allen wrench) from
cabinet (see Figure 6).
Remove door by tilting forward
and lifting off bottom hinge pin.
Figure 6
2. Remove plastic screw plugs
(3 each, top and bottom)
from new hinge location. Do
not discard (see Figure 7).
Figure 7
3. Remove top hinge (3 screws),
reinstall hinge screw pin, and
remount on opposite side
BOTTOM (see Figure 8).
Figure 8
4. Remove the two door closer
plastic inserts from the exist-
ing bottom hinge and install
as shown on the new bottom
hinge (see Figure 9).
Figure 9
UL312
DOOR
CLOSERS
BOSS
UL313
HINGE
SCREW
PIN
UL308
PLASTIC
PLUGS
UL310
14
User’s Manual
