Screw A
Screw A

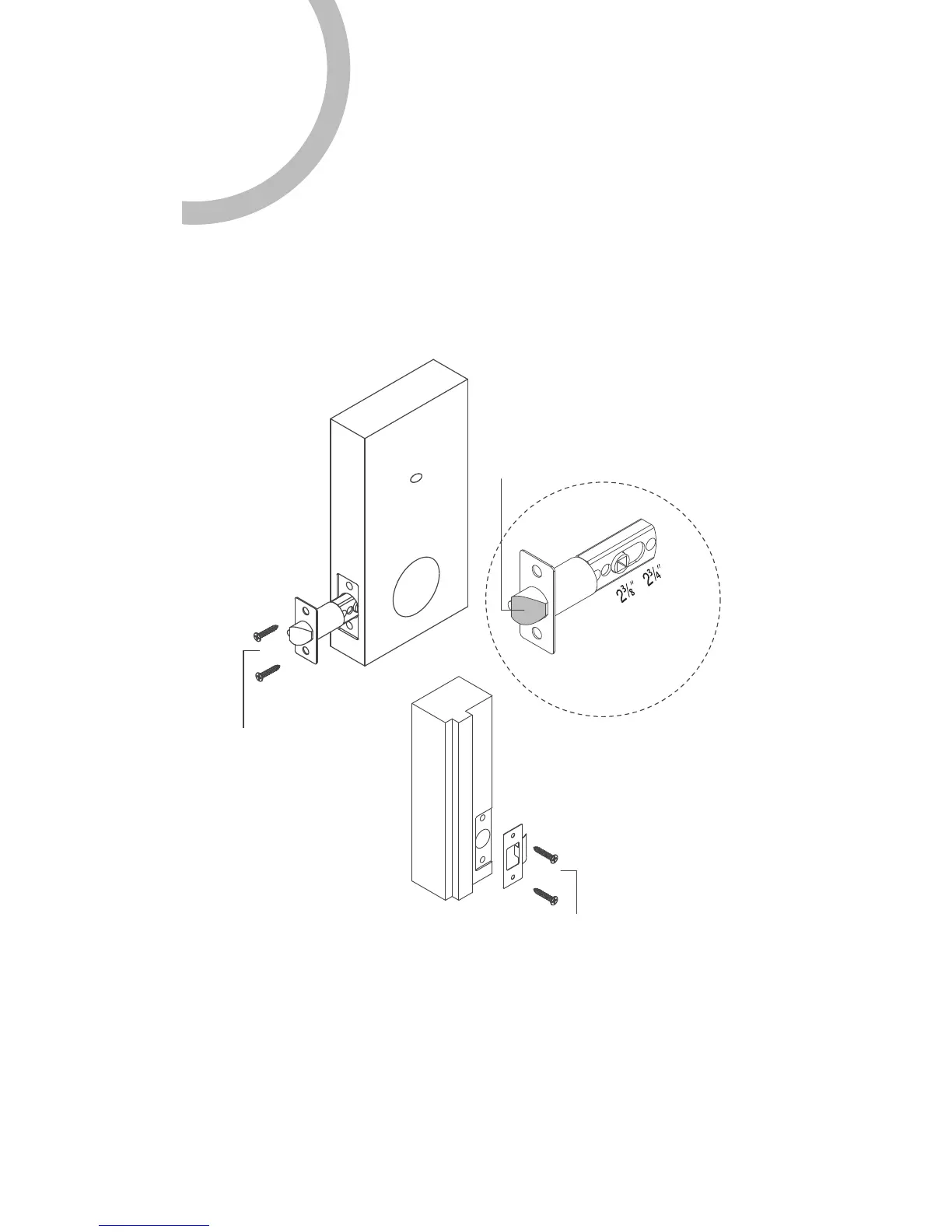

Installing Latch and Strike
Before installing the lock on the door
- 5 -
60~70mm
Adjust the latch
basket length
Angle faces jamb
1. Install latch on the door. Make sure the latch
angle faces door jamb.
2. Install the strike on the door frame, ensuring you
allow for the bolt to be centered in the strike.
1. Loosen the screw holding the battery cover.
2. Slide the battery cover up and out (note the two tabs at the
bottom of the battery cover).
3. Remove the inside mounting plate (with gasket) from the
back (door side) of the interior assembly.
