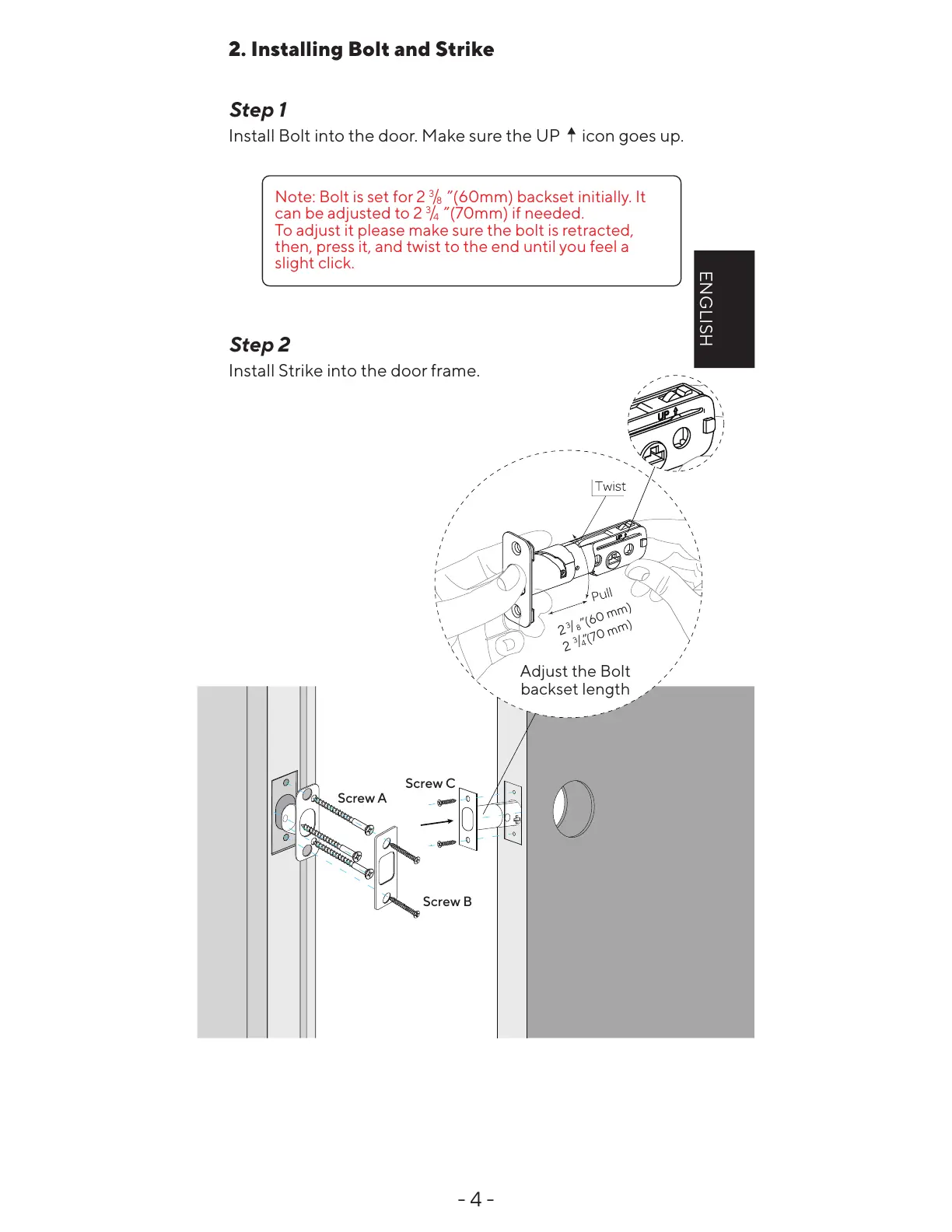

2. Installing Bolt and Strike
Note: Bolt is set for 2
3
/
8
”(60mm) backset initially. It
can be adjusted to 2
3
/
4
”(70mm) if needed.
To adjust it please make sure the bolt is retracted,
then, press it, and twist to the end until you feel a
slight click.
Step 2
Install Strike into the door frame.
Step 1
Install Bolt into the door. Make sure the UP icon goes up.
2
3
/
8
”
2
3
/
4
”
(60 mm)
(70 mm)
Adjust the Bolt
backset length
Screw A
Screw C
Screw B
