115
Chapter 10. SPECIAL TOOLS AND APPLIANCES
Each new vehicle, delivered from the manufacturing plant,
is equipped with a set of tools and appliances according to the
list applicable to the vehicle.
Jack (Fig. 10.1 or 10.2) is designed to jack up the vehicle
wheels during its maintenance or repair. The jack load-lifting
capacity is 2 tons. The maximum height of lifting shown on Fig.
10.1 — 240 mm, on Fig. 10.2 — 295 mm.

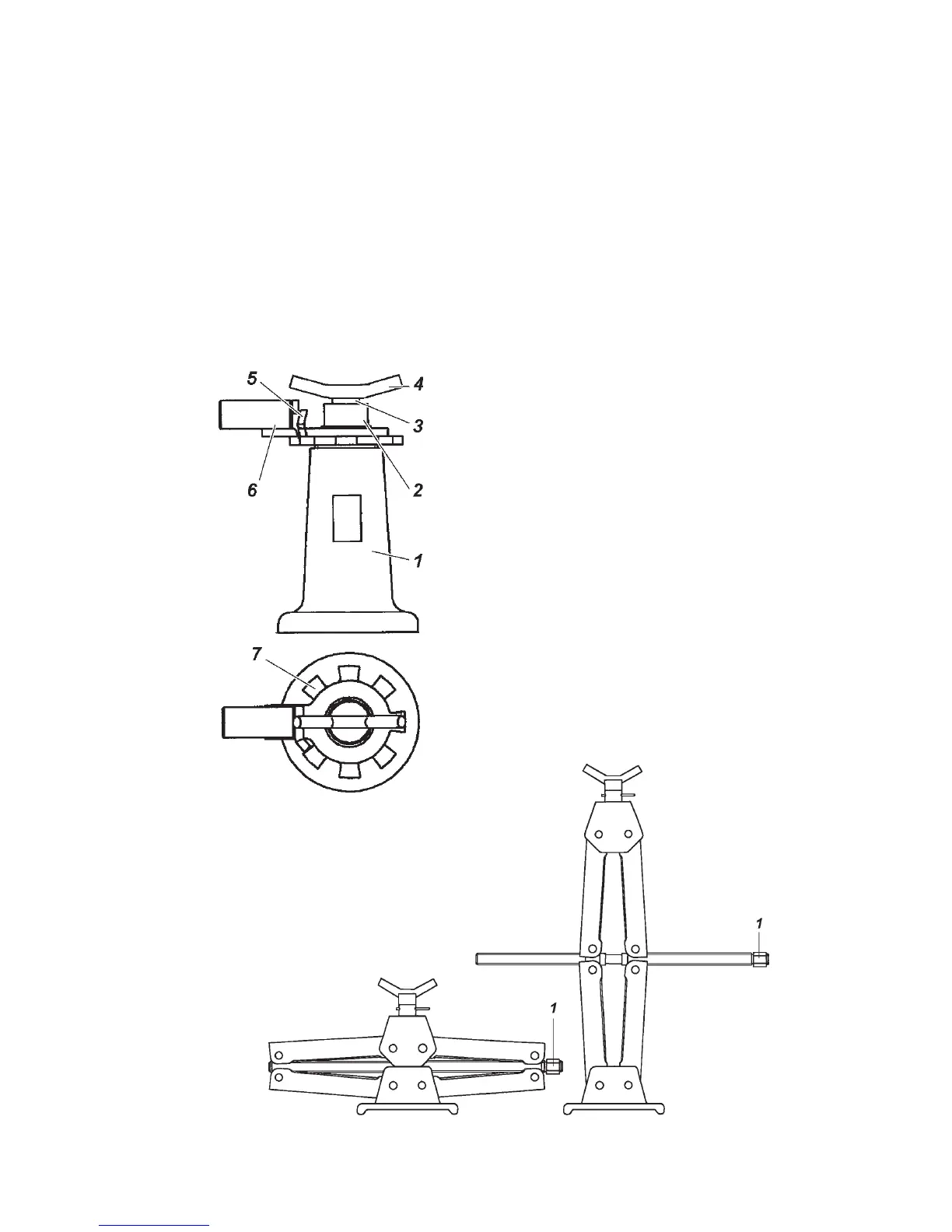

Fig. 10.1 Jack:
1 — housing; 2 — external screw;
3 — internal screw; 4 — head;
5 — pawl; 6 — handle; 7 — ratchet
Fig. 10.2 Jack:
1 — hexagon for wrench "22"
