174
ELECTRIC EQUIPMENT
Relay and fuse boxes
All the discharge and control relays of the motor vehicle elec-
tric equipment, as well as the fuses, are installed in relay and fuse
boxes in the cabin and engine compartment of the motor vehicle.
The cabin relay and fuse box is located under the cap on
the instrument panel, left from the steering column (Fig. 9.29).
The scheme of relays and fuses is located on the inner side of
the box cap.

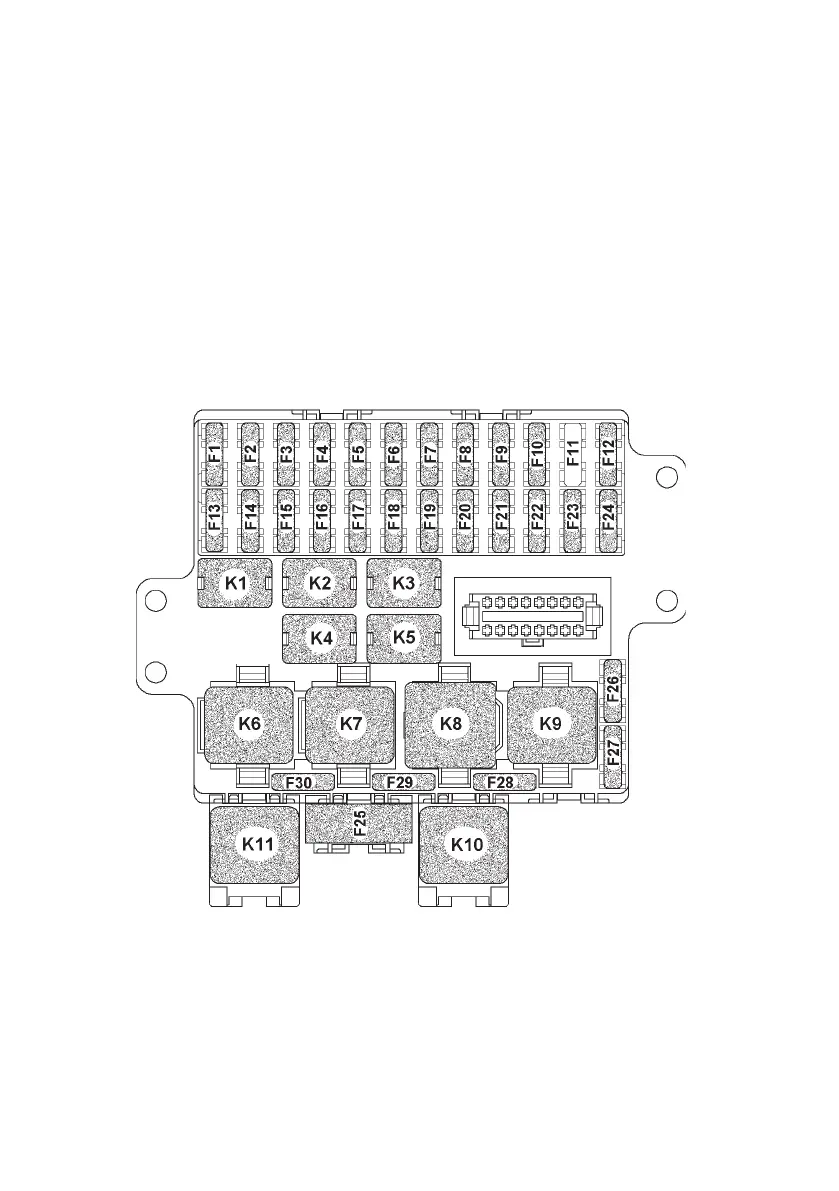

Fig. 9.29. Relay and fuse box in motor vehicle cabin:
K1 — fog lamps switch relay; K2 — high beam switch relay; K3 — additional interior
heater relay: K4 — low beam switch relay; K5 — air conditioner compressor relay;
K6 — tail gate window and mirrors heater switch relay; K7 — intermittent wiper; K8 —
additional (discharge) relay; K9 — windshield heater relay; K10 — windshield heater
timer relay; K11 — rear axle differential lock relay; F1–F25 — fuses (see the table).
