180

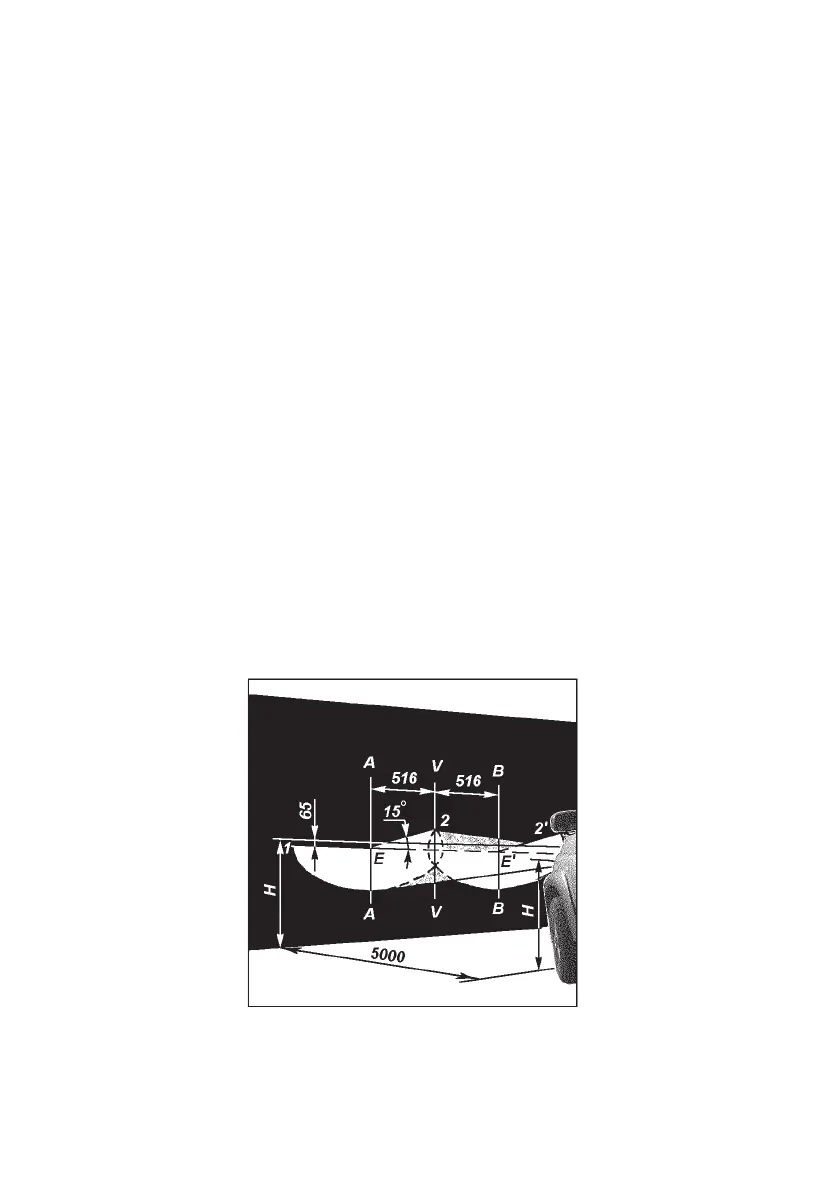

Fig. 9.32. Screen marking for headlights adjustment:
H — distance between the headlights center and the ground level; V–V — motor
vehicle longitudinal axis projection; A–A, B–B — axes of headlights centers.
WARNING! It is prohibited to move the motor vehicle with
the starter motor. The starter motor should work no more than 10
seconds uninterruptedly. Turn on the starter motor again after min.
1 minute, no more than 3 times. If the engine cannot be started,
nd and eliminate the malfunction.
Lighting system, light and audio alarm
Lamp maintenance consists in its adjustment and replacement
of bad ones.
Adjust the headlights as follows:
1. Park the motor vehicle, which should have a full fuel tank,
its curb weight, normal tires pressure and loaded driver’s seat
(750 N/75 kgf), on an even level ground 5 meters far from the
screen with special markings (Fig. 9.32).
2. Move control 3 (see Fig. 3.4) of headlight adjuster to 0 position.
3. Switch on low beam and, closing each headlight in turn,
rotate adjusting screw 1 (Fig. 9.33) and adjusting gear 2, so that
cutoff line from E and E′ points on the left coincides with line 1
and on the right coincides with lines 2 and 2′ for the left and right
headlights respectively.
