Window Slider Kit Installation
The window slider kit can be installed horizontally or vertically according to your window
Firstly, connect one end of the exhaust hose into window connector one end in main unit
connector. Secondly install the unit connector end into the back of machine, install the

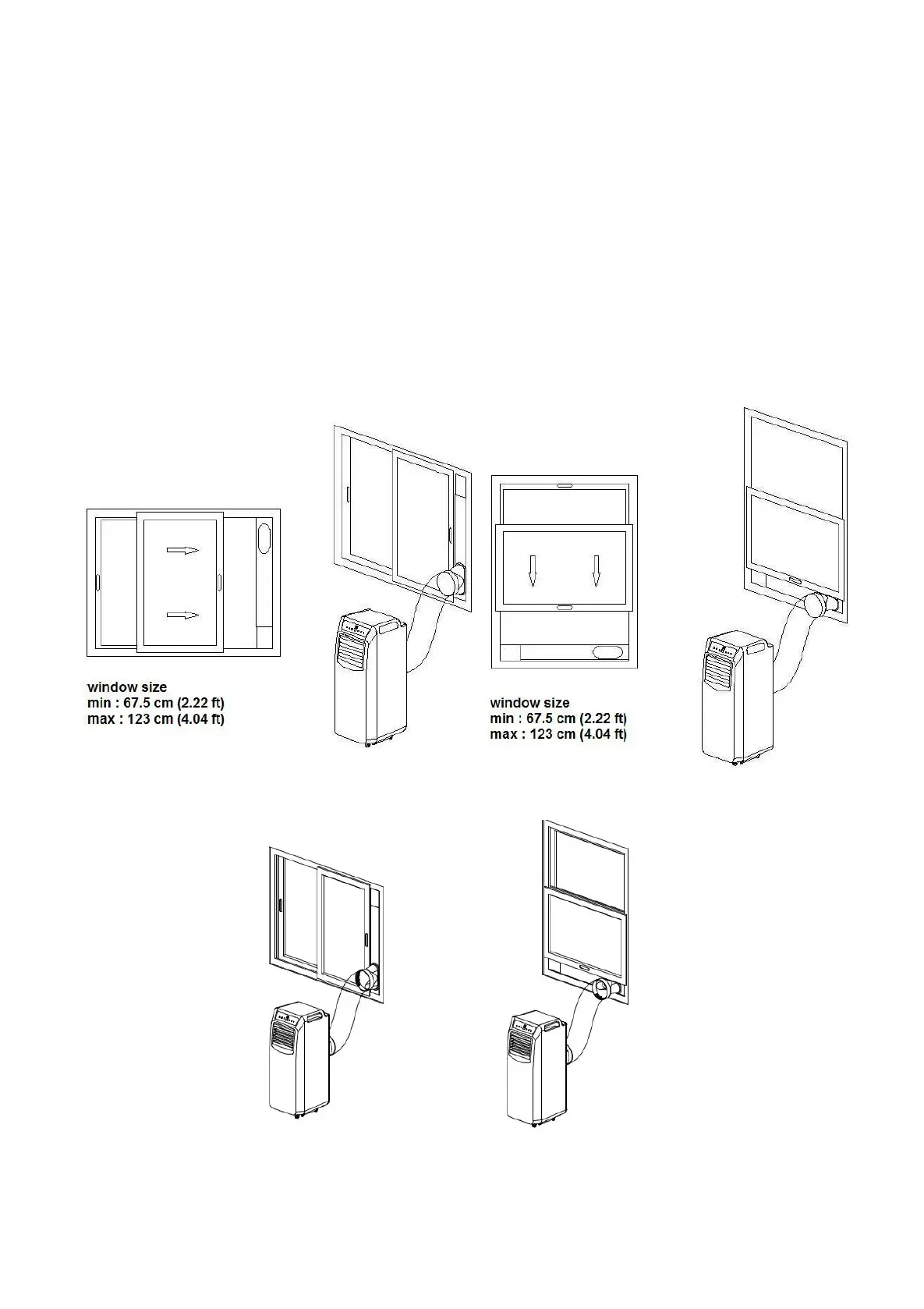

window connector end into the window kit. Check to make sure that your window size meets
the minimum or maximum size as shown in Figure 7 and 7a below. Lastly adjust the window
position well and install the window kit into the window. The window kit only needs to be
secured in the window - no screws or bolts are required. Final installation is shown in Fig.8
(vertical installation and horizontal installation)
Fig.8
